Ball Valve ½" PN32
Details
Two piece, full bore, RG5 body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.
More Information
Price View | Price Range |
---|---|
Product Group | 443024 |
Material Body | Bronze |
Min temperature | -10°C |
Throughput Direction | Straight |
End Standard | ISO 228-1 |
Standard | DIN |
Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
Size | 15 |
Material Seat | PTFE |
Pressure Rating | PN32 |
End Type | Threaded |
Sub Category | BALL |
Item Number | M80523 |
Category | Valve |
Execution | Full Bore |
Max temperature | +120°C |

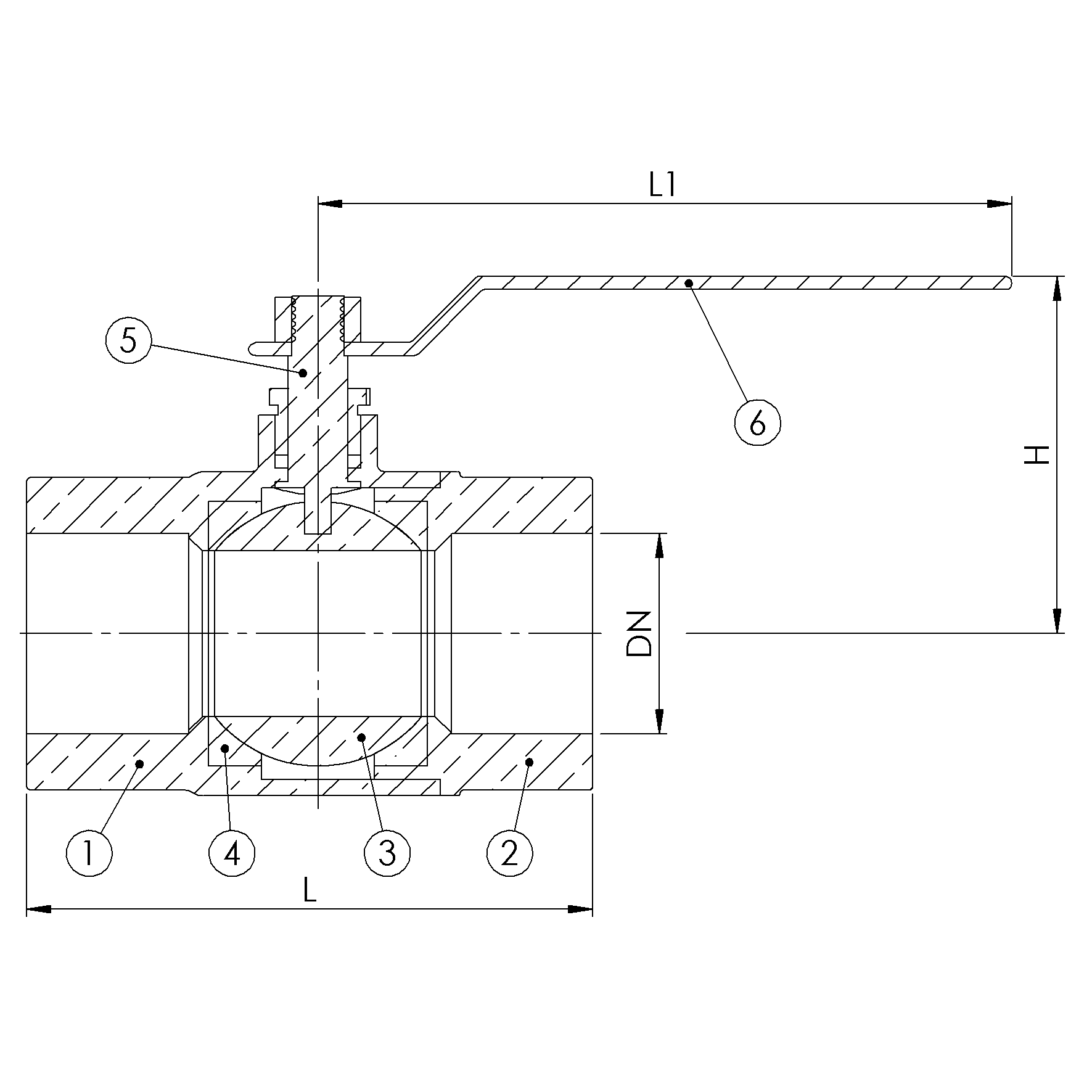

Partslist and details
PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Bronze | CC 491K |
2 | Cap | Bronze | CC 491K |
3 | Ball | Brass, Chrome-Plated | CW 617N |
4 | Seat | PTFE | |
5 | Stem | Brass | CW 617N |
6 | Handle | Stainless Steel, Plastic Cover | 1.4016 |
DETAILS
DN | Pressure Rating Id | L | Kg | L1 | Inch | H |
---|---|---|---|---|---|---|
15 | 32 | 62 | 0.3 | 85 | 1/2" | 45 |
