Ball Valve DN80 PN40

Straight type
Item No.
20-00000433
Details

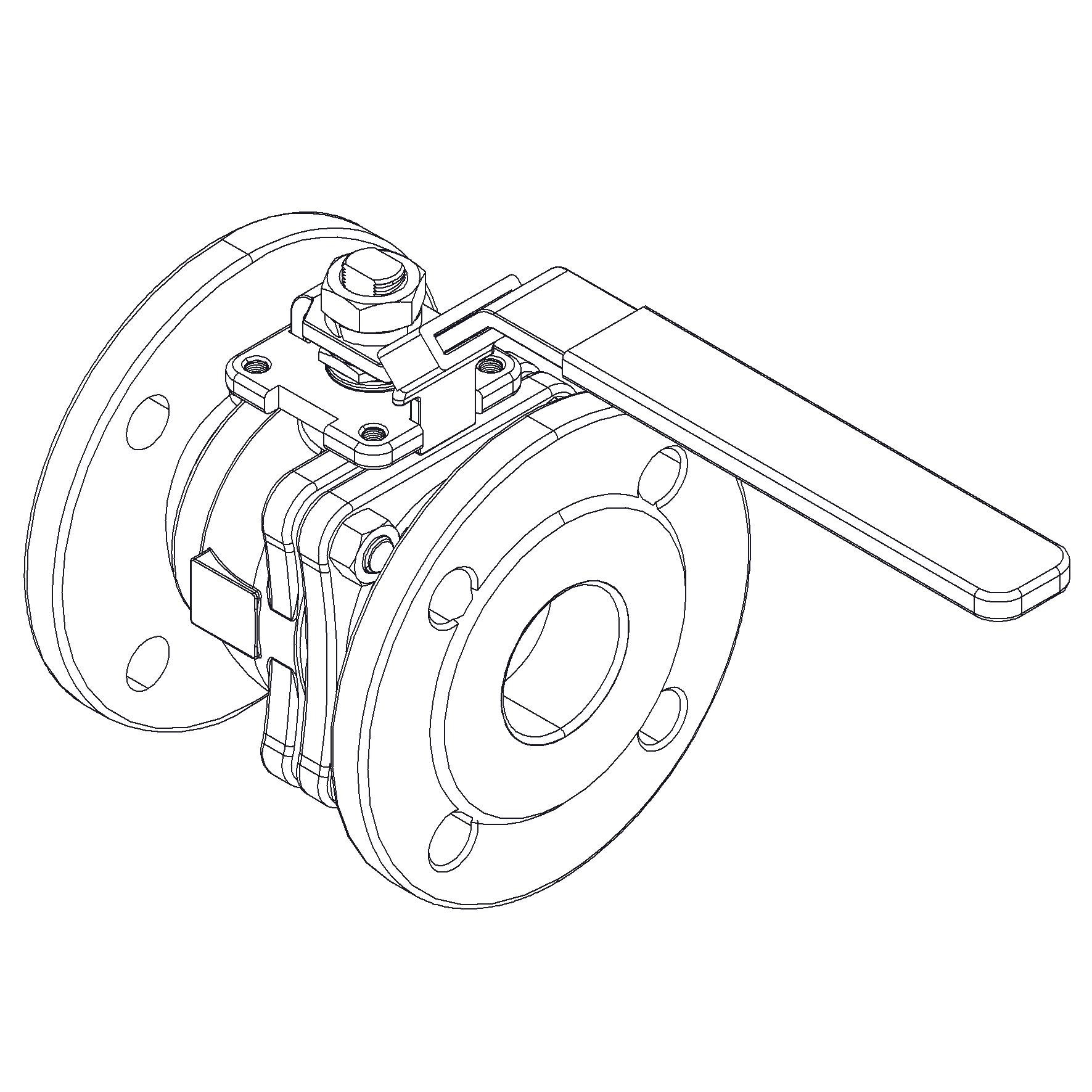

Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
More Information
More Information
Product Group 445194
Remark Connection: PN40
End Standard DIN 2635
Face To Face Standard EN 588, series 14
Inspection Standard EN 12266
Execution Full Bore
Top Flange Standard ISO 5211 - F10
Throughput Direction Straight
End Type Flanged
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fliud, Sea water, Water
Size 80
Material Seat PTFE
Material Body Stainless Steel, 316
Sub Category BALL
Item Number 20-00000433
Category Valve
Pressure Rating PN40
Partslist and details

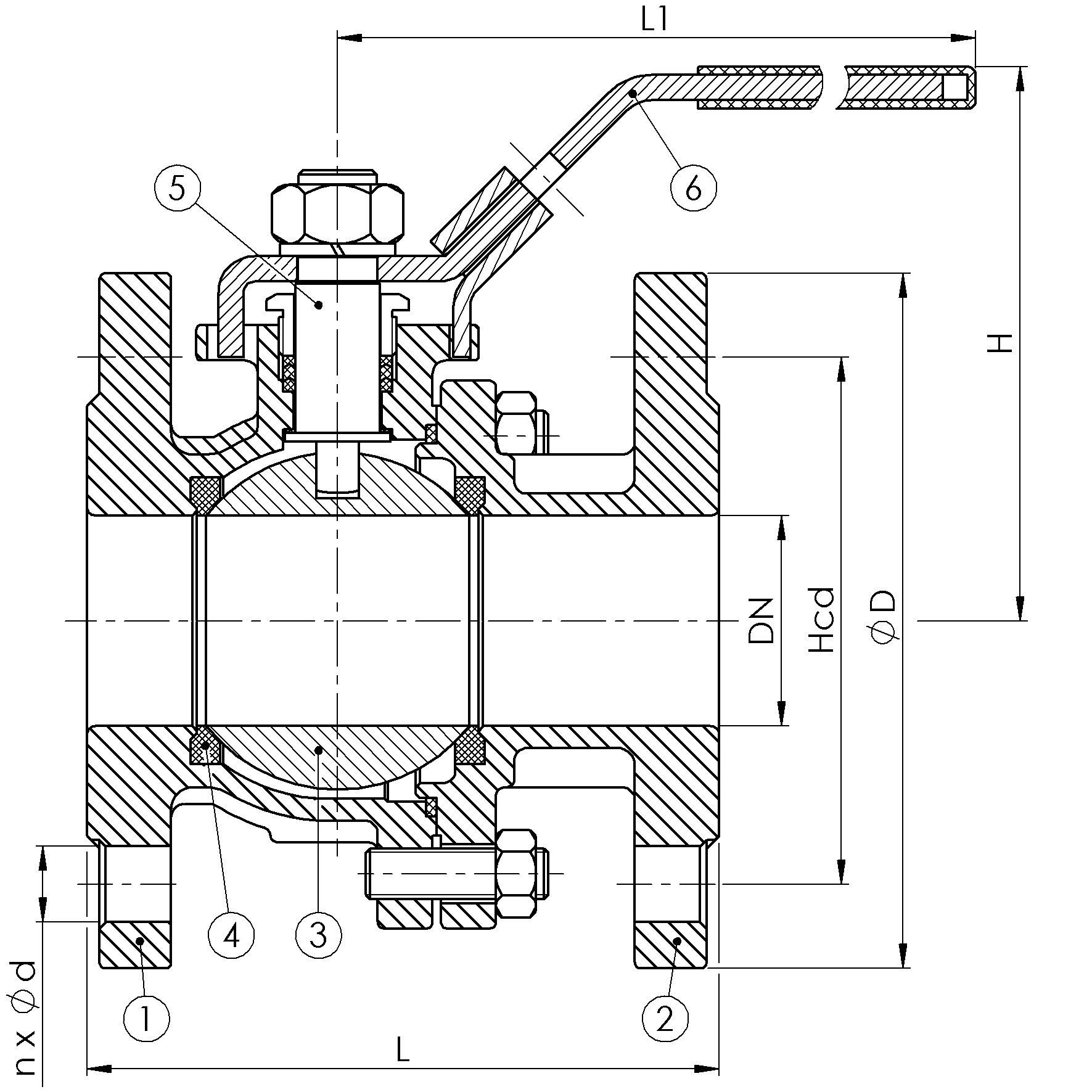

PARTSLIST
No Part Material Code
1 Body Stainless Steel 1.4408
2 Cap Stainless Steel 1.4408
3 Ball Stainless Steel 1.4408
4 Seat PTFE
5 Stem Stainless Steel SUS316
6 Handle Stainless Steel, Plastic Cover SUS304


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H
80 40 8x18 160 200 180 19.3 288 176
