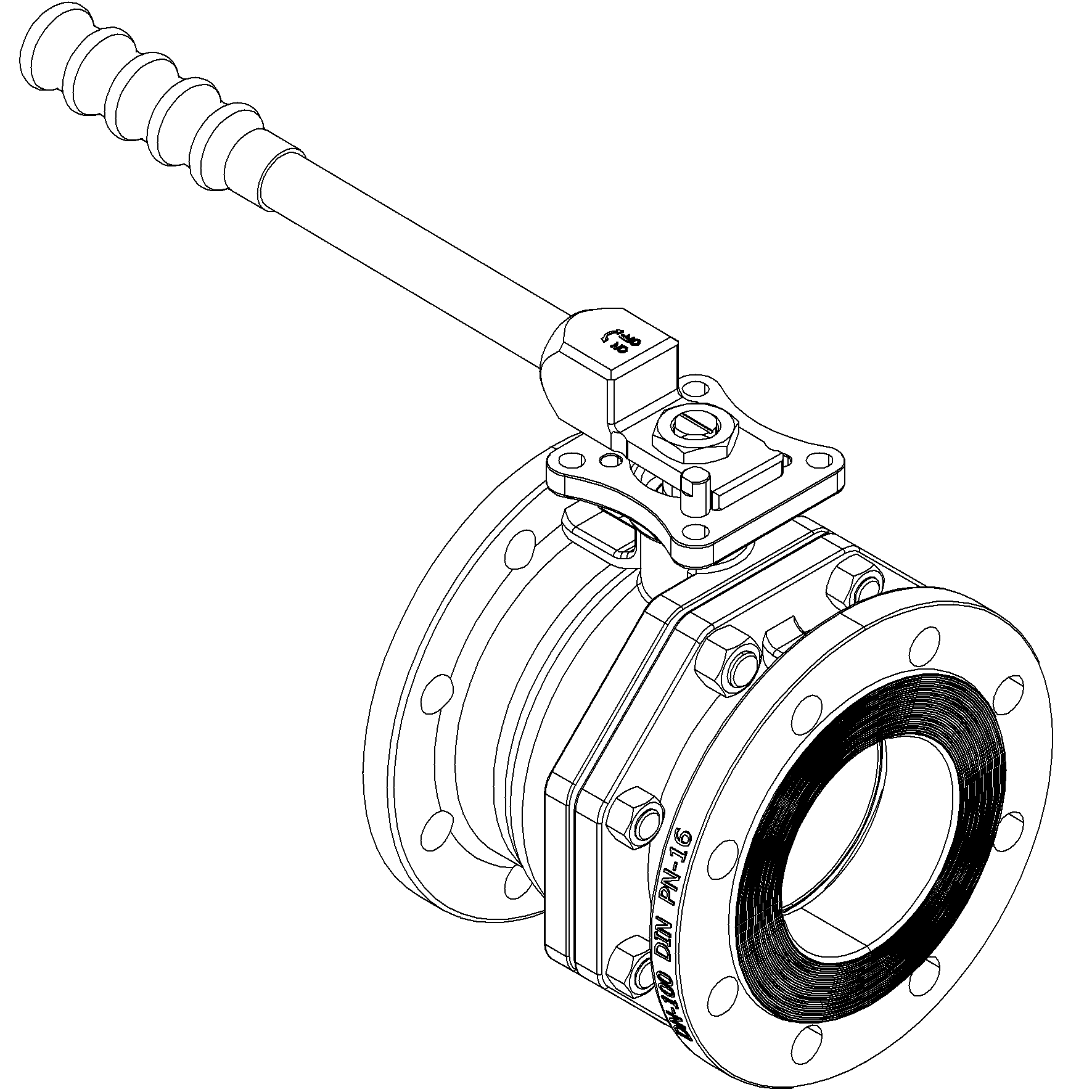

Ball Valve DN65 PN16

Straight type - with direct mounting pad
Item No.
20-00000929
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mounting pad.
More Information
More Information
Price View Price Range
Product Group 445192
Material Body Stainless Steel, 316
Remark Connection: PN16
Throughput Direction Straight
Face To Face Standard EN 558, series 14
End Standard DIN 2633
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 65
Material Seat PTFE
Pressure Rating PN16
End Type Flanged
Sub Category BALL
Item Number 20-00000929
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F07/F10
Execution Full Bore

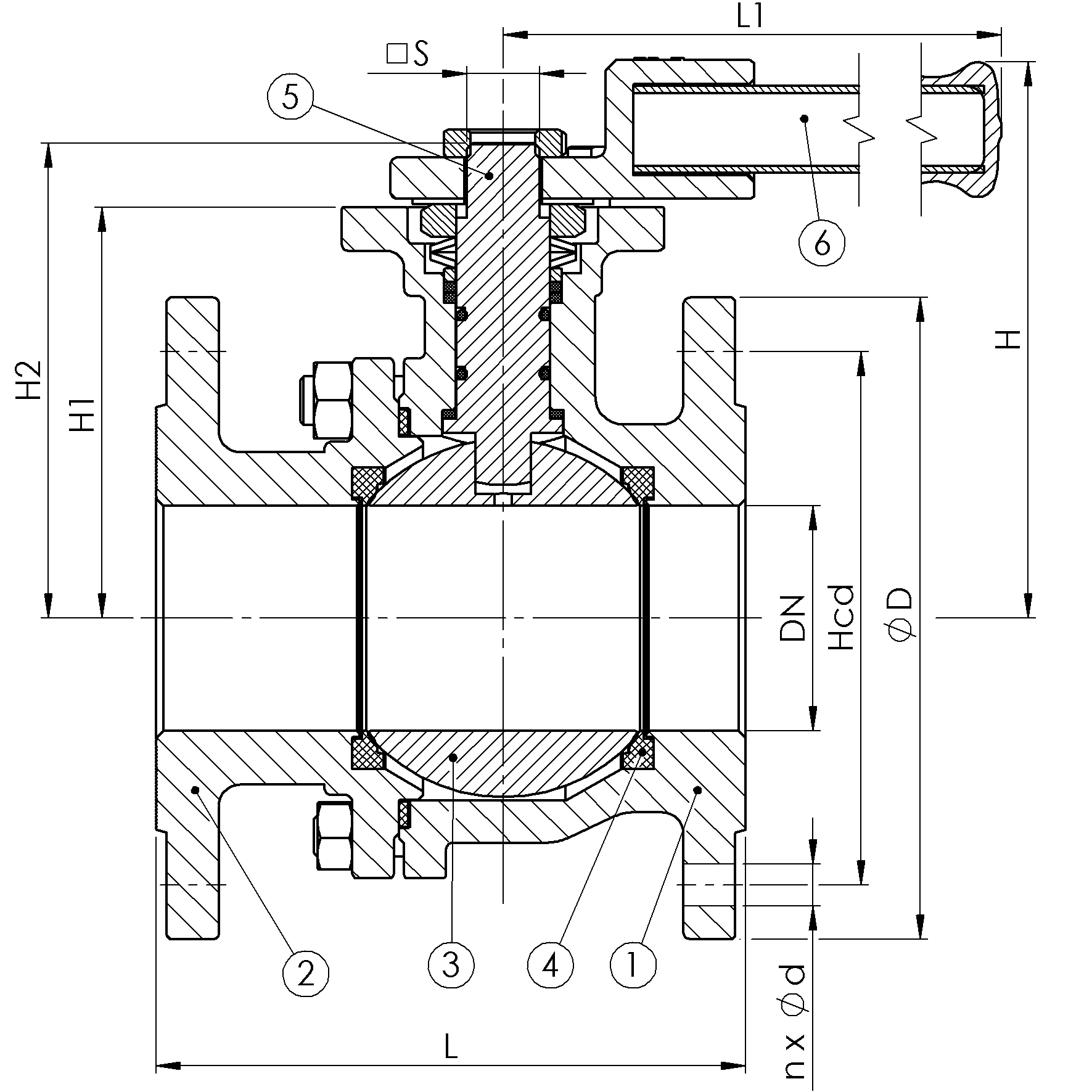

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat PTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 430


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 H2 S
65 16 4x18 145 185 170 14.8 277.5 155,5 118.5 137 17
