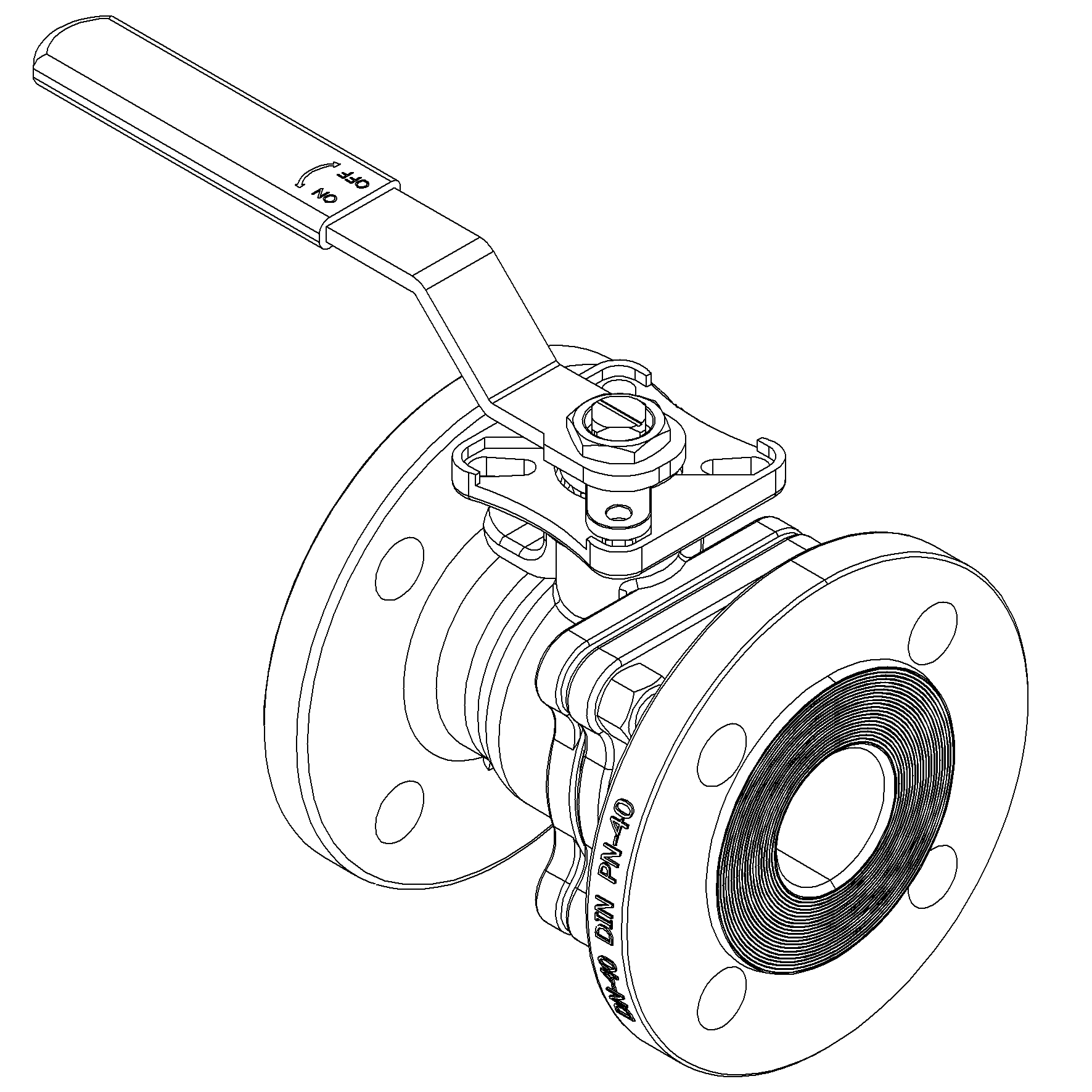

Ball Valve DN40 PN40

Straight type - with direct mounting pad - fire safe
Item No.
20-00000971
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and SS+PTFE seat. Raised face flanges. With direct mounting pad. Fire safe version.
More Information
More Information
Price View Price Range
Product Group 445194
Material Body Stainless Steel, 316
Remark Connection: PN40
Throughput Direction Straight
Face To Face Standard EN 558, series 14
End Standard DIN 2635
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 40
Material Seat SS+PTFE
Pressure Rating PN40
End Type Flanged
Sub Category BALL
Item Number 20-00000971
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F05/F07
Variant Fire Safe
Execution Full Bore

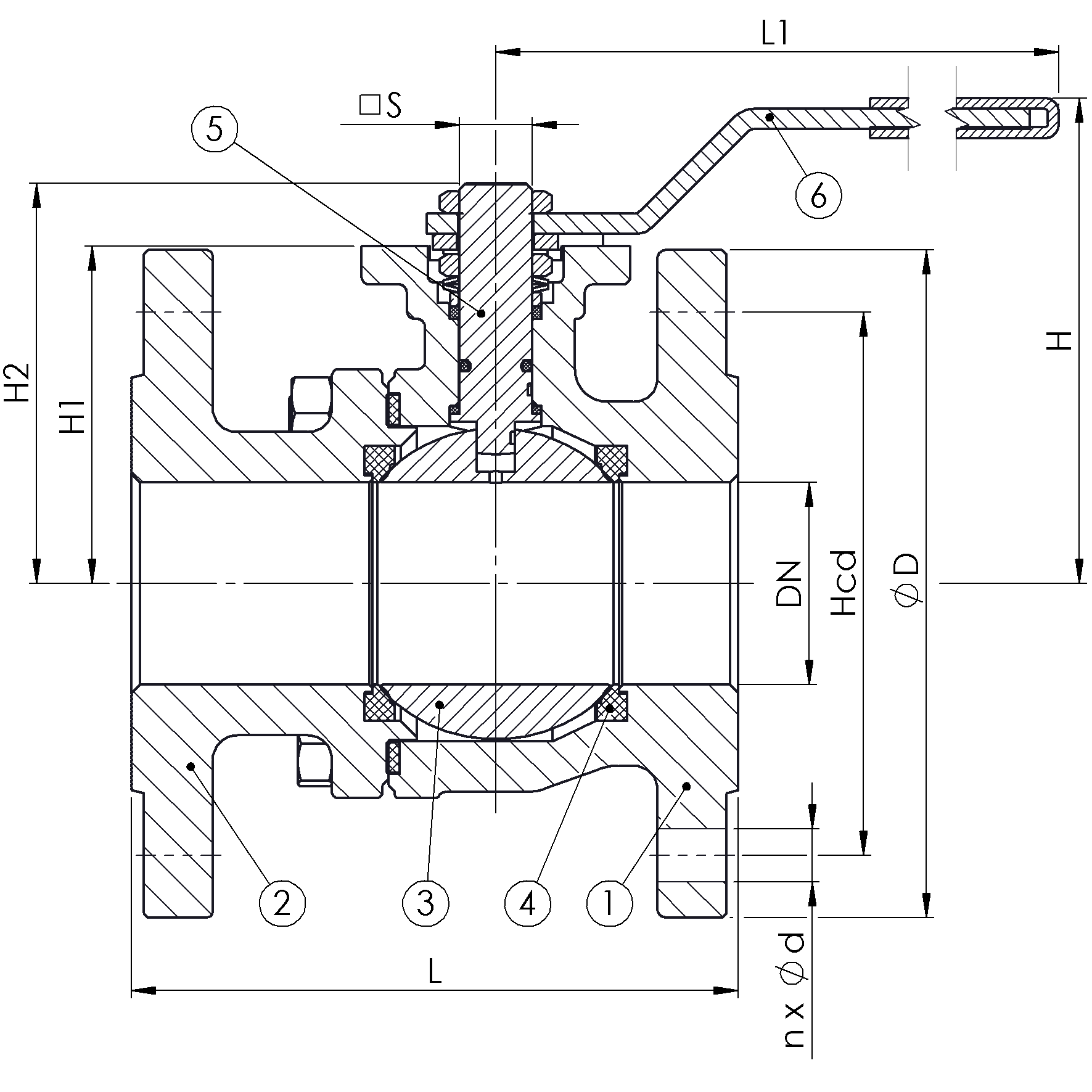

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat SS+PTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 430


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 H2 S
40 40 4x18 110 150 140 6.9 203 110,7 76.5 92 14
