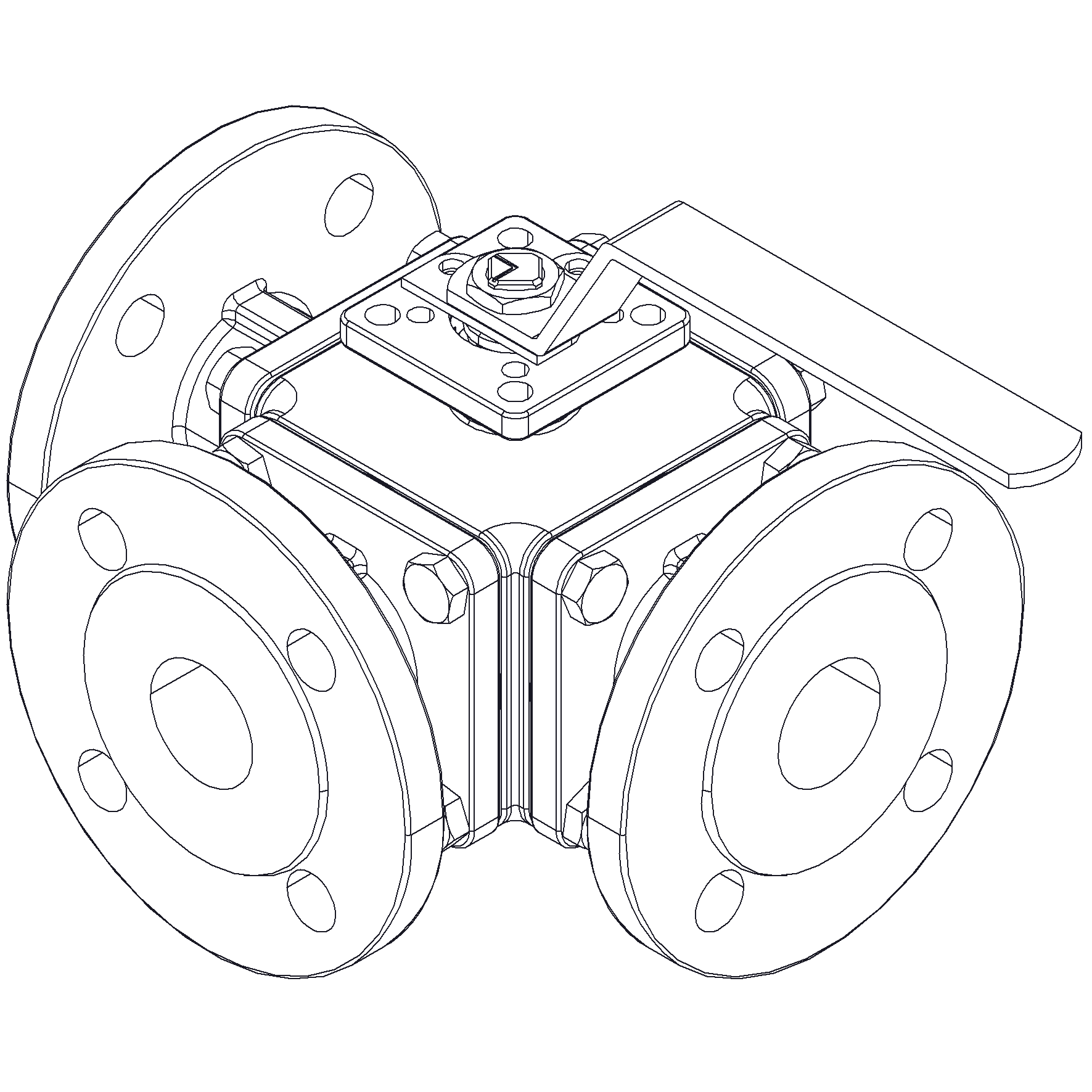

Ball Valve DN40 PN16

3-way type - T-port - with direct mouting pad
Item No.
20-00000828
Details
3-way, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mouting pad.
More Information
More Information
Price View Price Range
Product Group 448192
Material Body Stainless Steel, 316
Min temperature -25°C
Remark Connection: PN16
Throughput Direction 3-way
End Standard DIN 2633
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 40
Material Seat PTFE
Pressure Rating PN16
End Type Flanged
Sub Category BALL
Item Number 20-00000828
Category Valve
Inspection Standard API 598
Top Flange Standard ISO 5211 - F05/F07
Variant T-port
Execution Full Bore
Max temperature +230°C
Partslist and details

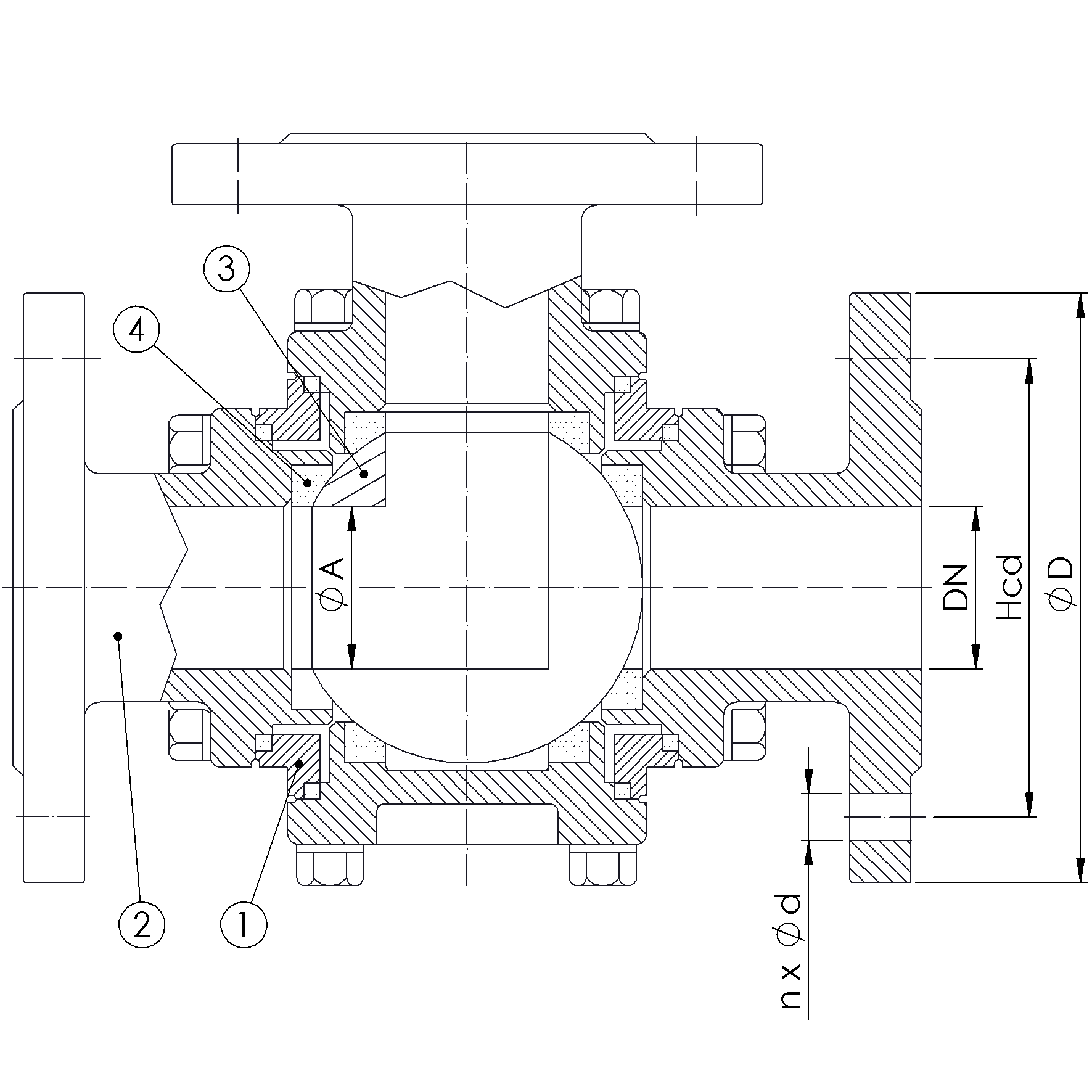

PARTSLIST
No Part Material Code
1 Body Stainless Steel A351 Gr. CF8M
2 Cap Stainless Steel A351 Gr. CF8M
3 Ball Stainless Steel SS 316
4 Seat PTFE
5 Stem Stainless Steel SS 316
6 Handle Stainless Steel, Vinyl Cover SS 304

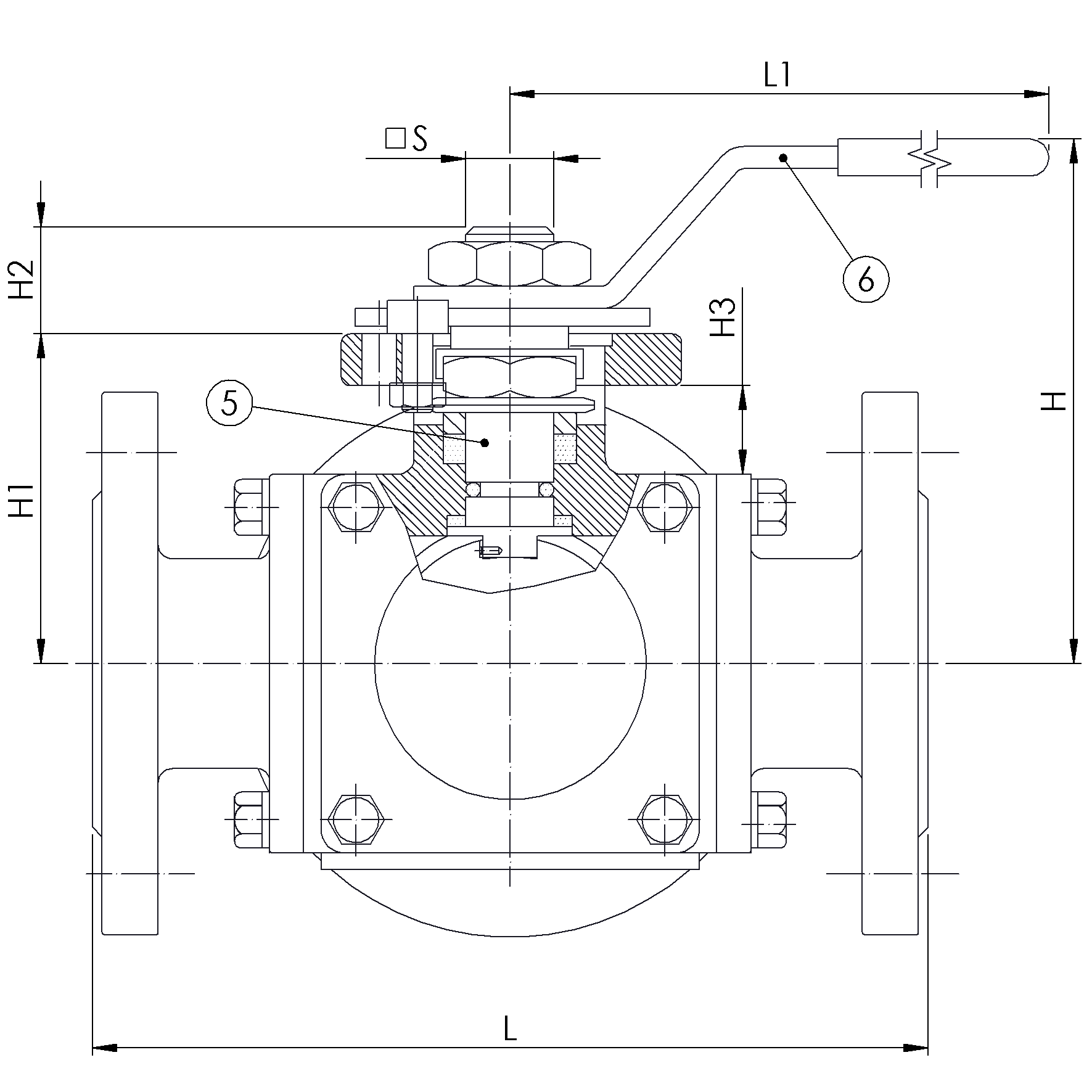

DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 Ø A H2 S H3
40 16 4x18 110 150 234 14.5 205 108 74 38 18 14 17.5
