Ball Valve DN25 PN40

Straight type - with direct mounting pad
Item No.
20-00000934
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mounting pad.
More Information
More Information
Price View Price Range
Product Group 445194
Material Body Stainless Steel, 316
Remark Connection: PN40
Throughput Direction Straight
Face To Face Standard EN 558, series 14
End Standard DIN 2635
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 25
Material Seat PTFE
Pressure Rating PN40
End Type Flanged
Sub Category BALL
Item Number 20-00000934
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F04/F05
Execution Full Bore

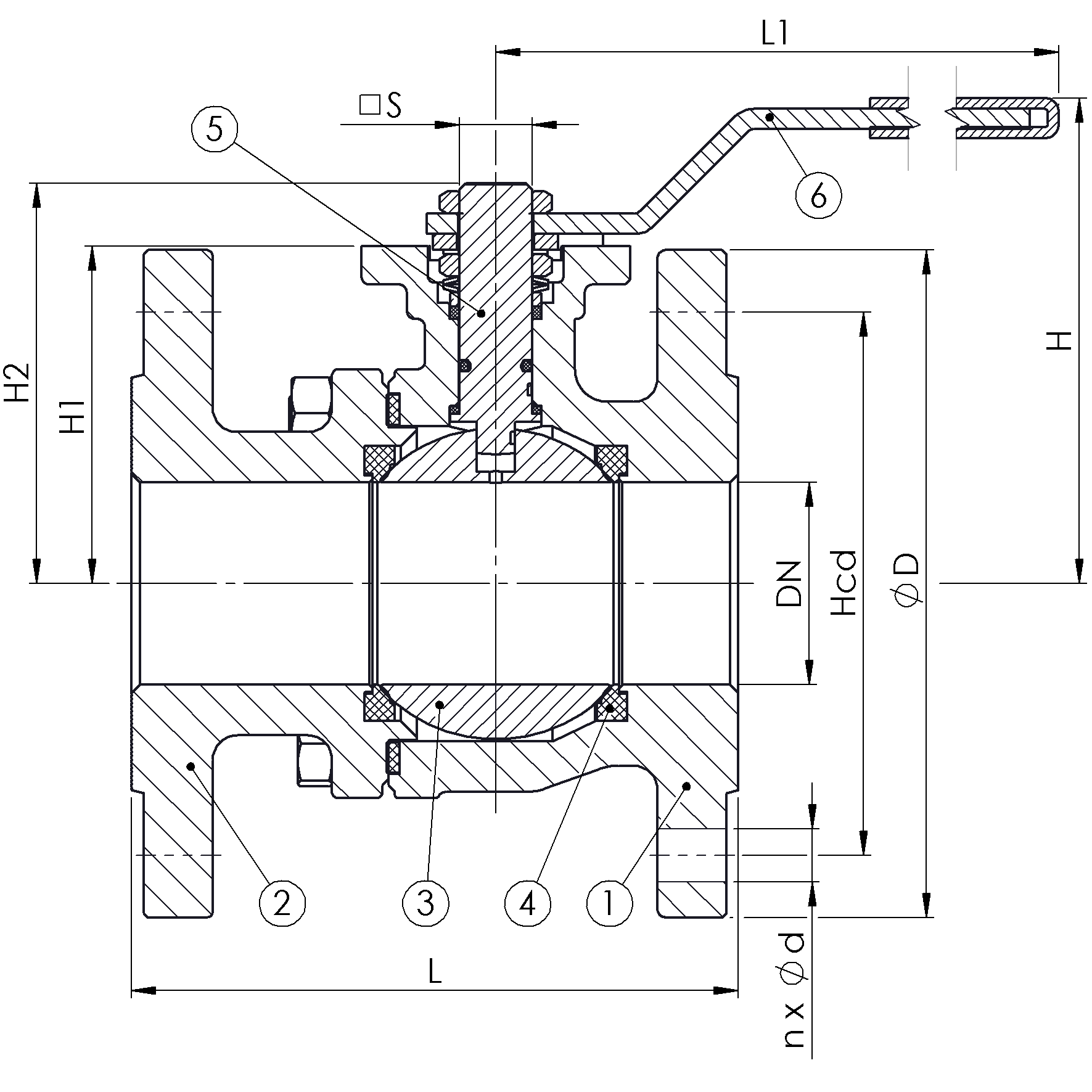

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat PTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 430


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 H2 S
25 40 4x14 85 115 125 3.8 136 95 57.5 67 11
