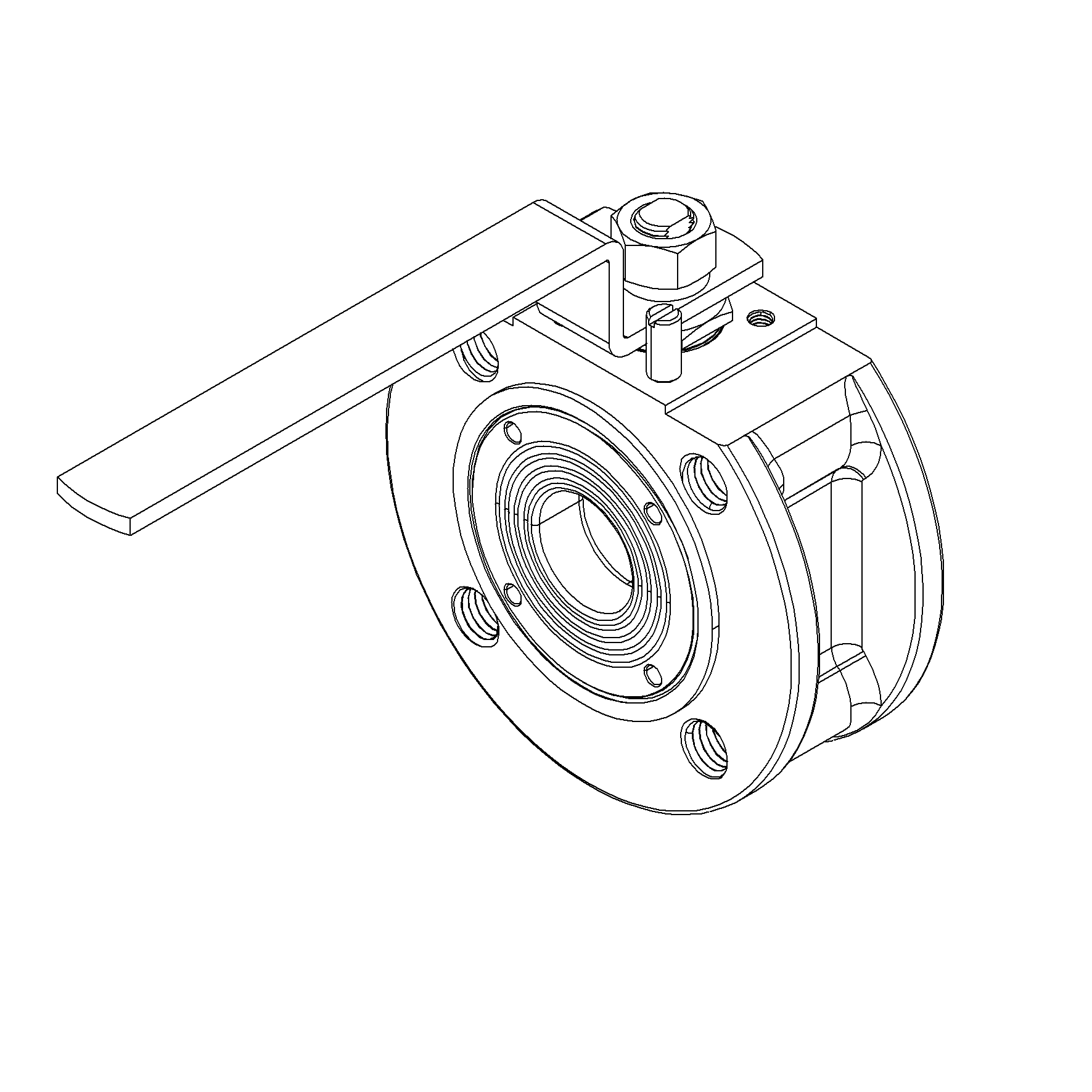

Ball Valve DN25 PN40

Straight type - short length
Item No.
20-00000759
Details
Two piece, full bore, short length, Stainless Steel body ball valve with Hard Chromed Brass ball and RTFE seat. Raised face flanges. With non-direct mounting pad.
More Information
More Information
Price View Price Range
Product Group 446292
Material Body Stainless Steel, 316
Min temperature -20°C
Remark Connection: PN40
Throughput Direction Straight
End Standard EN 1092-1
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 25
Material Seat RTFE
Pressure Rating PN40
End Type Flanged
Sub Category BALL
Item Number 20-00000759
Category Valve
Inspection Standard API 598
Top Flange Standard ISO 5211 - F03 non-direct
Execution Full Bore
Max temperature +200°C

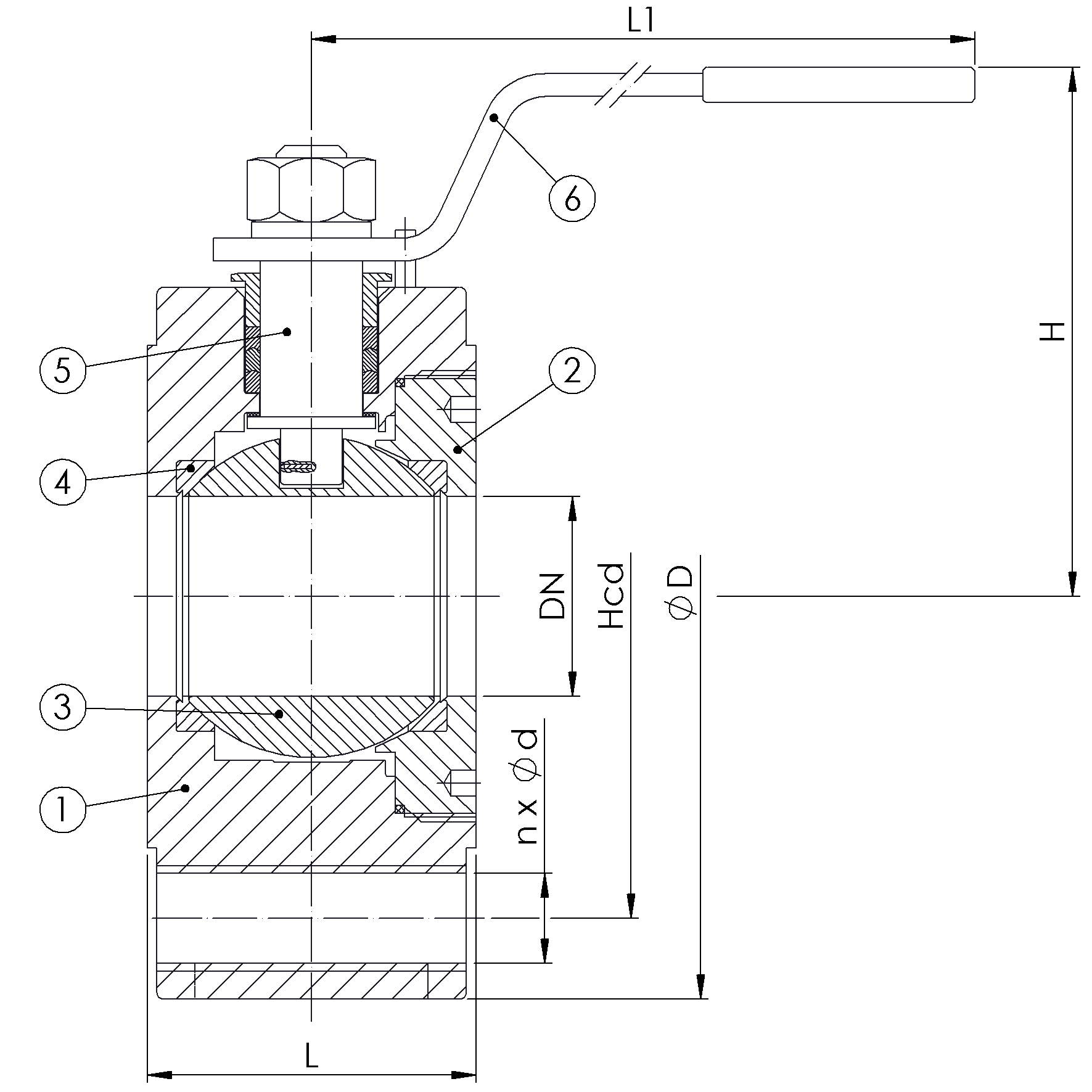

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat RTFE
5 Stem Stainless Steel ASTM A276-316
6 Handle Stainless Steel, Plastic Cover AISI 304


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H
25 40 4xM12 85 108 43 1.9 150 80
