Ball Valve DN25 PN40

Straight type
Item No.
20-00000345
Details

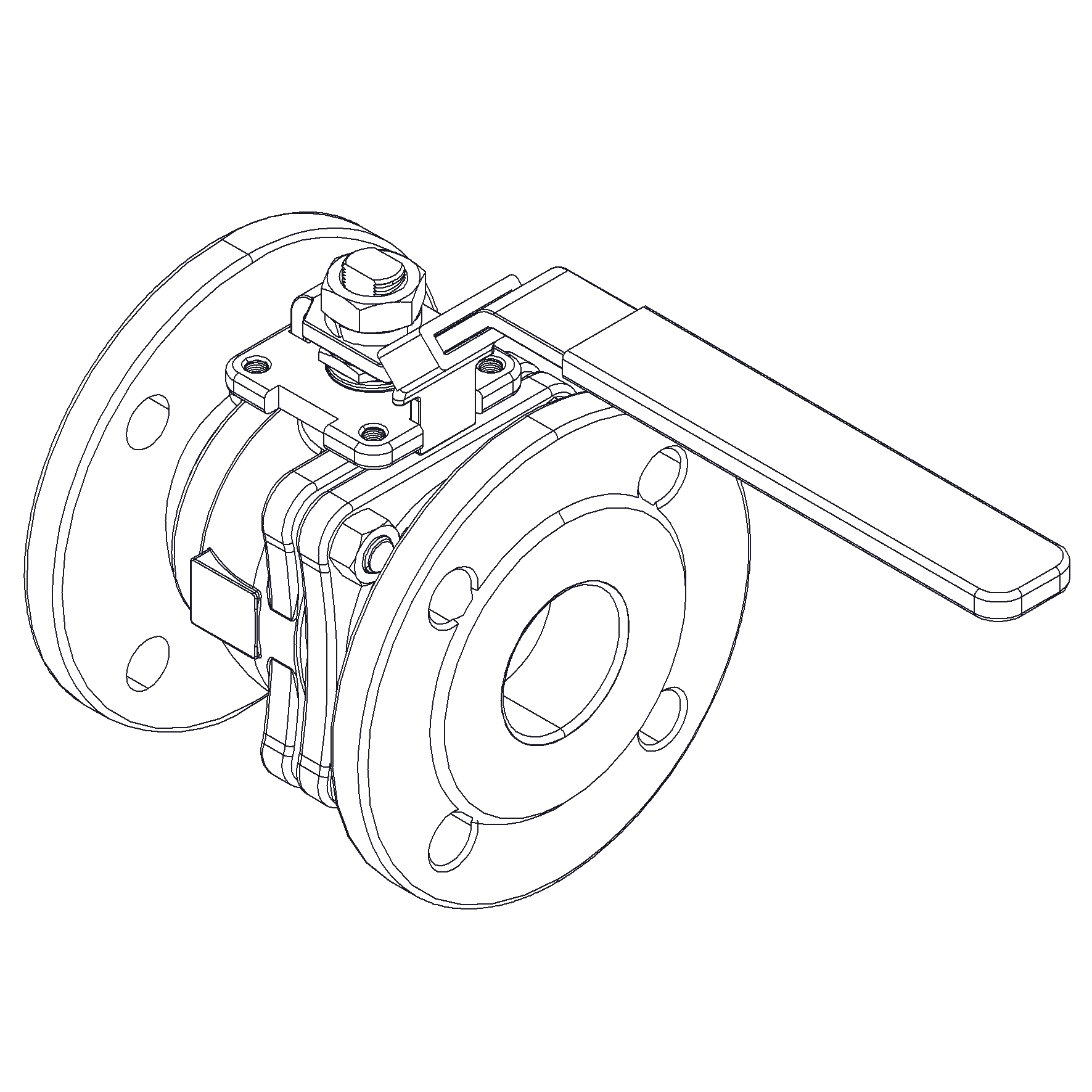

Two piece, full bore, Cast Steel body ball valve with Stainless Steel ball and CPTFE seat. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 445164
Material Body Cast Steel
Remark Connection: PN40
Throughput Direction Straight
Face To Face Standard EN 558, series 14
End Standard DIN 2635
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 25
Material Seat CPTFE
Pressure Rating PN40
End Type Flanged
Sub Category BALL
Item Number 20-00000345
Category Valve
Inspection Standard EN 12266
Top Flange Standard ISO 5211 - F05
Execution Full Bore
Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel 1.0619
2 Cap Cast Steel 1.0619
3 Ball Stainless Steel 1.4308
4 Seat CPTFE
5 Stem Stainless Steel SUS304
6 Handle Stainless Steel, Plastic Cover SUS304


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H
25 40 4x14 85 115 125 4.6 188 92
