Ball Valve DN20 PN40

Straight type
Item No.
20-00000413
Details

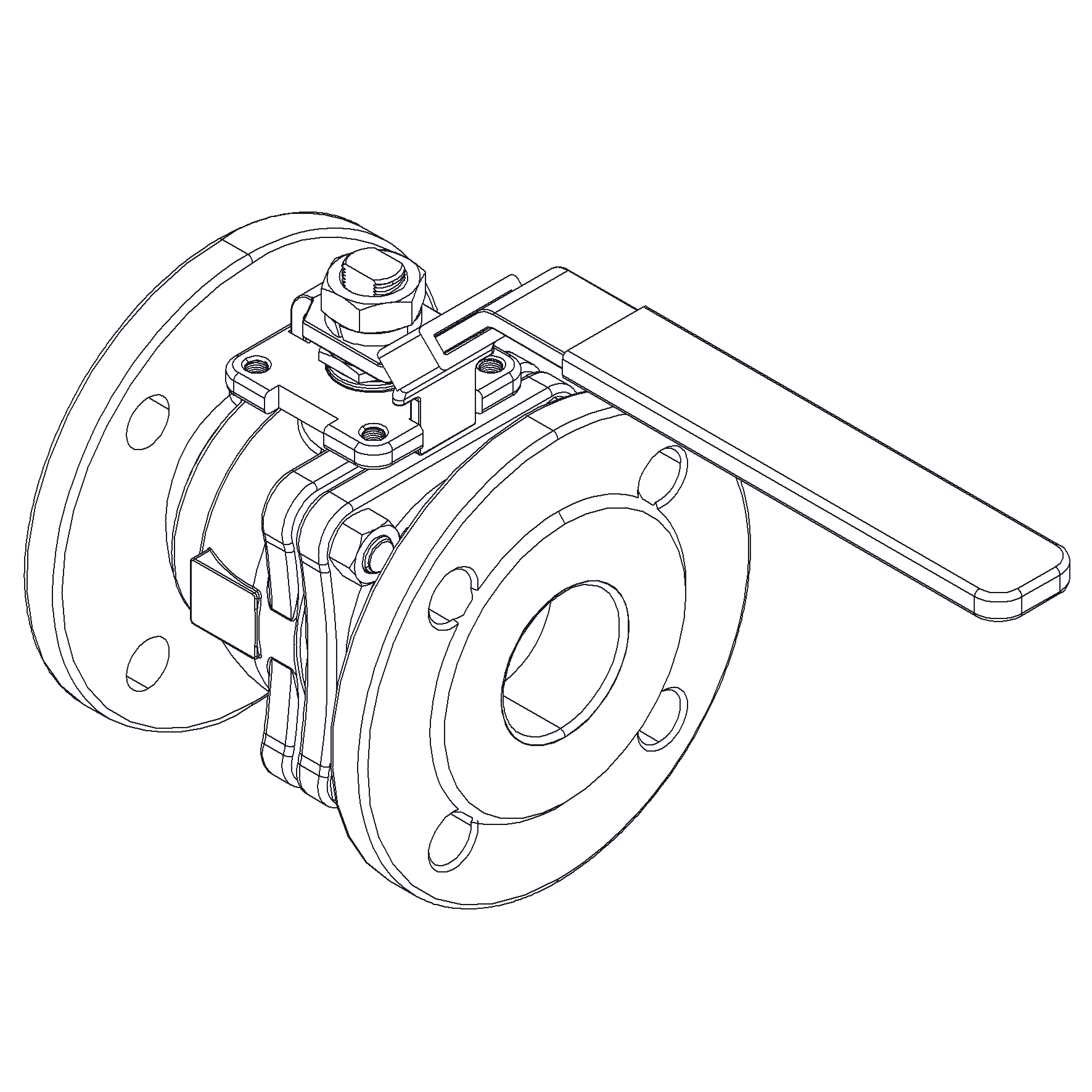

Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 445194
Material Body Stainless Steel, 316
Remark Connection: PN40
Throughput Direction Straight
Face To Face Standard EN 588, series 14
End Standard DIN 2635
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fliud, Sea water, Water
Size 20
Material Seat PTFE
Pressure Rating PN40
End Type Flanged
Sub Category BALL
Item Number 20-00000413
Category Valve
Inspection Standard EN 12266
Partslist and details

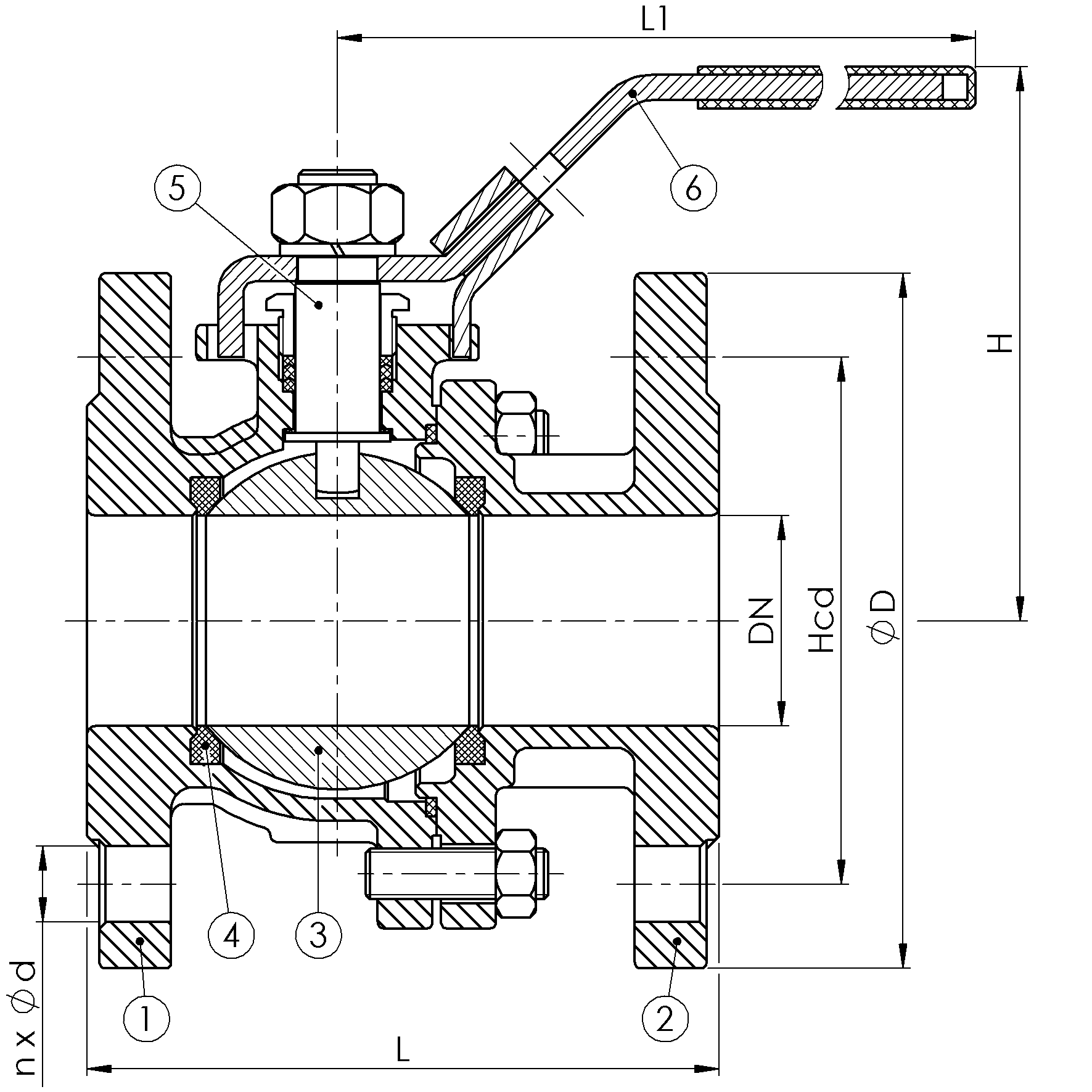

PARTSLIST
No Part Material Code
1 Body Stainless Steel 1.4408
2 Cap Stainless Steel 1.4408
3 Ball Stainless Steel 1.4408
4 Seat PTFE
5 Stem Stainless Steel SUS316
6 Handle Stainless Steel, Plastic Cover SUS304


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H
20 40 4x14 75 105 120 3.1 153 78
