Ball Valve DN15 PN40

Straight type
Item No.
20-00000709
Details

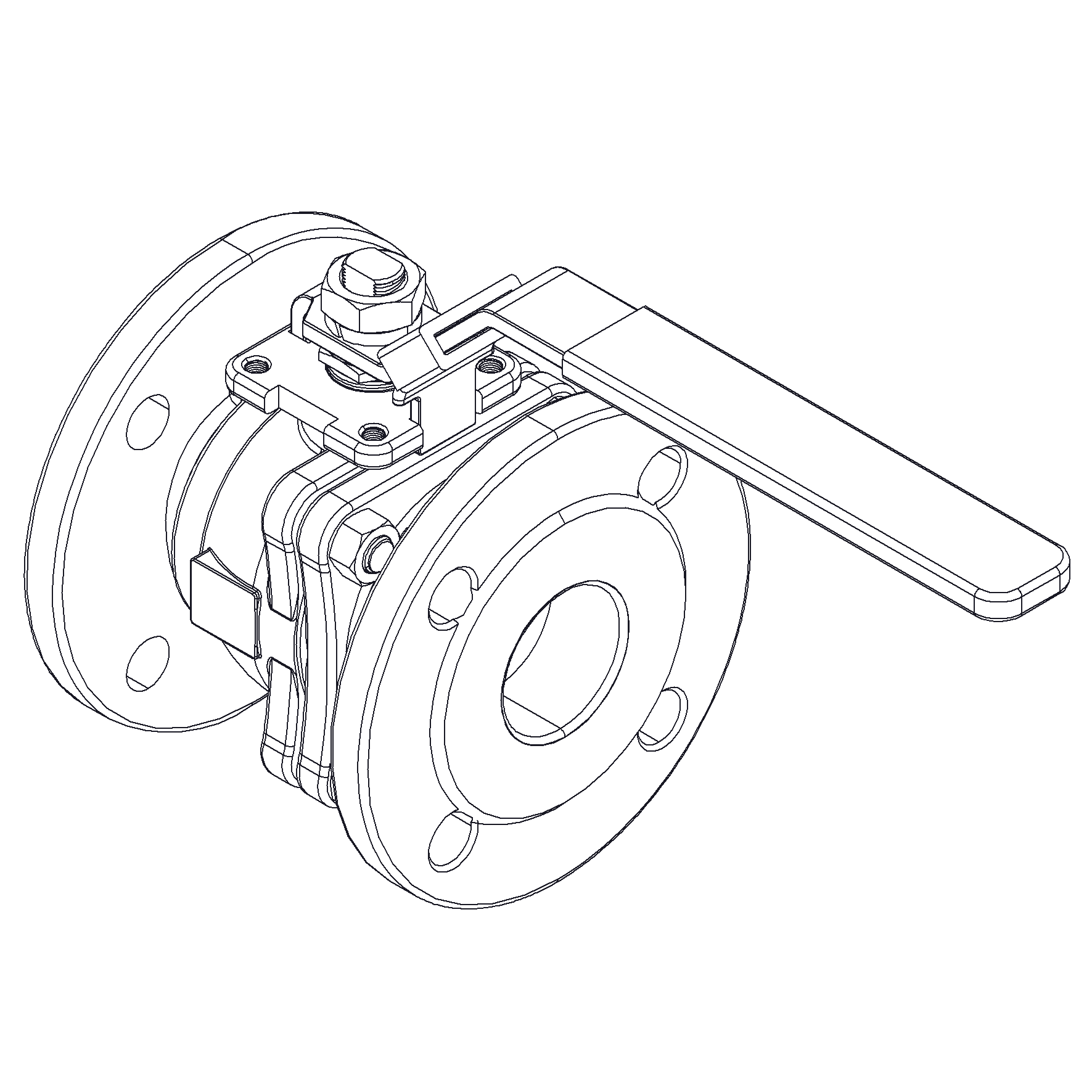

Two piece, full bore, Cast Steel body ball valve with Stainless Steel ball and CPTFE seat. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 445264
Material Body Cast Steel
Throughput Direction Straight
Face To Face Standard EN 558, series 1
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 15
Material Seat CPTFE
Pressure Rating PN40
End Type Flanged
Sub Category BALL
Item Number 20-00000709
Category Valve
Top Flange Standard ISO 5211 - F04
Execution Full Bore
Partslist and details

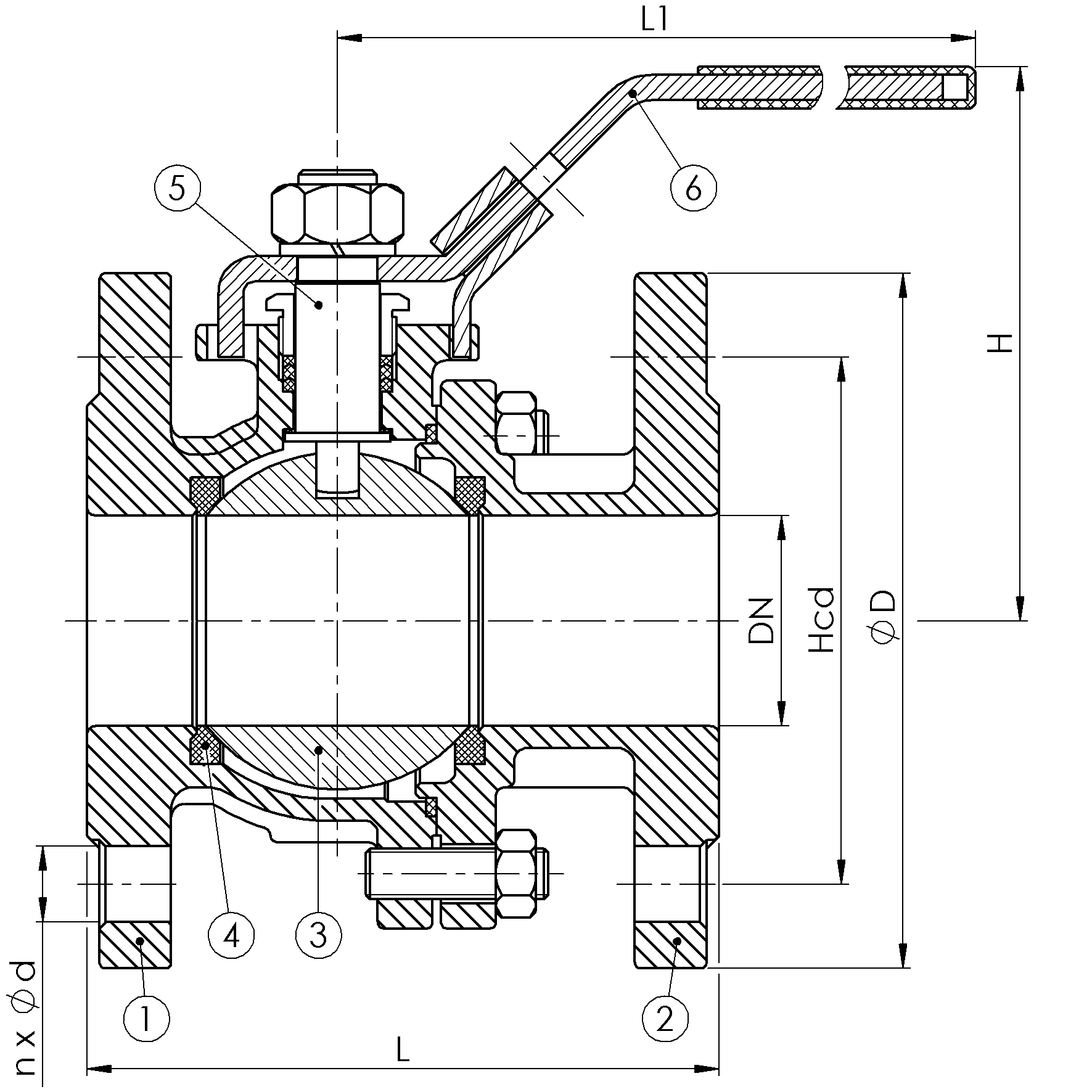

PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Cap Cast Steel ASTM A216-WCB
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat CPTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 430


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H
15 40 4x14 65 95 130 2.4 170 74
