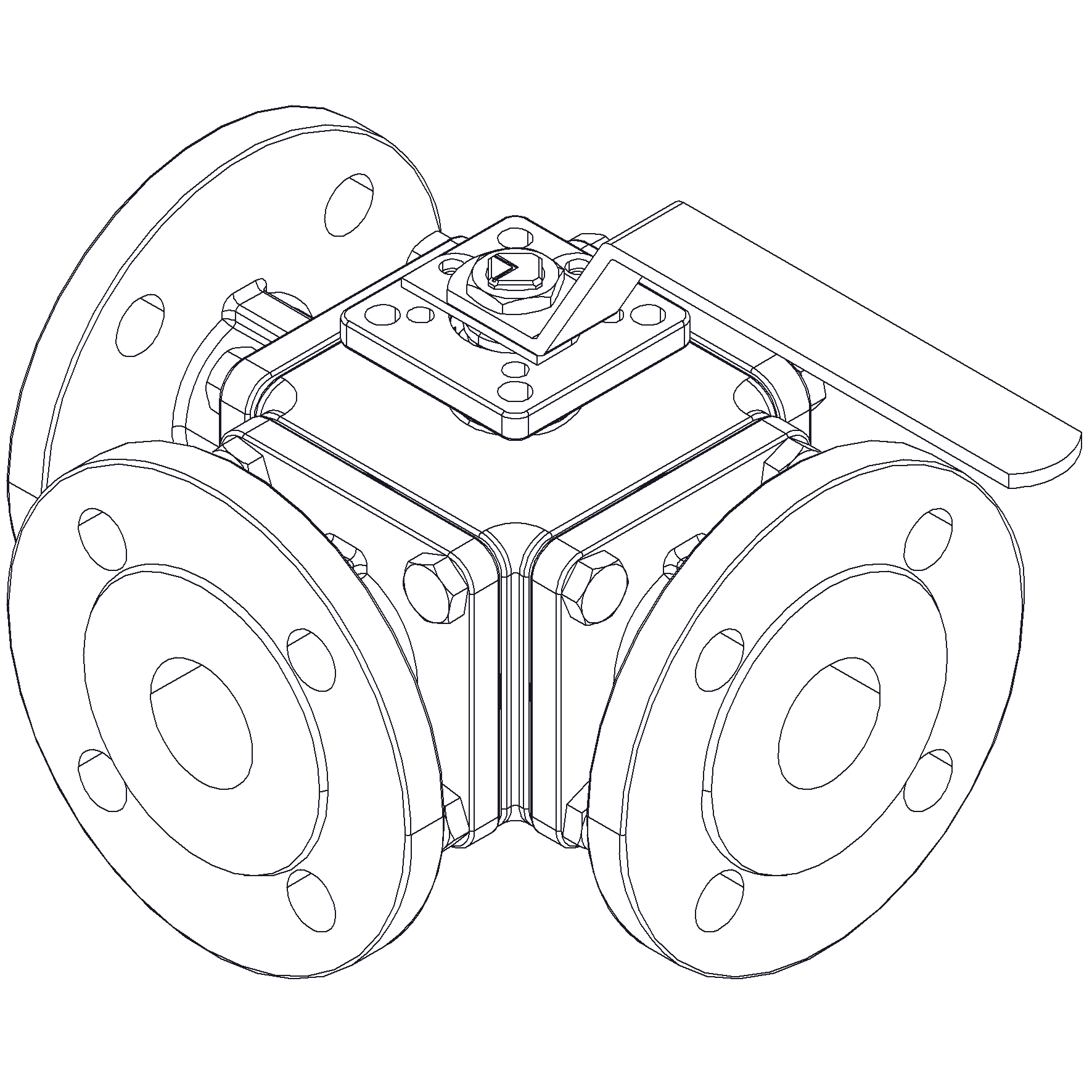

Ball Valve DN15 PN16

3-way type - T-port - with direct mouting pad
Item No.
3-way, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mouting pad.
More Information
More Information
Product Group 448192
Remark Connection: PN16
End Standard DIN 2633
Inspection Standard API 598
Execution Full Bore
Top Flange Standard ISO 5211 - F03/F04
Max temperature +450°F
Min temperature -20°F
Throughput Direction 3-way
Variant T-port
End Type Flanged
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 15
Material Seat PTFE
Material Body Stainless Steel, 316
Sub Category BALL
Item Number 20-00000820
Category Valve
Pressure Rating PN16
Partslist and details
No Part Material Code
1 Body Stainless Steel A351 Gr. CF8M
2 Cap Stainless Steel A351 Gr. CF8M
3 Ball Stainless Steel SS 316
4 Seat PTFE -
5 Stem Stainless Steel SS 316
6 Handle Stainless Steel, Vinyl Cover SS 304

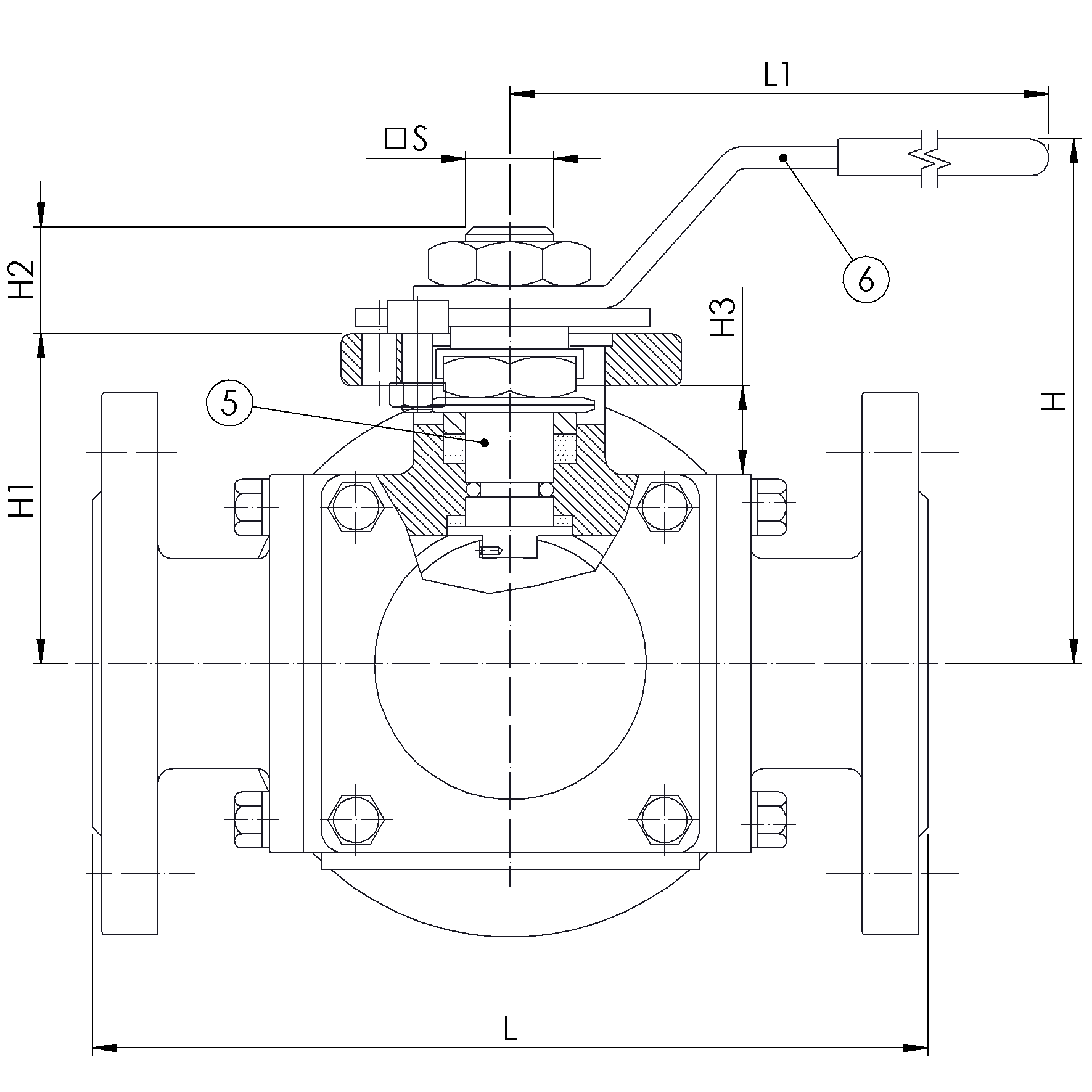

DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H H1 Ø A H2 S H3
15 16 4x14 65 95 160 4.4 130 62 41 15 11 9 10
