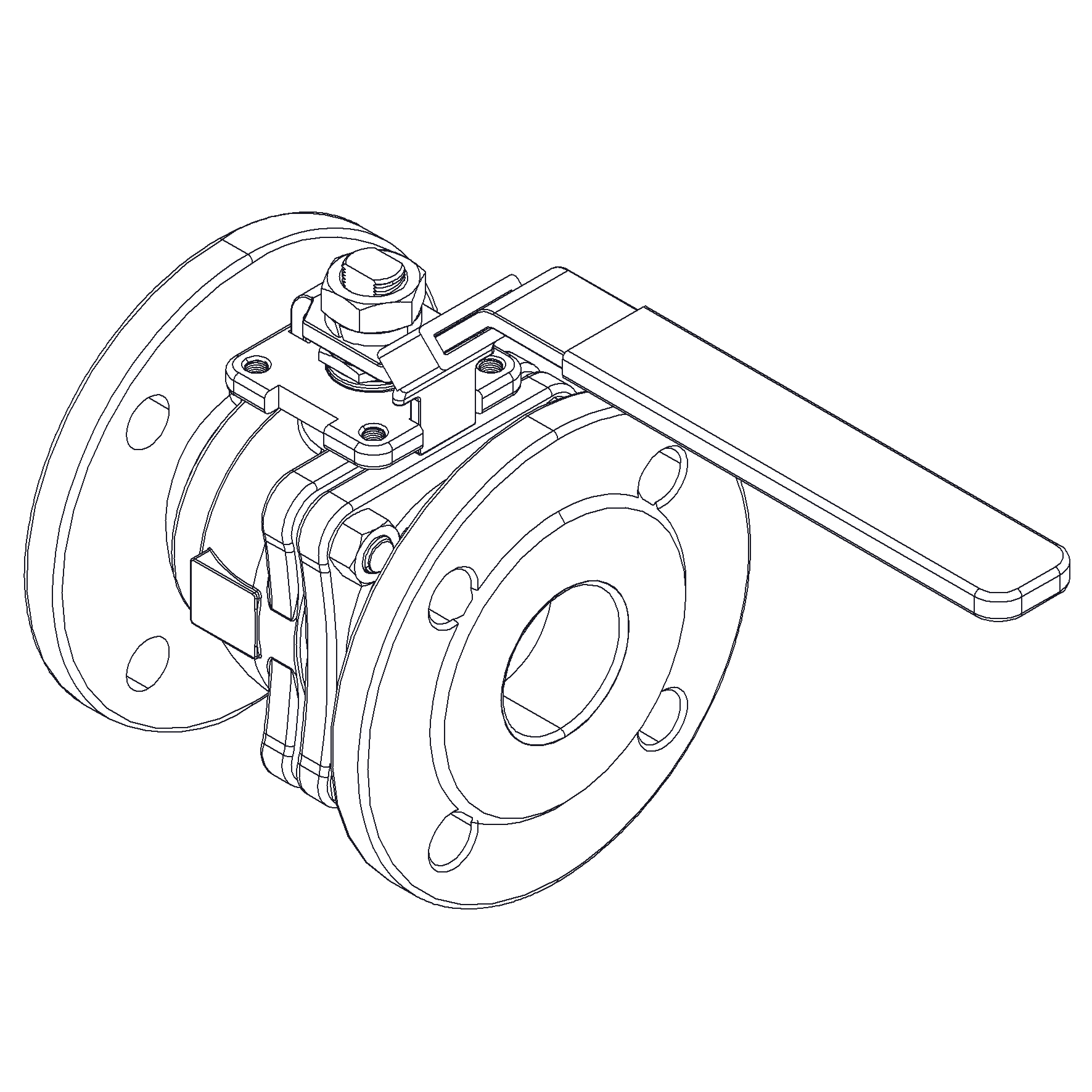

Ball Valve DN100 PN40

Straight type
Item No.
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
More Information
More Information
Product Group 445194
Remark Connection: PN40
End Standard DIN 2635
Face To Face Standard EN 588, series 14
Inspection Standard EN 12266
Throughput Direction Straight
End Type Flanged
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fliud, Sea water, Water
Size 100
Material Seat PTFE
Material Body Stainless Steel, 316
Sub Category BALL
Item Number 20-00000435
Category Valve
Pressure Rating PN40

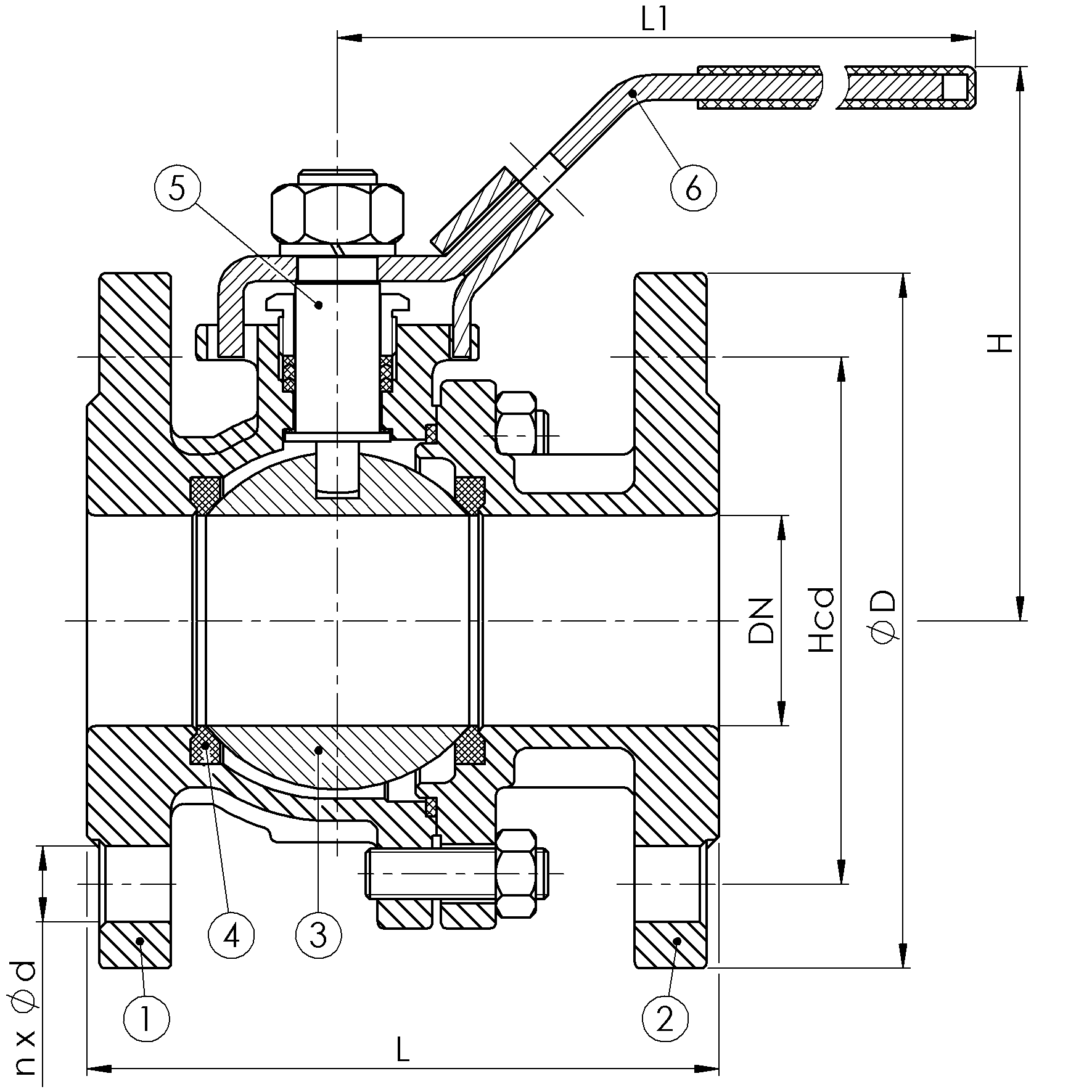

Partslist and details
No Part Material Code
1 Body Stainless Steel 1.4408
2 Cap Stainless Steel 1.4408
3 Ball Stainless Steel 1.4408
4 Seat PTFE
5 Stem Stainless Steel SUS316
6 Handle Stainless Steel, Plastic Cover SUS304

DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H
100 40 8x22 190 235 190 26.3 388 190
