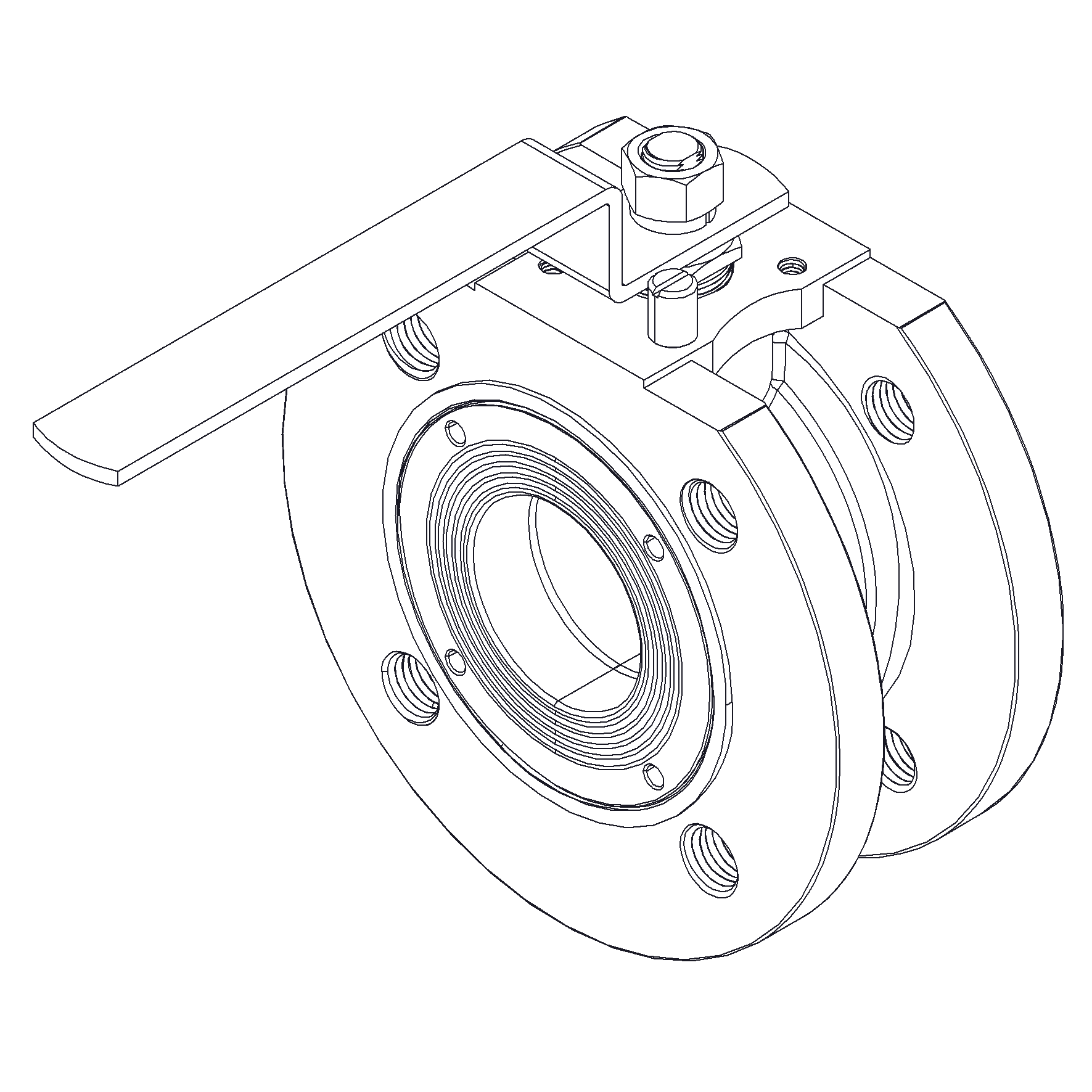

Ball Valve DN100 PN16
Details
Two piece, full bore, short length, Stainless Steel body ball valve with Hard Chromed Brass ball and RTFE seat. Raised face flanges. With non-direct mounting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 446292 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -20°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| End Standard | EN 1092-1 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 100 |
| Material Seat | RTFE |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000771 |
| Category | Valve |
| Inspection Standard | API 598 |
| Top Flange Standard | ISO 5211 - F10 non-direct |
| Execution | Full Bore |
| Max temperature | +200°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | RTFE | |
| 5 | Stem | Stainless Steel | ASTM A276-316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 304 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | Ø A |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 16 | 8xM16 | 180 | 220 | 152 | 19.7 | 325 | 168 | 96 |
