Ball Valve 3/8" 1200WOG

Straight type
Item No.
20-00000999
Details

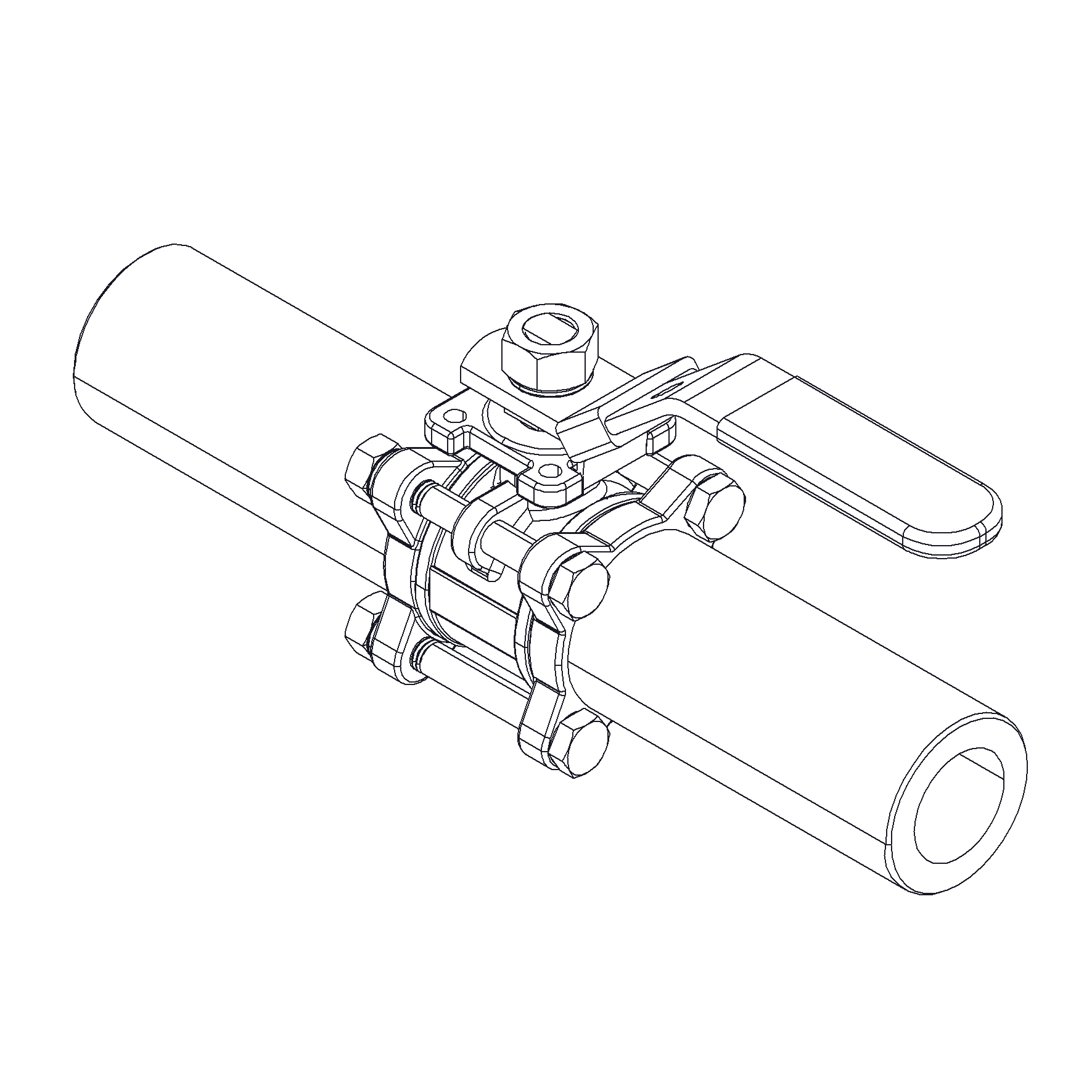

Three piece, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Long butt welded ends. With non-direct mounting pad.
More Information
More Information
Price View Price Range
Product Group 440665
Material Body Cast Steel
Throughput Direction Straight
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 10
Material Seat PTFE
Pressure Rating 1200WOG
End Type Butt welded, long
Sub Category BALL
Item Number 20-00000999
Category Valve
Top Flange Standard ISO 5211 - F03 non-direct
Execution Full Bore
Partslist and details

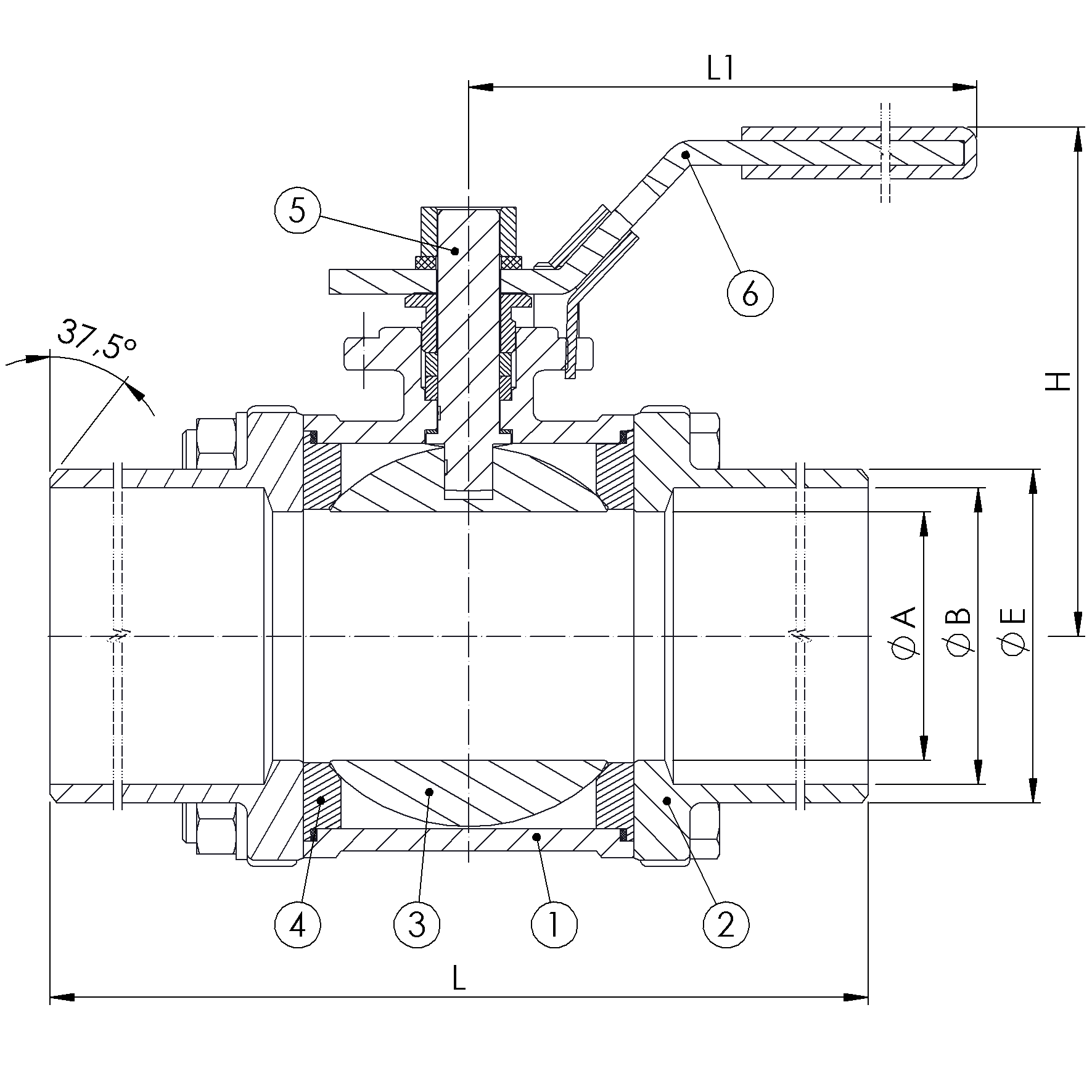

PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Cap Cast Steel ASTM A216-WCB
3 Ball Stainless Steel ASTM A351-CF8
4 Seat PTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 304


DETAILS
DN Pressure Rating Id L Kg L1 H Ø A Ø E Ø B
10 1200 225 0.5 95 55 12.7 18 14
