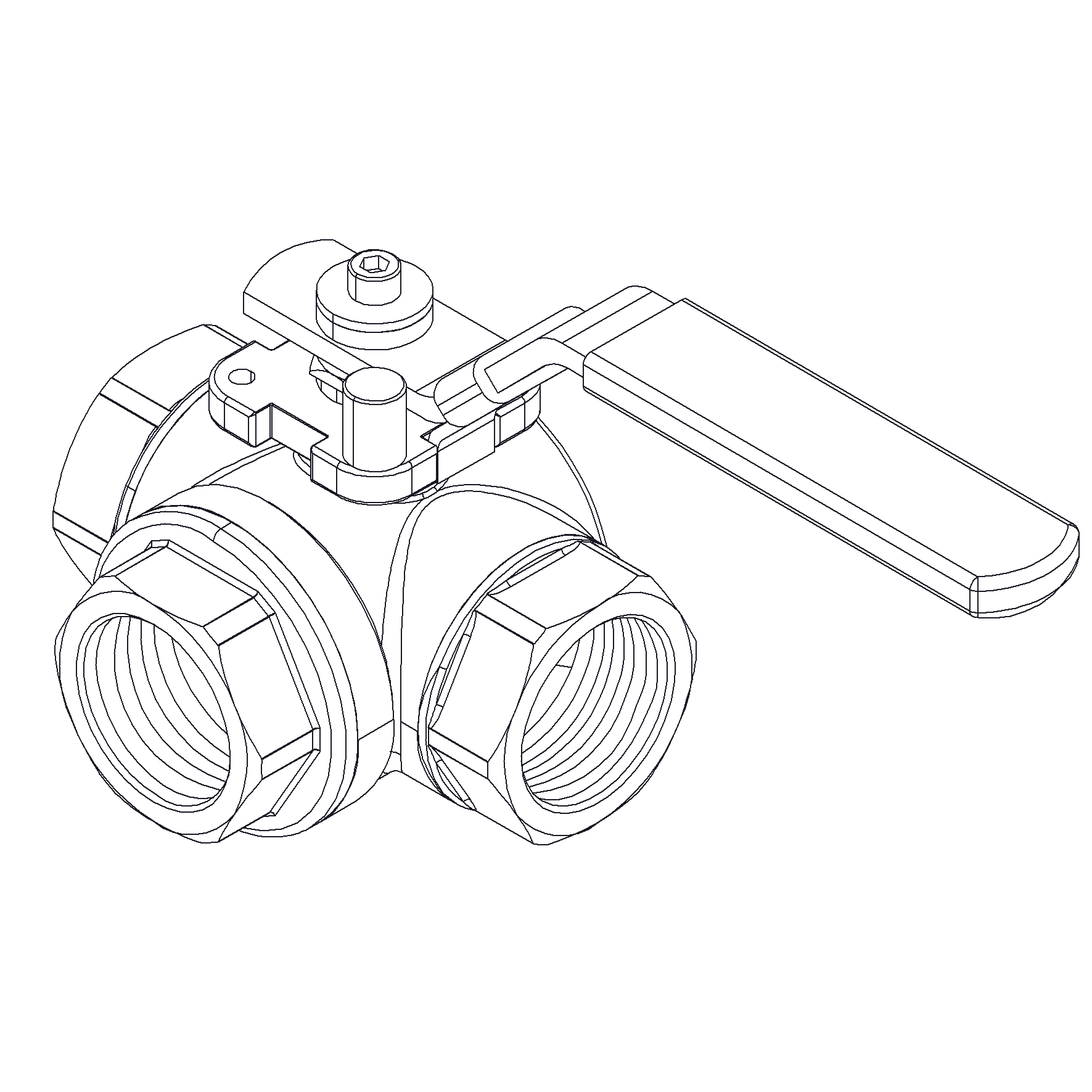

Ball Valve 3/4" PN63

3-way type - L-port
Item No.
20-00001019
Details
3-way, reduced bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. BSPP female threaded ends.
More Information
More Information
Product Group 448095
End Standard ISO 228-1
Inspection Standard EN 12266
Execution Reduced Bore
Throughput Direction 3-way
Variant L-port
End Type Threaded
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 20
Material Seat PTFE
Material Body Stainless Steel, 316
Sub Category BALL
Item Number 20-00001019
Category Valve
Pressure Rating PN63

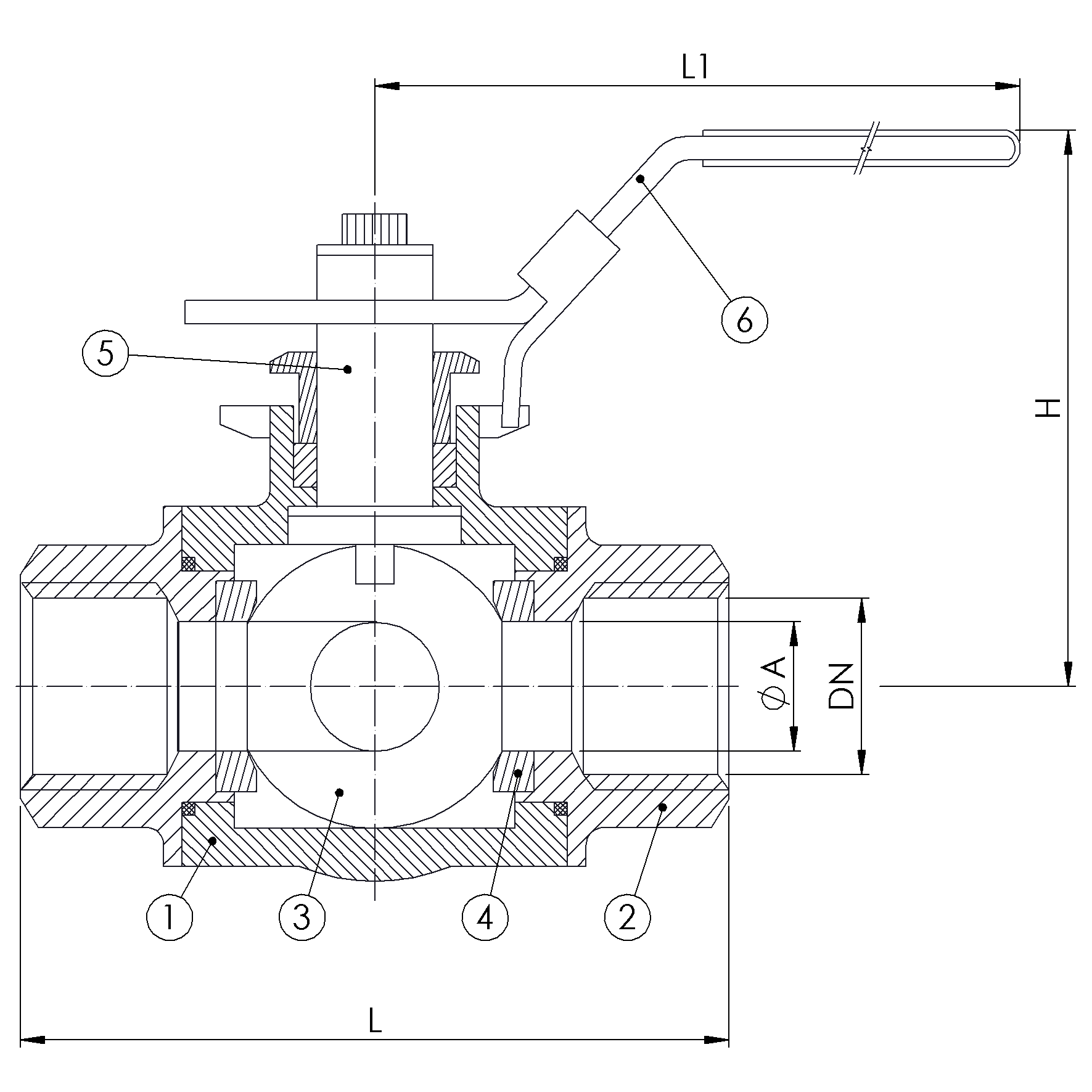

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat PTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 304


DETAILS
DN Pressure Rating Id L Kg L1 Inch H Ø A B
20 63 84 1.2 180 3/4" 82 16 42
