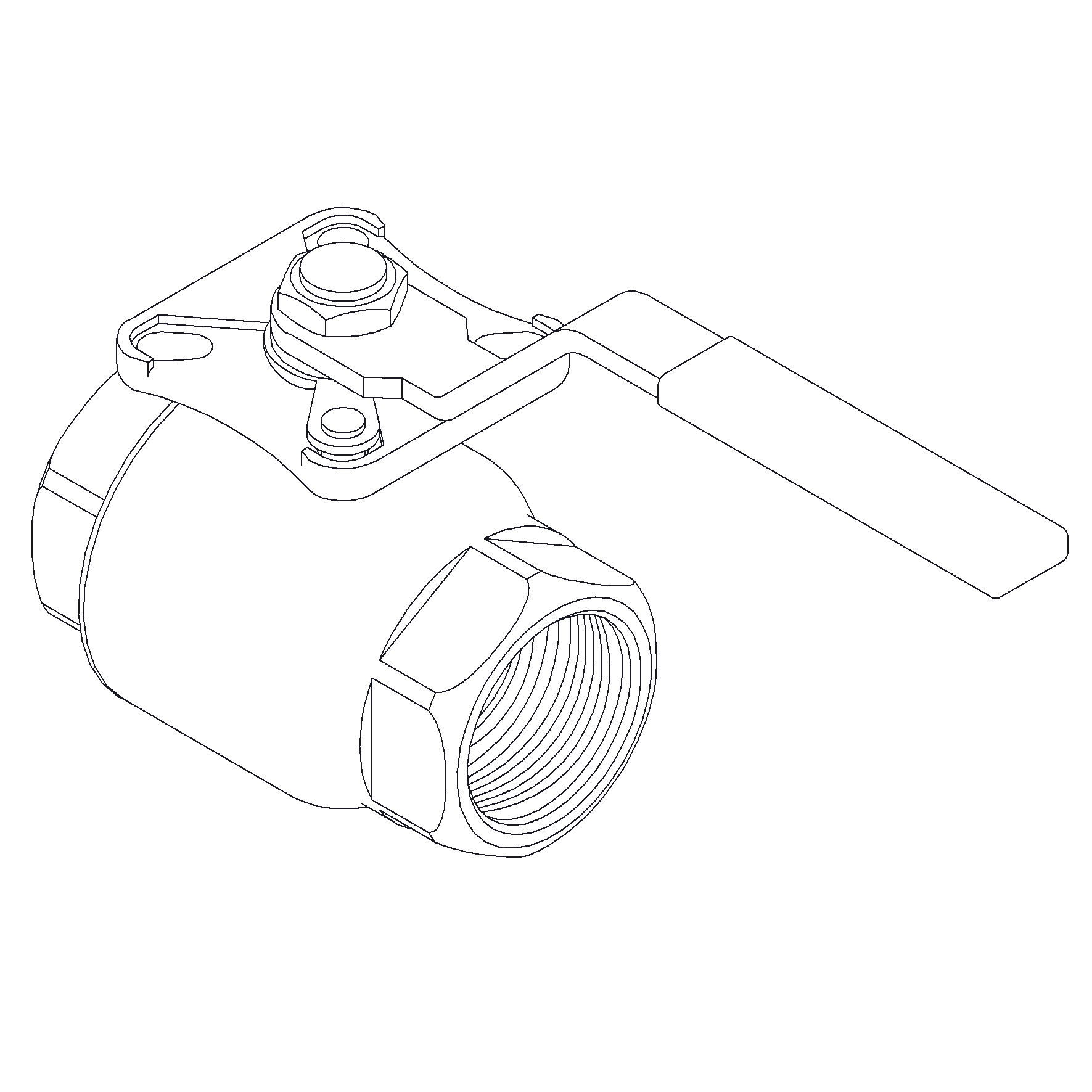

Ball Valve 2 ½" PN63

Straight type - with direct mounting pad
Item No.
20-00000191
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. BSPP female threaded ends. With direct mounting pad.
More Information
More Information
Price View Price Range
Product Group 442095
Material Body Stainless Steel, 316
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 65
Material Seat PTFE
Pressure Rating PN63
End Type Threaded
Sub Category BALL
Item Number 20-00000191
Category Valve
Top Flange Standard ISO 5211 - F07/F10
Execution Full Bore

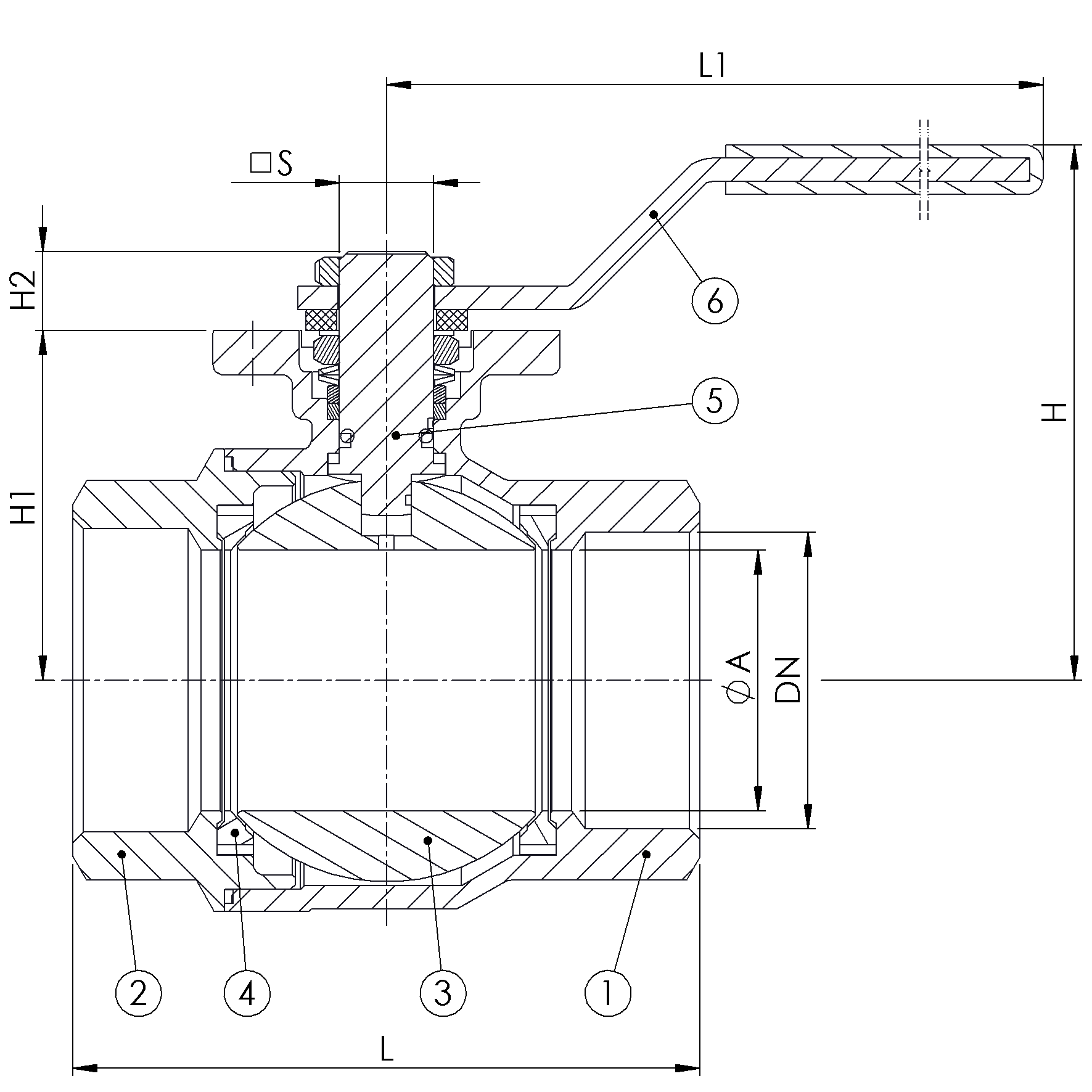

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat PTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 430


DETAILS
DN Pressure Rating Id L Kg L1 Inch H1 Ø A H2 S
65 63 155 7 322.5 2 1/2" 101.5 65 24.5 17
