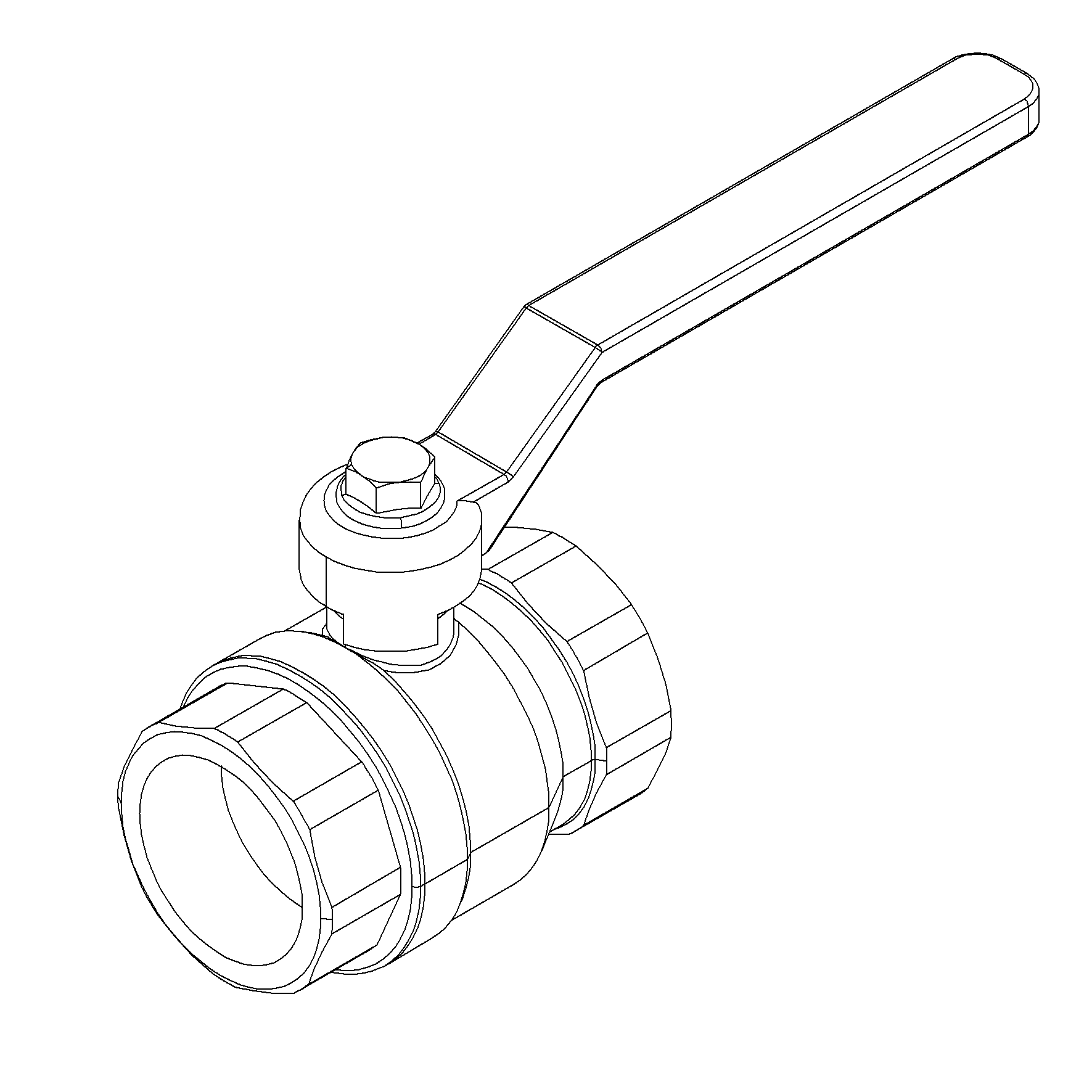

Ball Valve 2 ½" PN20
Details
Two piece, full bore, Brass body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.
More Information
Price View | Price Range |
---|---|
Product Group | 442013 |
Material Body | Brass |
Min temperature | -20°C |
Throughput Direction | Straight |
End Standard | ISO 228-1 |
Standard | DIN |
Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water |
Size | 65 |
Material Seat | PTFE |
Pressure Rating | PN20 |
End Type | Threaded |
Sub Category | BALL |
Item Number | 20-00000148 |
Category | Valve |
Execution | Full Bore |
Max temperature | +100°C |
Partslist and details

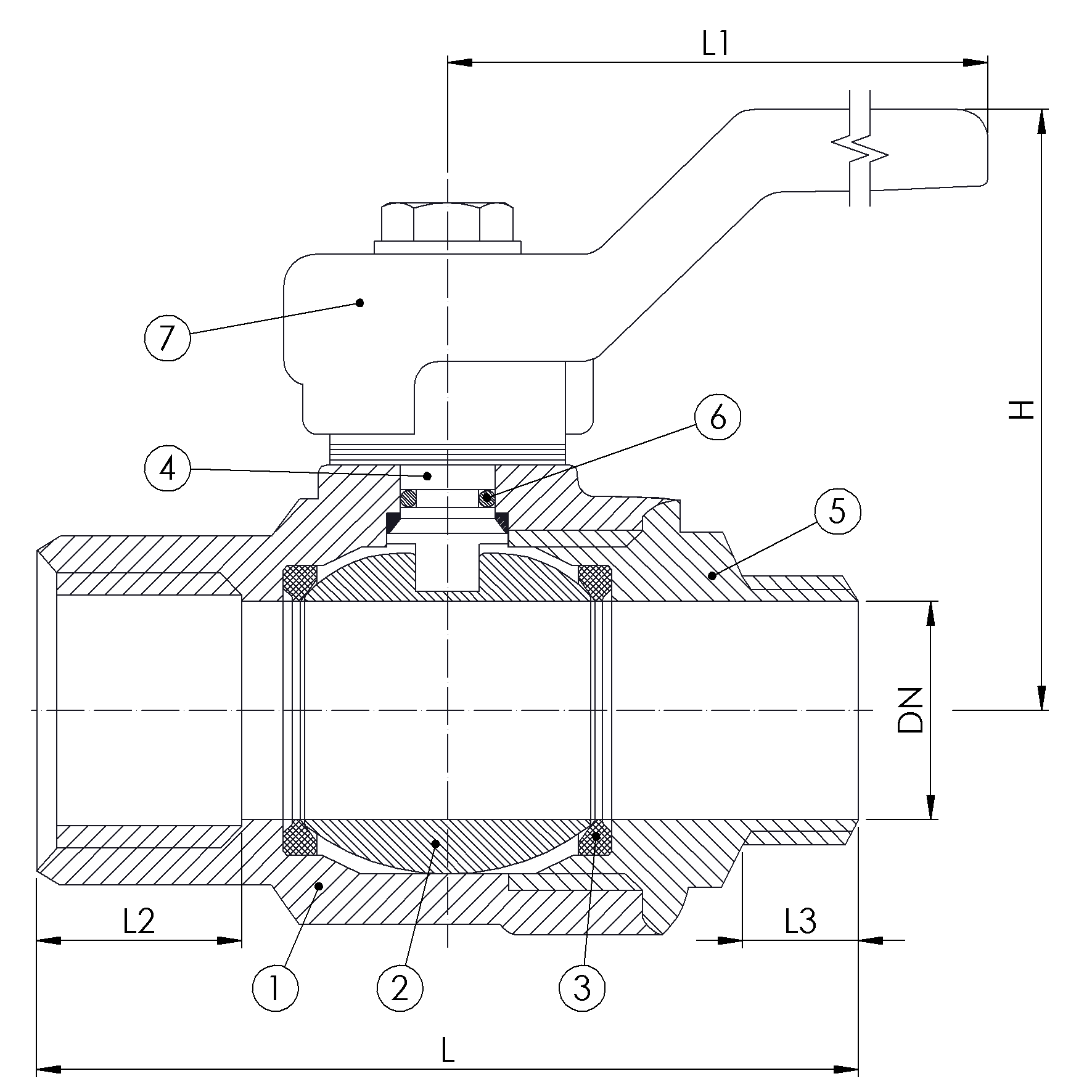

PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Brass | CW617N |
2 | Ball | Chromed Brass | - |
3 | Seat | PTFE | |
4 | Stem | Brass | CW614N |
5 | Body End | Brass | CW617N |
6 | O-ring | NBR | |
7 | Handle | Iron, plastic coated | - |
DETAILS
DN | Pressure Rating Id | Ø D | L | Kg | L1 | Inch | H | L2 |
---|---|---|---|---|---|---|---|---|
65 | 20 | 65 | 135 | 3 | 210 | 2 1/2" | 120 | 23 |
