Ball Valve 2" 1000WOG

Straight type
Item No.
20-00000998
Details

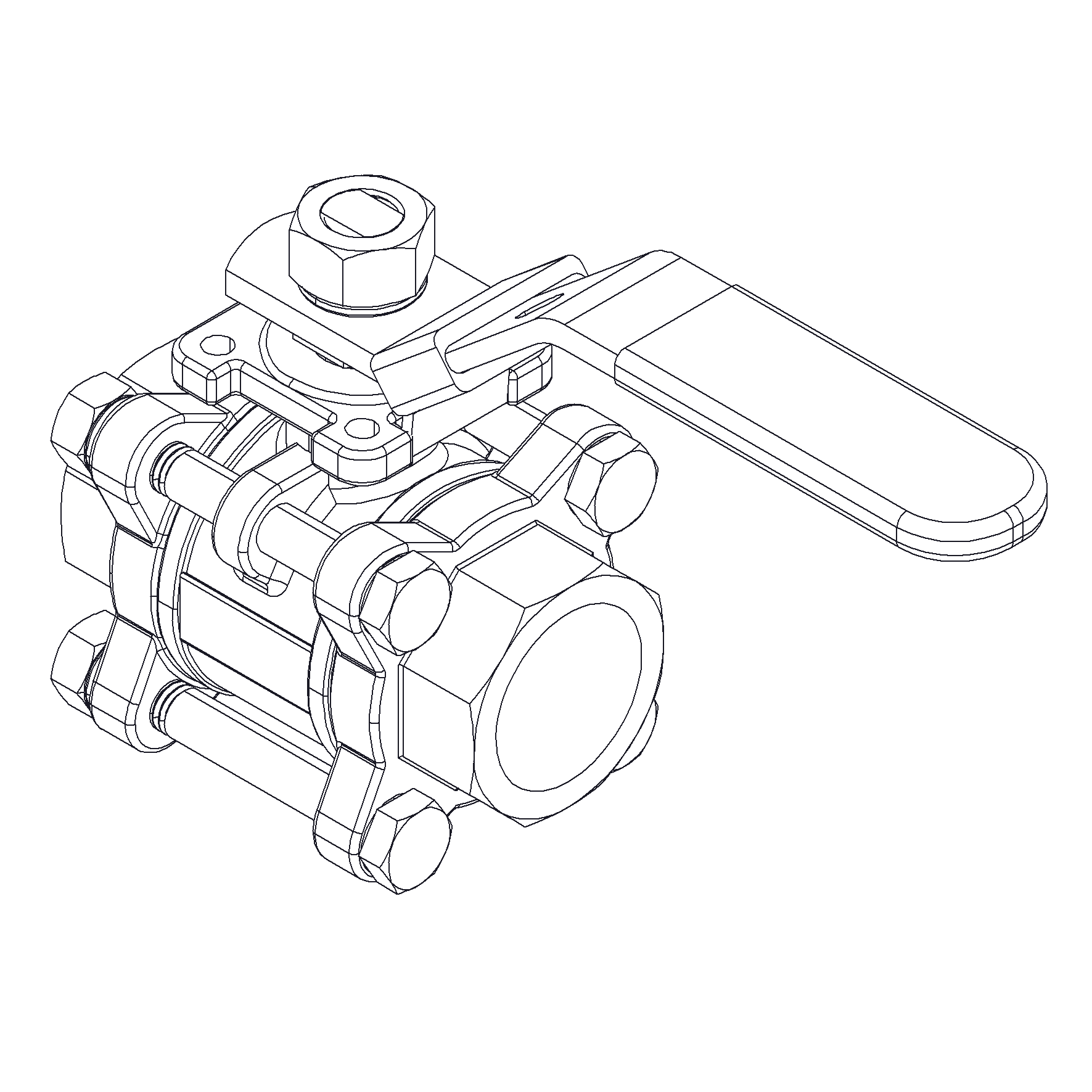

Three piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Standardized pattern for actuator mounting. Female threaded ends.
More Information
More Information
Price View Price Range
Product Group 440095
Material Body Stainless Steel, 316
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 50
Material Seat CPTFE
Pressure Rating 1000WOG
End Type Threaded
Sub Category BALL
Item Number 20-00000998
Category Valve
Top Flange Standard ISO 5211 - F05 non-direct
Execution Full Bore
Partslist and details

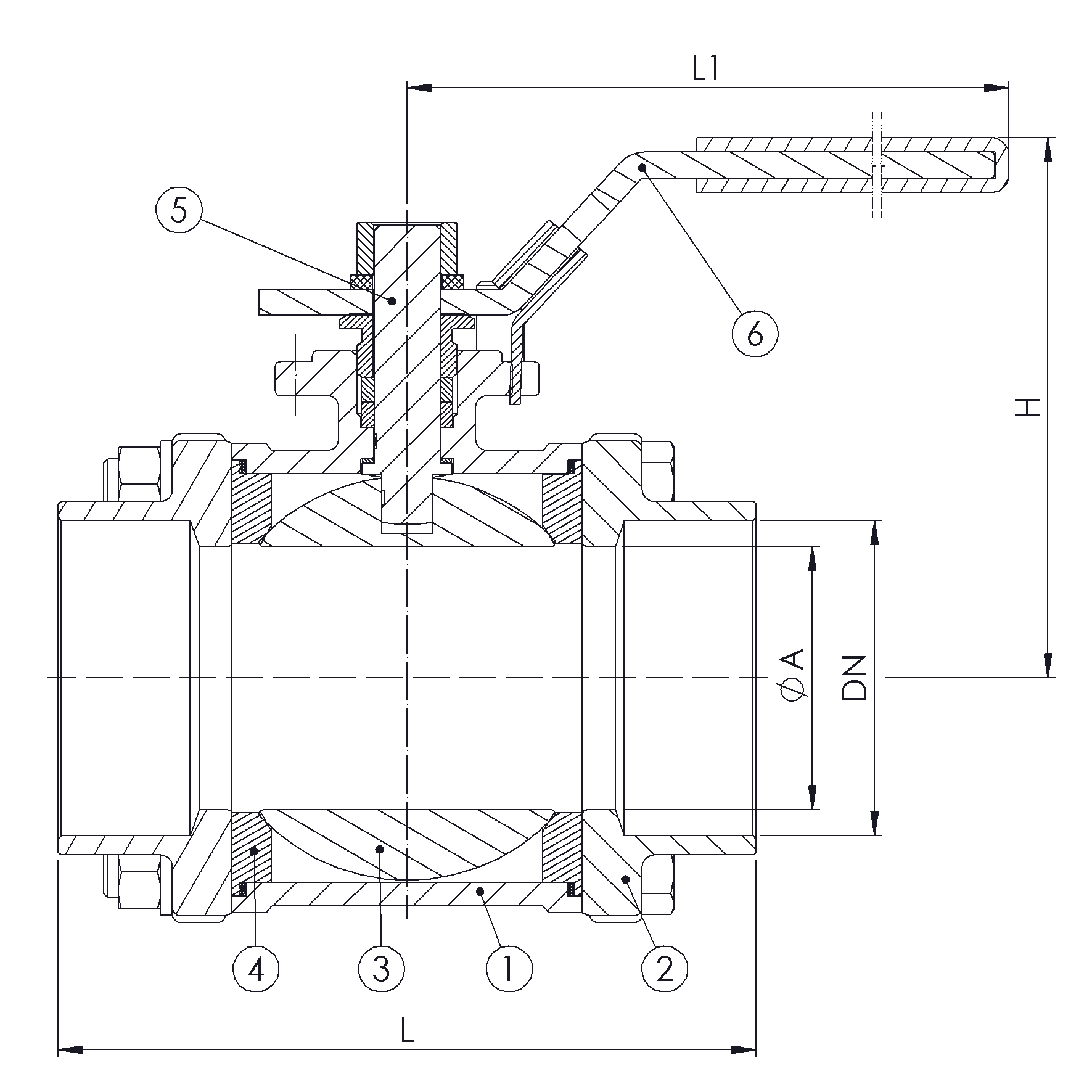

PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat CPTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 430


DETAILS
DN Pressure Rating Id L Kg L1 Inch H Ø A
50 1000 132.2 3.4 165 2" 103 50
