Ball Valve ¼" 1200WOG

Straight type
Item No.
20-00000994
Details

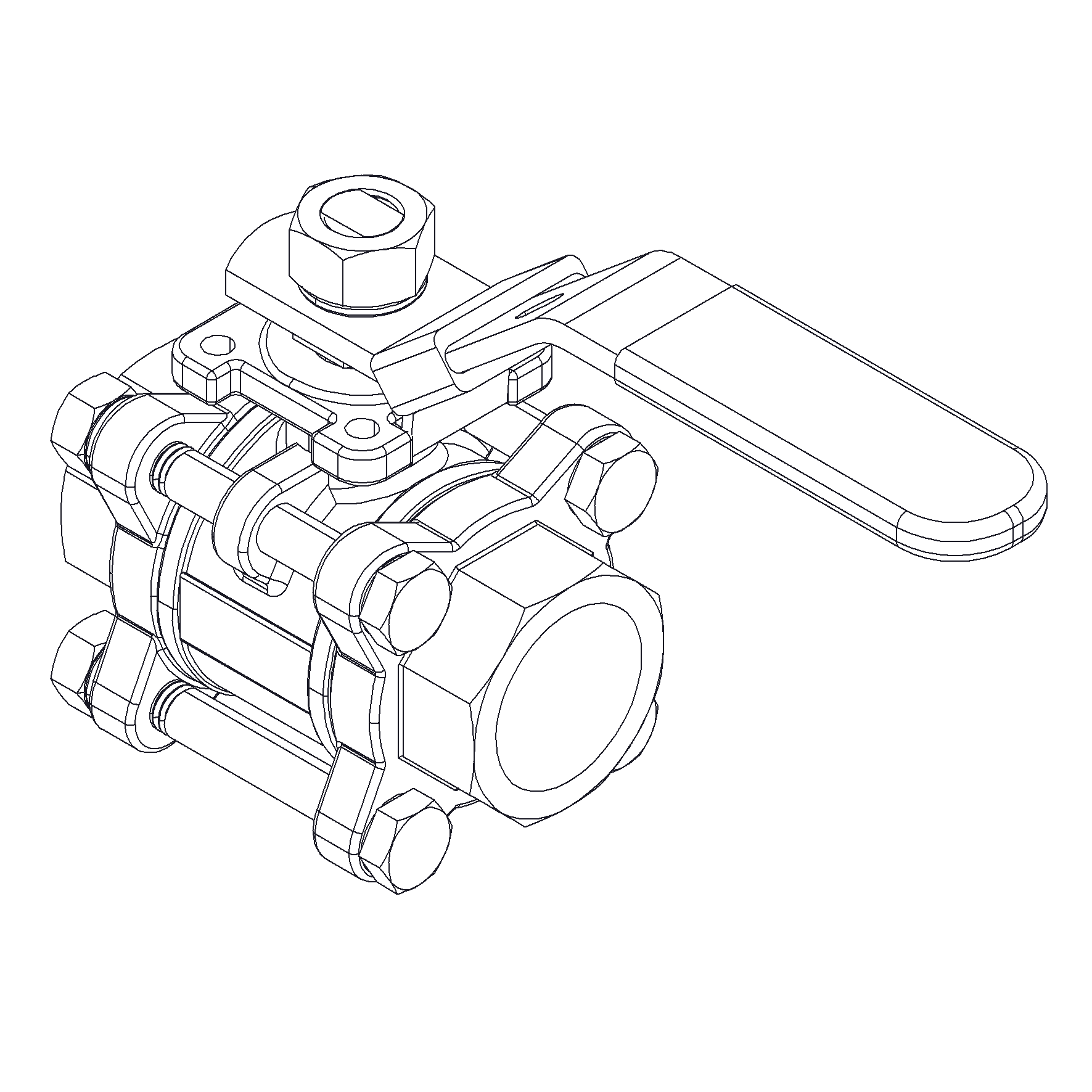

Three piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Standardized pattern for actuator mounting. Female threaded ends.
More Information
More Information
Price View Price Range
Product Group 440095
Material Body Stainless Steel, 316
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 8
Material Seat CPTFE
Pressure Rating 1200WOG
End Type Threaded
Sub Category BALL
Item Number 20-00000994
Category Valve
Top Flange Standard ISO 5211 - F03 non-direct
Execution Full Bore

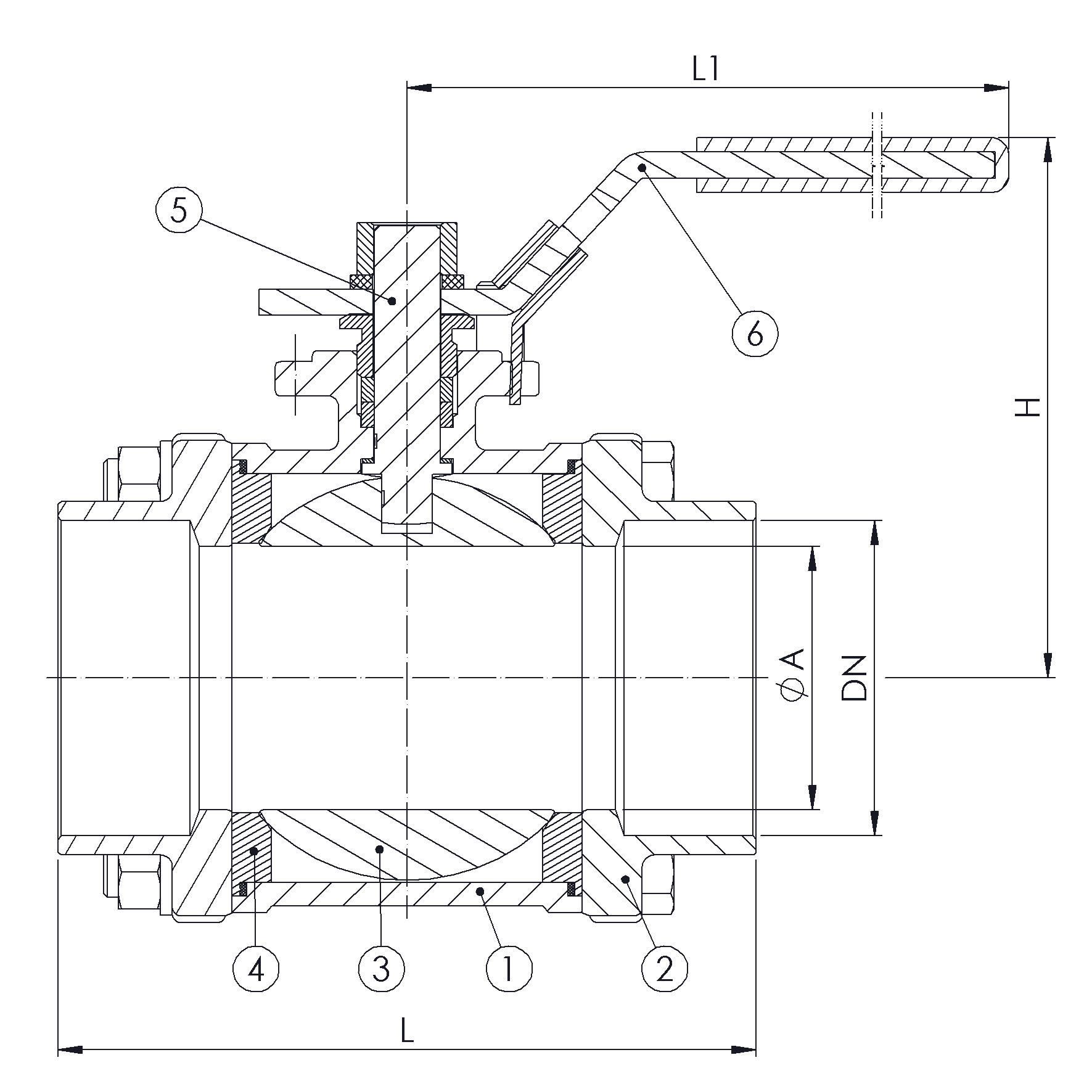

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat CPTFE
5 Stem Stainless Steel AISI 316
6 Handle Stainless Steel, Plastic Cover AISI 430


DETAILS
DN Pressure Rating Id L L1 Inch H Ø A
8 1200 58.2 95 1/4" 55 11.6
