Ball Valve ½" 1200WOG

Straight type
Item No.
20-00000901
Details

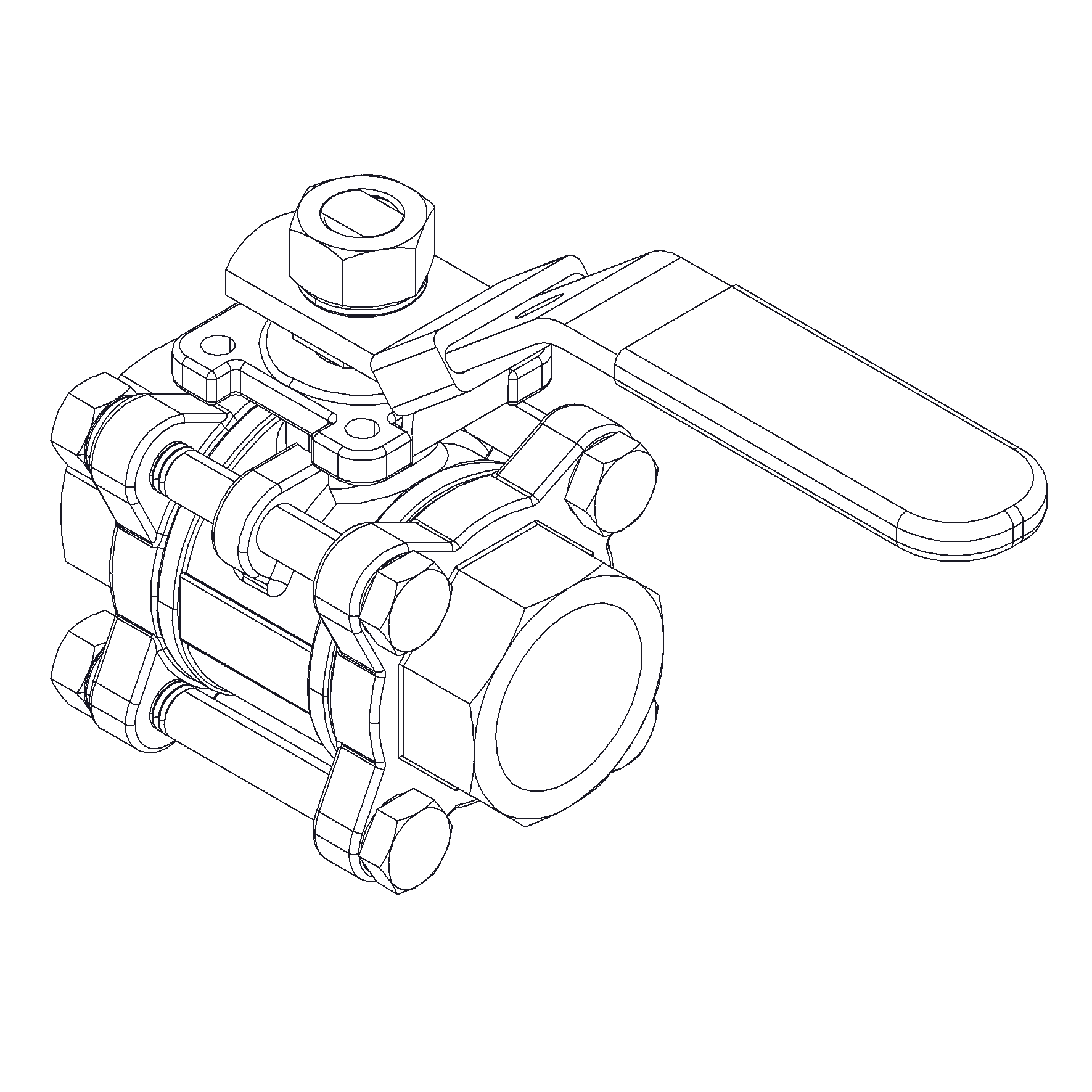

Three piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. BSPP female threaded ends. With non-direct mounting pad.
More Information
More Information
Price View Price Range
Product Group 440095
Material Body Stainless Steel, 316
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 15
Material Seat CPTFE
Pressure Rating 1200WOG
End Type Threaded
Sub Category BALL
Item Number 20-00000901
Category Valve
Top Flange Standard ISO 5211 - F03 non-direct
Execution Full Bore

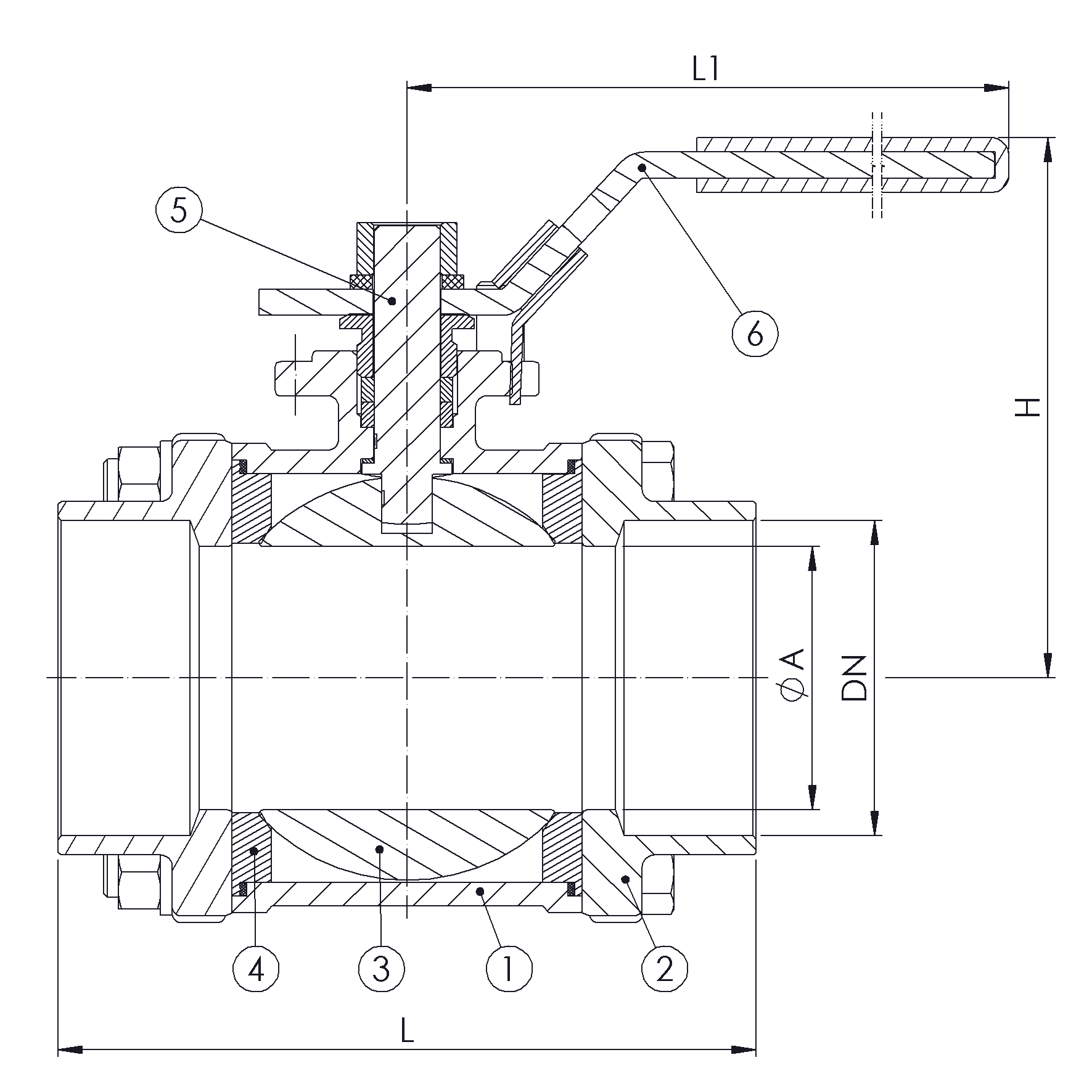

Partslist and details
PARTSLIST
No Part Material Code
6 Handle Stainless Steel, Plastic Cover AISI 430
1 Body Stainless Steel ASTM A351-CF8M
2 Cap Stainless Steel ASTM A351-CF8M
3 Ball Stainless Steel ASTM A351-CF8M
4 Seat CPTFE
5 Stem Stainless Steel AISI 316


DETAILS
DN Pressure Rating Id L Kg L1 Inch H Ø A
15 1200 62 0.5 95 1/2" 60 15
