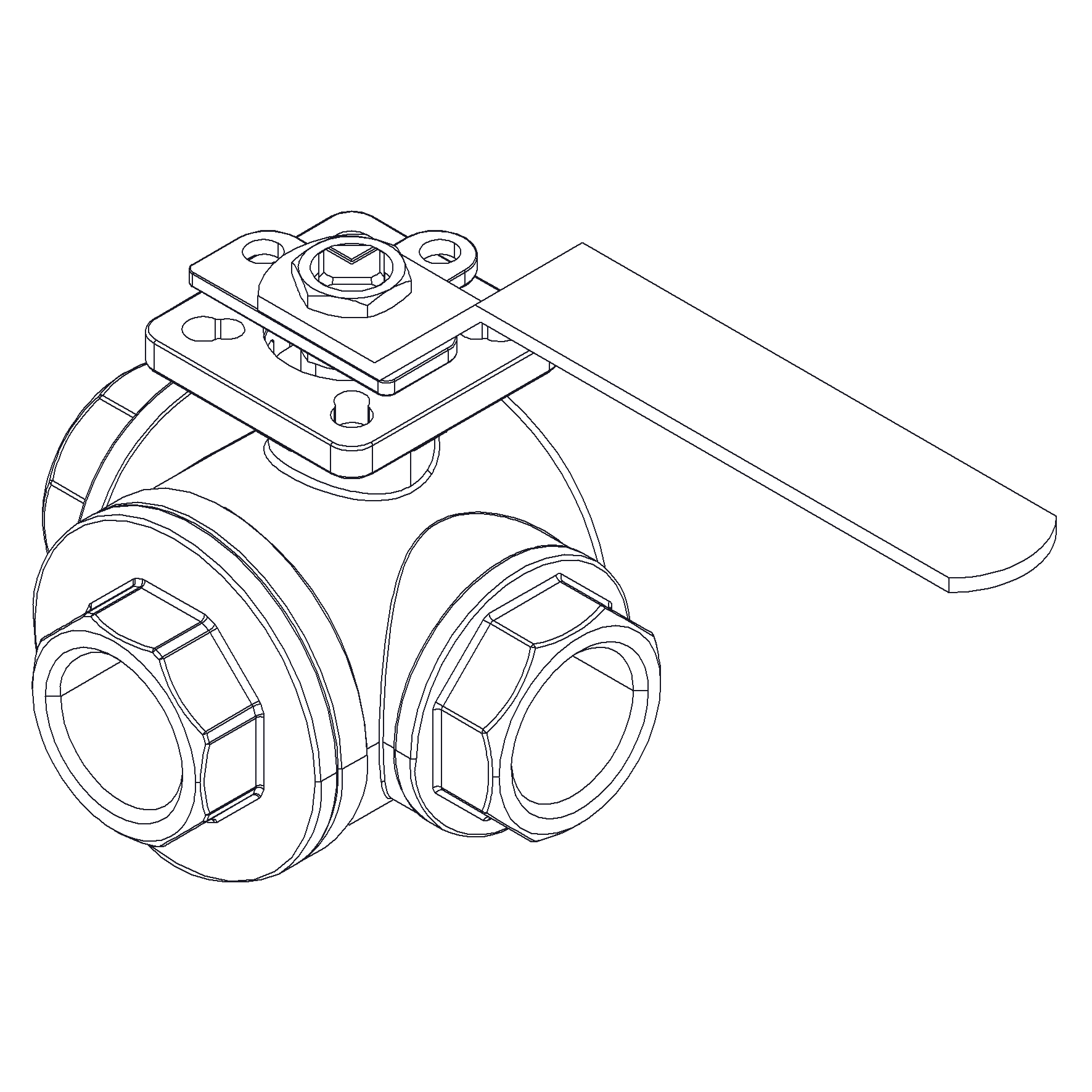

Ball Valve ½" 1000WOG

3-way type - L-port - with direct mouting pad
Item No.
20-00000845
Details
3-way, full bore, Stainless Steel body ball valve with Stainless Steel ball and RPTFE seat. BSPP female threaded ends. With direct mounting pad.
More Information
More Information
Price View Price Range
Product Group 448395
Material Body Stainless Steel, 316
Min temperature -25°C
Throughput Direction 3-way
End Standard ISO 228-1
Design Code ASME B16.34
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 15
Material Seat R-PTFE
Pressure Rating 1000WOG
End Type Threaded
Sub Category BALL
Item Number 20-00000845
Category Valve
Inspection Standard API 598
Top Flange Standard ISO 5211 - F03/F04
Variant L-port
Execution Full Bore
Max temperature +230°C

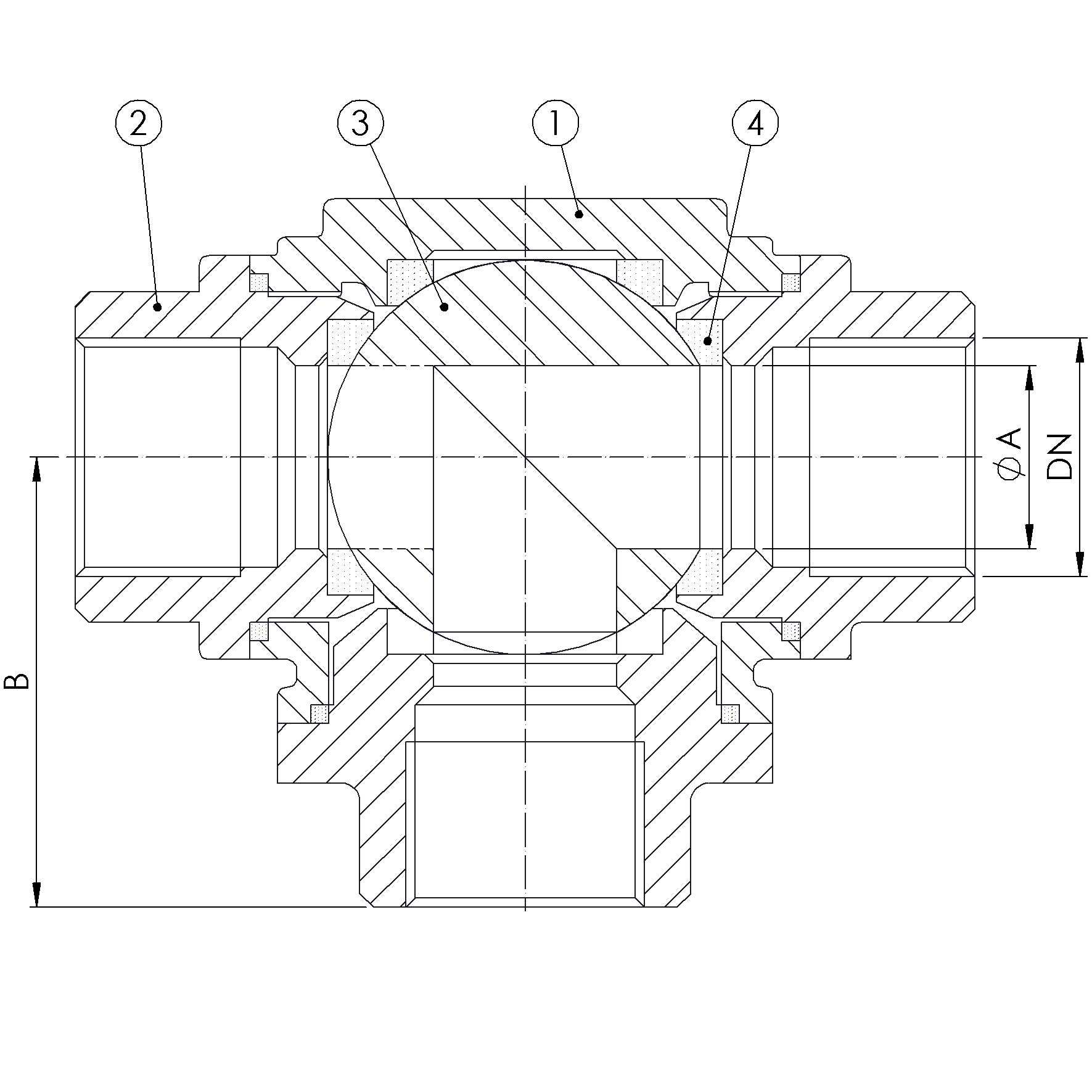

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel A351 Gr. CF8M
2 Cap Stainless Steel A351 Gr. CF8M
3 Ball Stainless Steel SS 316
4 Seat RPTFE
5 Stem Stainless Steel SS 316
6 Handle Stainless Steel, Vinyl Cover SS 304

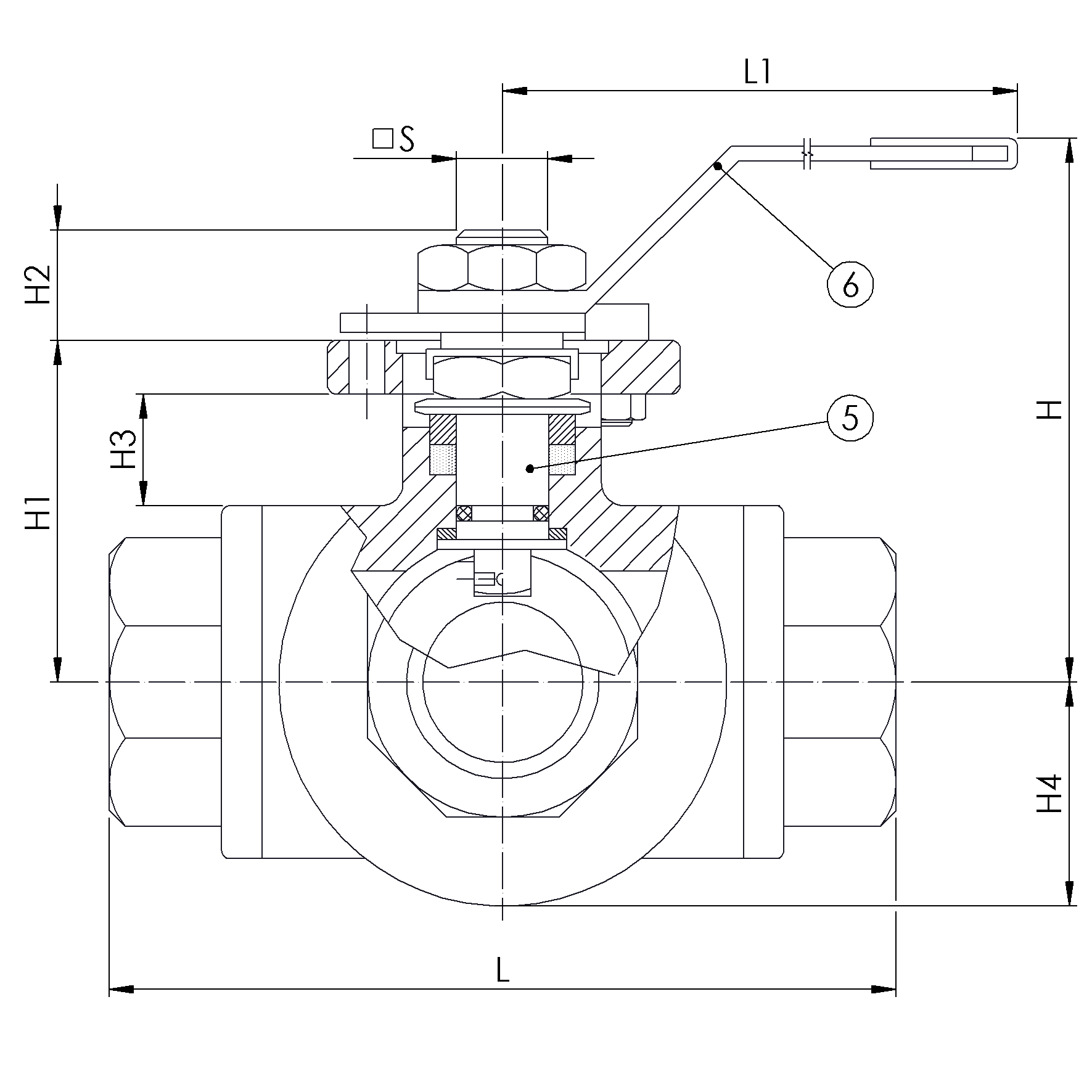

DETAILS
DN Pressure Rating Id L Kg L1 Inch H H1 Ø A B H2 S H4 H3
15 1000 83 0.9 130 1/2" 64 41 15 41.5 11 9 23.2 13.4
