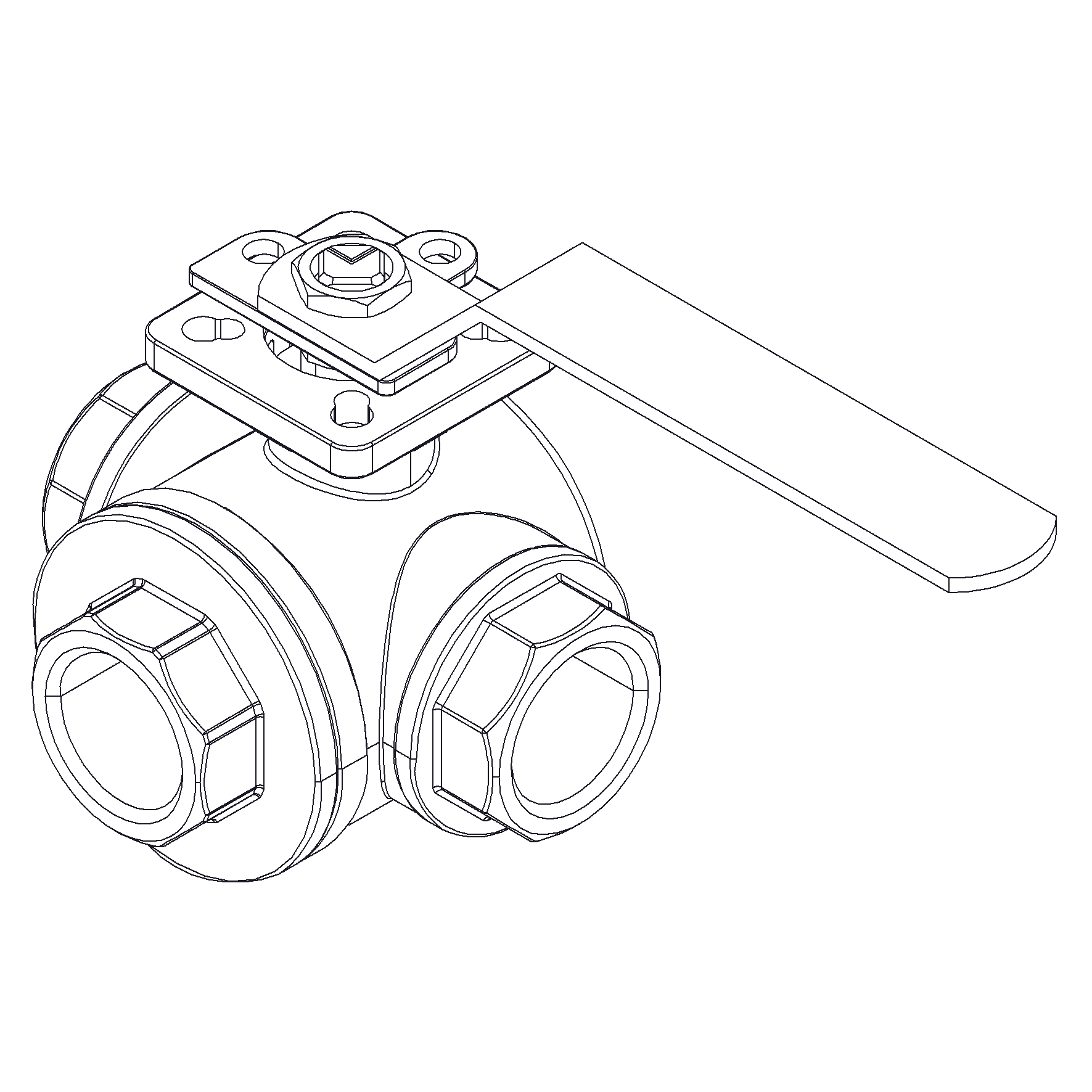

Ball Valve ¼" 1000WOG

3-way type - T-port - with direct mouting pad
Item No.
20-00000842
Details
3-way, full bore, Stainless Steel body ball valve with Stainless Steel ball and RPTFE seat. BSPP female threaded ends. With direct mounting pad.
More Information
More Information
Price ViewPrice Range
Product Group448395
End StandardISO 228-1
Inspection StandardAPI 598
Min temperature-25°C
Top Flange StandardISO 5211 - F03/F04
Max temperature+230°C
Throughput Direction3-way
ExecutionFull Bore
VariantT-port
Pressure Rating1000WOG
End TypeThreaded
Design CodeASME B16.34
StandardDIN
ApplicationAir, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size8
Material SeatR-PTFE
Material BodyStainless Steel, 316
Sub CategoryBALL
Item Number20-00000842
CategoryValve
Partslist and details

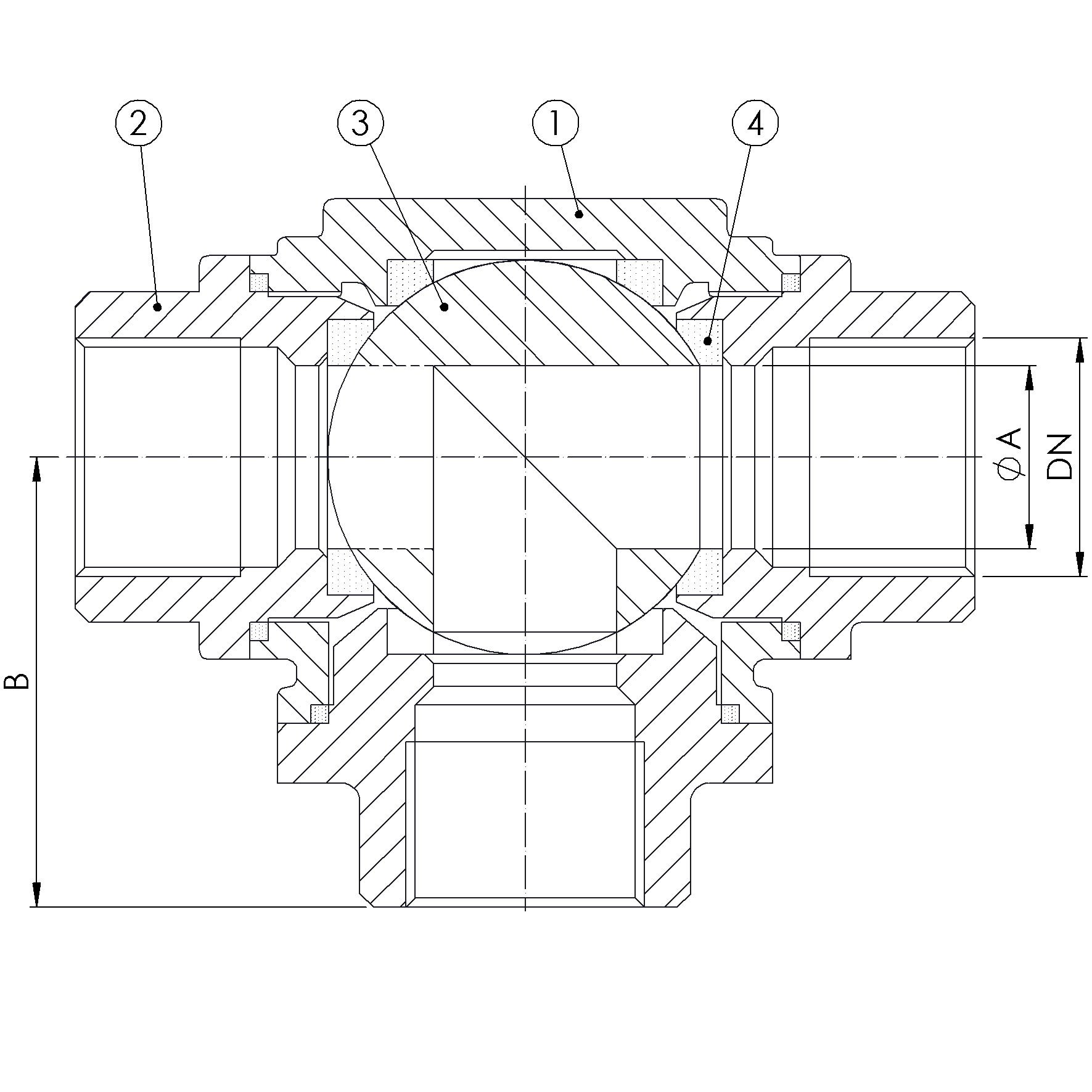

PARTSLIST
No Part Material Code
1 Body Stainless Steel A351 Gr. CF8M
2 Cap Stainless Steel A351 Gr. CF8M
3 Ball Stainless Steel SS 316
4 Seat RPTFE
5 Stem Stainless Steel SS 316
6 Handle Stainless Steel, Vinyl Cover SS 304

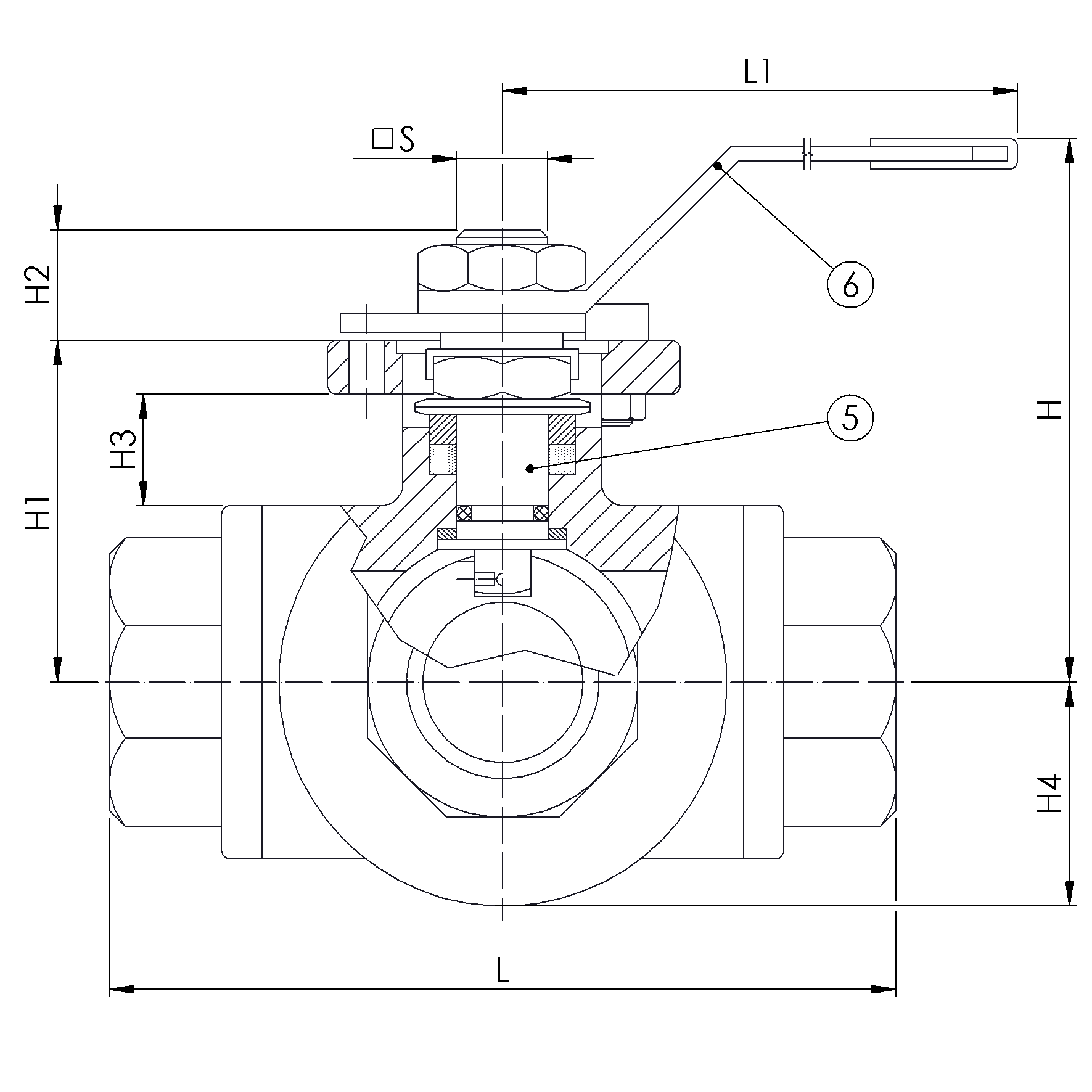

DETAILS
DN Pressure Rating Id L L1 Inch H H1 Ø A B H2 S H4 H3
8 1000 72 130 1/4" 62 38.5 11 36 11 9 20 11.8
