Ball Valve ¾" 1000WOG
Details

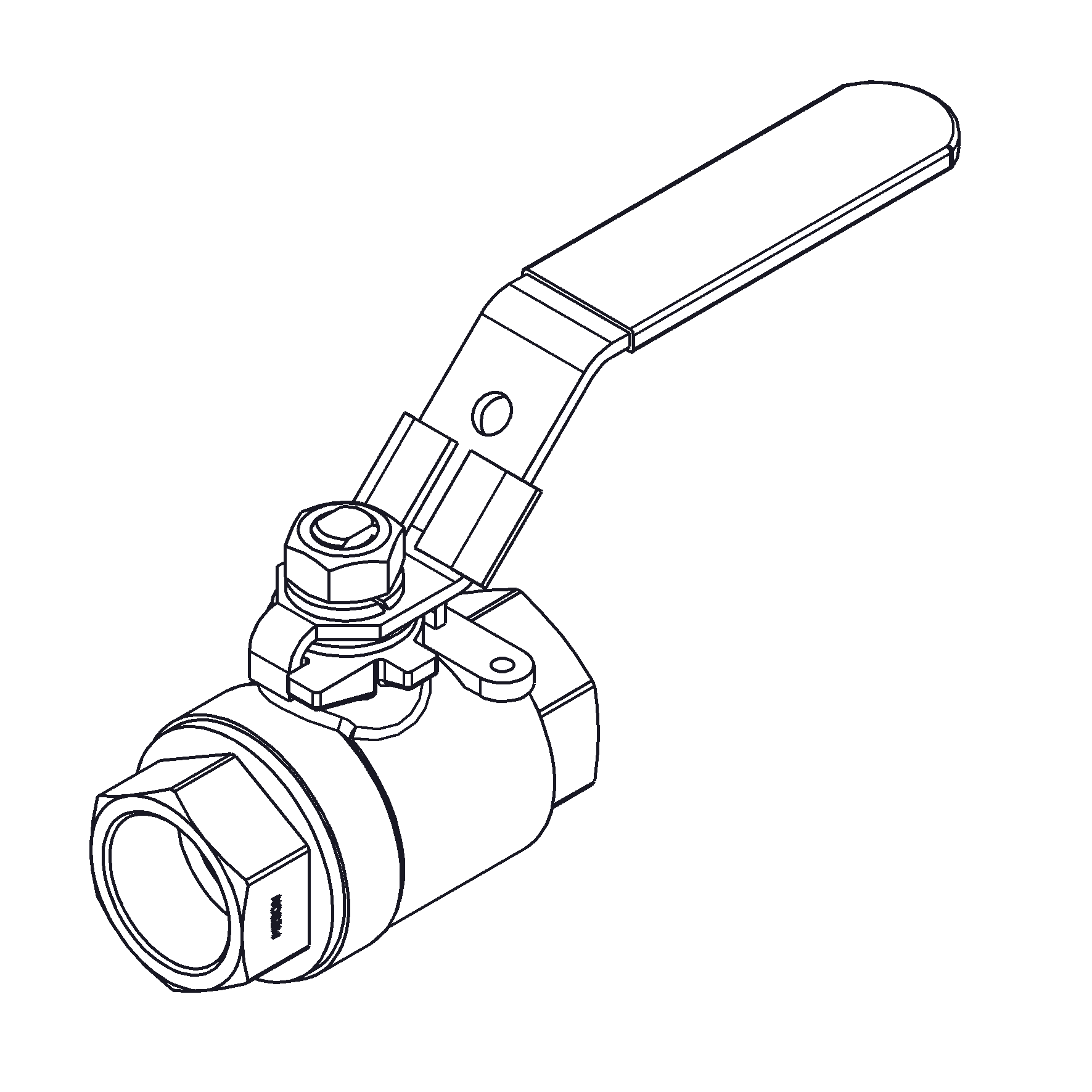

Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 442095 |
| Material Body | Stainless Steel, 316 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 16722 |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 20 |
| Material Seat | PTFE |
| Pressure Rating | 1000WOG |
| End Type | Threaded |
| Sub Category | BALL |
| Item Number | 20-00000166 |
| Category | Valve |
| Inspection Standard | API 598 |
| Execution | Full Bore |
Partslist and details

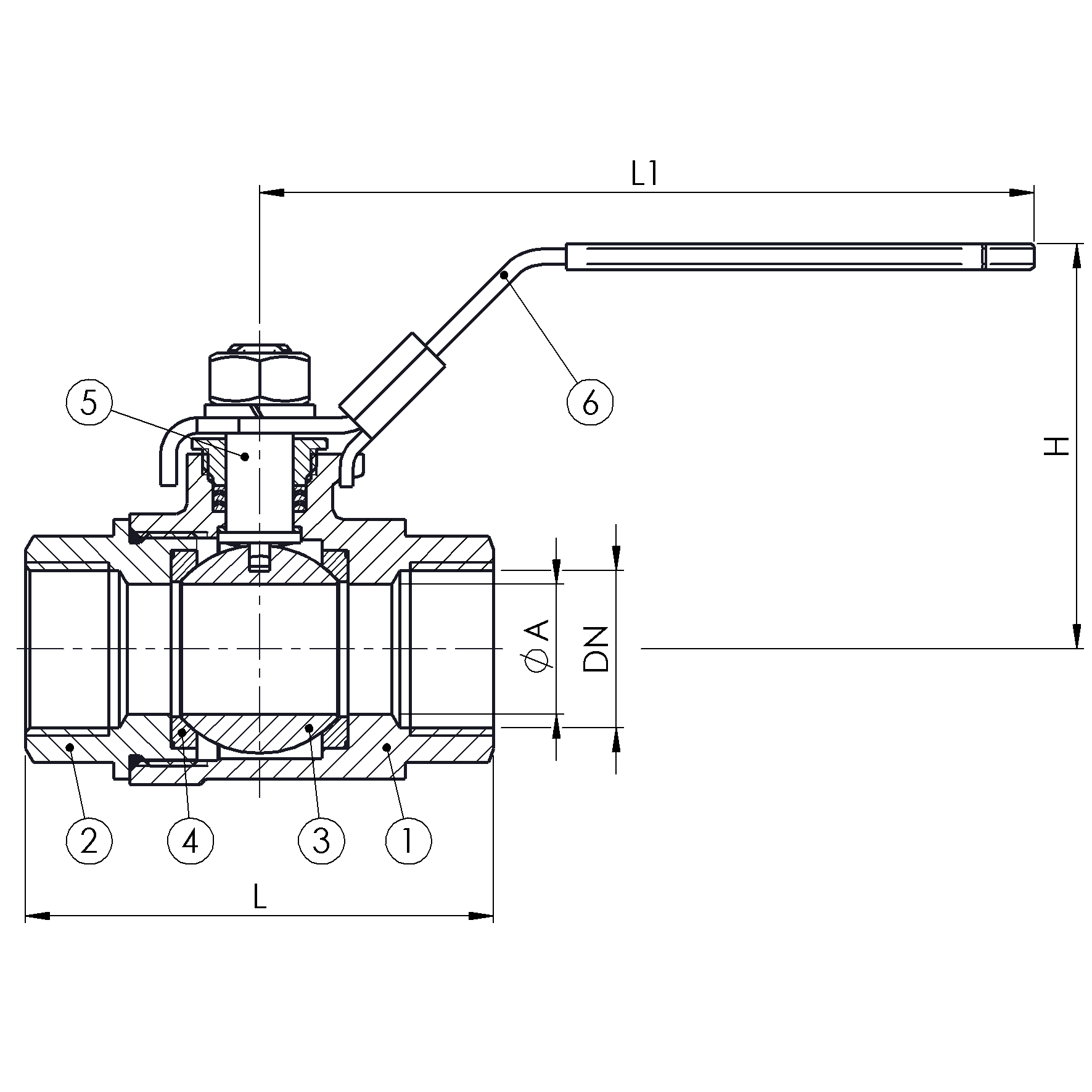

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | ASTM A276-316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 304 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | Ø A |
|---|---|---|---|---|---|---|---|
| 20 | 1000 | 80 | 0.5 | 125 | 3/4" | 63,5 | 20 |
