Ball Valve 1 ½" PN25

Straight type
Item No.
20-00000146
Details
Two piece, full bore, Brass body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.
More Information
More Information
Price View Price Range
Product Group 442013
Material Body Brass
Min temperature -20°C
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size 40
Material Seat PTFE
Pressure Rating PN25
End Type Threaded
Sub Category BALL
Item Number 20-00000146
Category Valve
Execution Full Bore
Max temperature +100°C

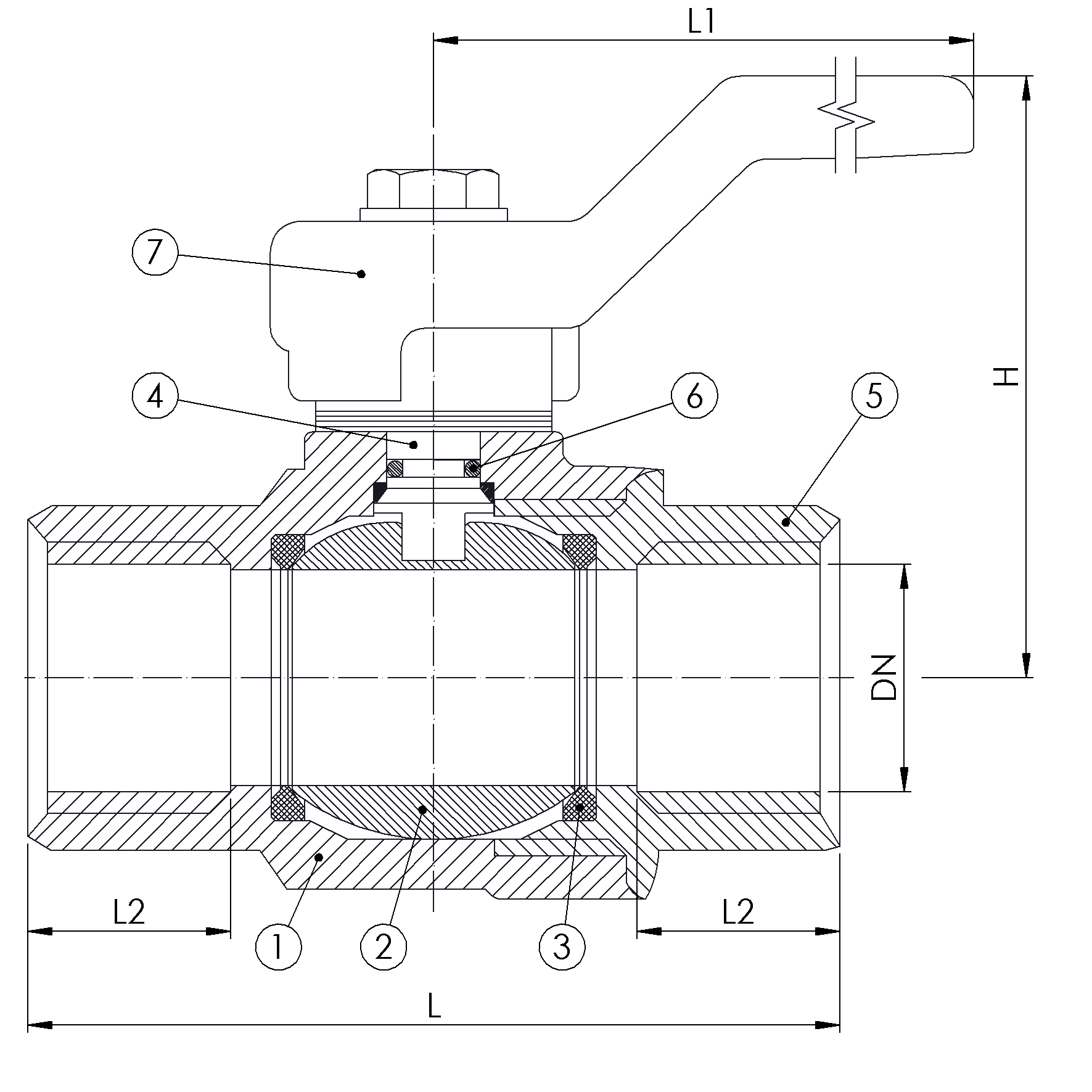

Partslist and details
PARTSLIST
No Part Material Code
1 Body Brass CW617N
2 Ball Chromed Brass -
3 Seat PTFE
4 Stem Brass CW614N
5 Body End Brass CW617N
6 O-ring NBR
7 Handle Iron, plastic coated -


DETAILS
DN Pressure Rating Id Ø D L Kg L1 Inch H L2
40 25 37 85.5 0.9 141 1 1/2" 80 17.5
