Ball Valve 1" 1000WOG
Details

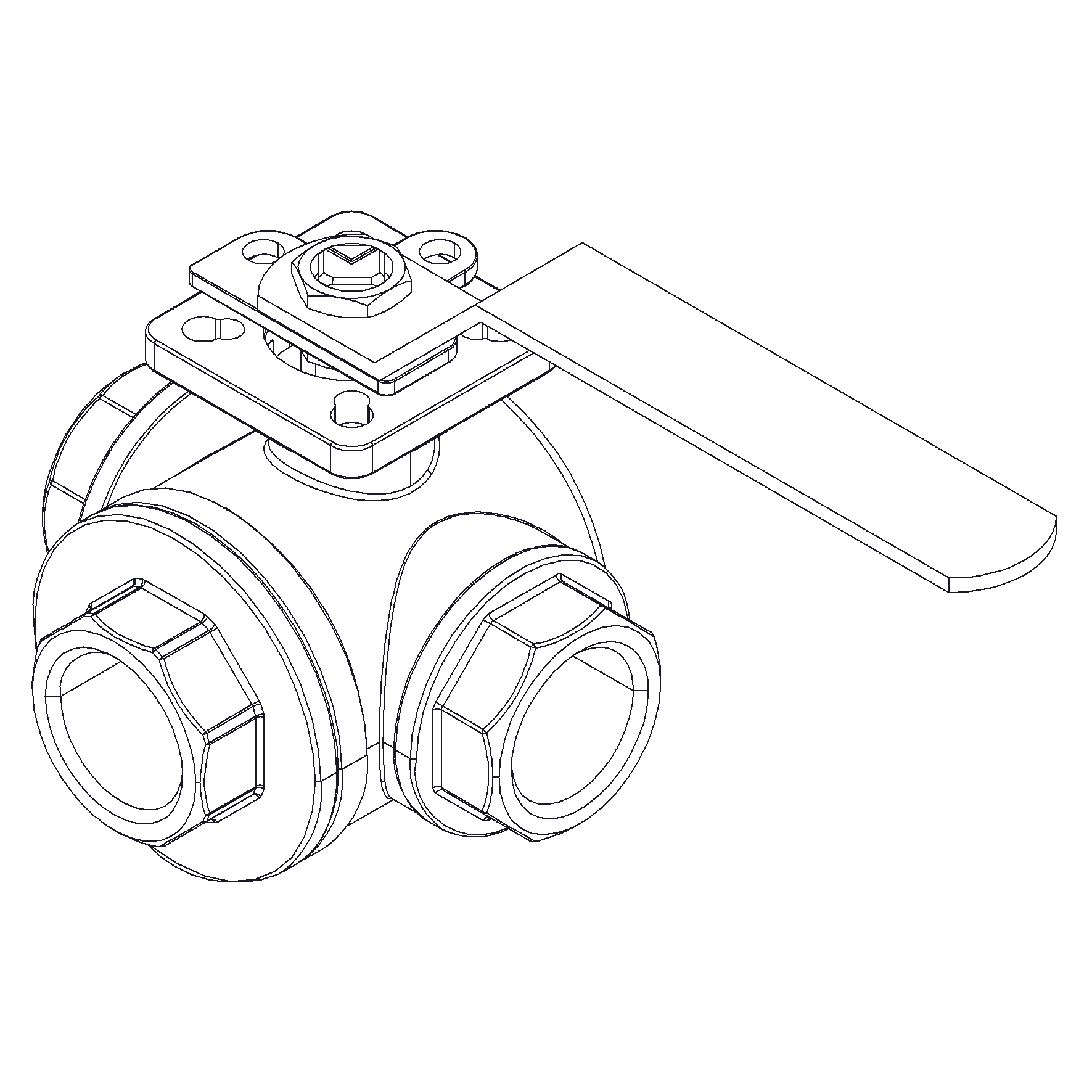

3-way, full bore, Stainless Steel body ball valve with Stainless Steel ball and RPTFE seat. BSPP female threaded ends. With direct mounting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 448395 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -25°C |
| Throughput Direction | 3-way |
| End Standard | ISO 228-1 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 25 |
| Material Seat | R-PTFE |
| Pressure Rating | 1000WOG |
| End Type | Threaded |
| Sub Category | BALL |
| Item Number | 20-00000850 |
| Category | Valve |
| Inspection Standard | API 598 |
| Top Flange Standard | ISO 5211 - F04/F05 |
| Variant | T-port |
| Execution | Full Bore |
| Max temperature | +230°C |
Partslist and details

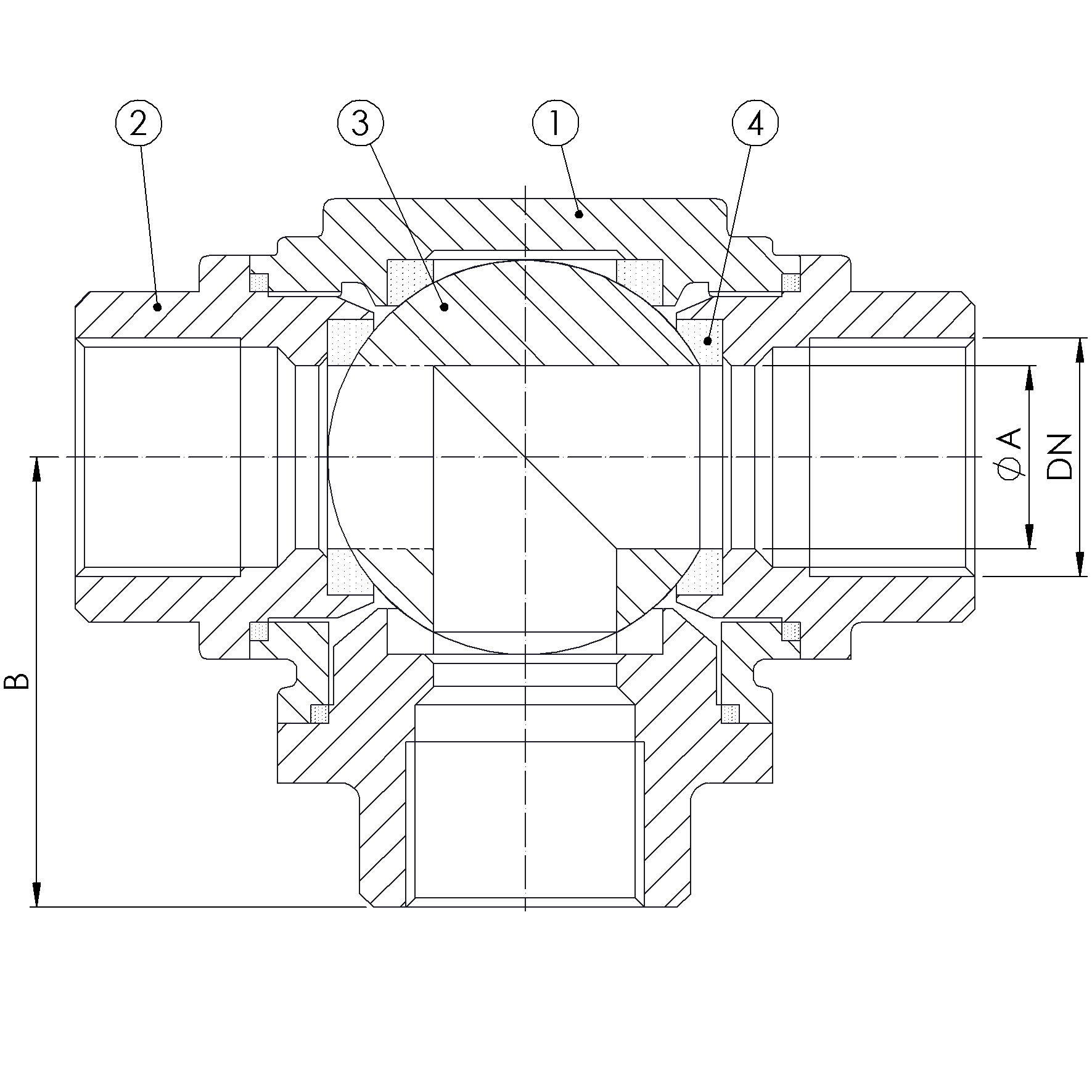

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | A351 Gr. CF8M |
| 2 | Cap | Stainless Steel | A351 Gr. CF8M |
| 3 | Ball | Stainless Steel | SS 316 |
| 4 | Seat | RPTFE | |
| 5 | Stem | Stainless Steel | SS 316 |
| 6 | Handle | Stainless Steel, Vinyl Cover | SS 304 |

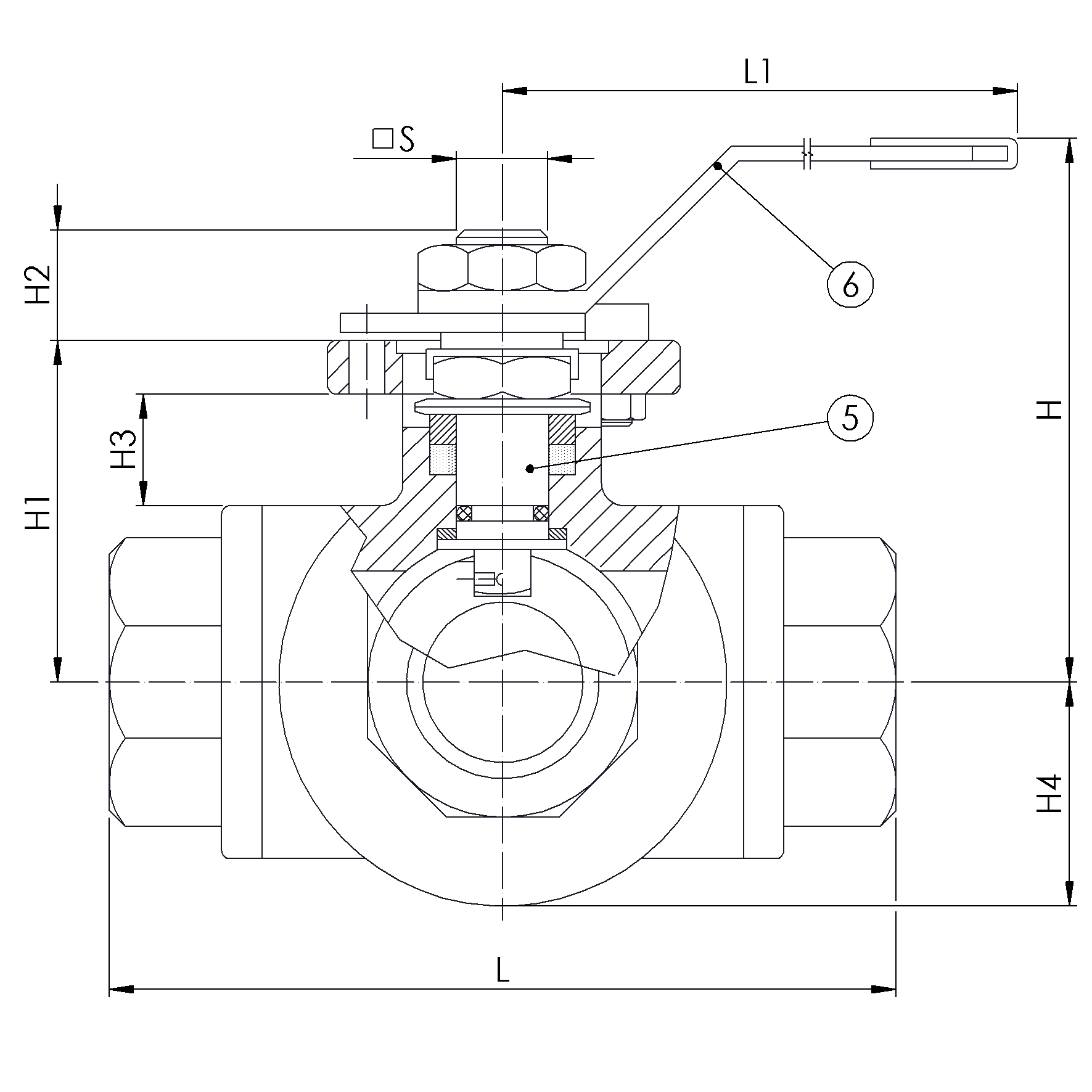

DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | H1 | Ø A | B | H2 | S | H4 | H3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 1000 | 112 | 2.2 | 165 | 1" | 89 | 55 | 25 | 56 | 14 | 11 | 34 | 15 |
