Ball Valve 1" 1000WOG
Details

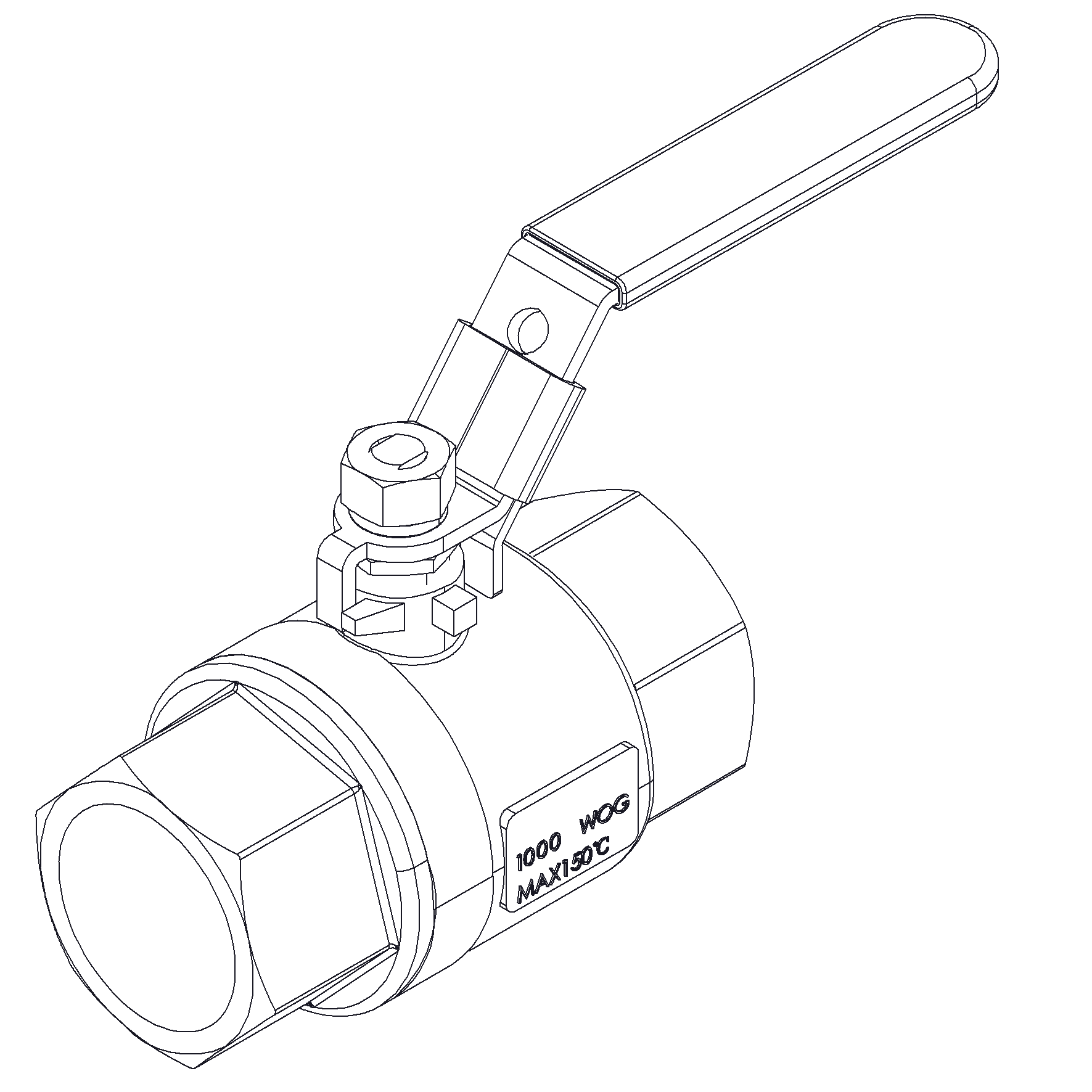

Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. NPT female threaded ends.
More Information
Price View | Price Range |
---|---|
Product Group | 442095 |
Material Body | Stainless Steel, 316 |
Min temperature | -10°C |
Throughput Direction | Straight |
End Standard | ASME B1.20.1 |
Design Code | EN 12516-2 |
Standard | DIN |
Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
Size | 25 |
Material Seat | PTFE |
Pressure Rating | 1000WOG |
End Type | Threaded |
Sub Category | BALL |
Item Number | 20-00000174 |
Category | Valve |
Inspection Standard | API 598 |
Execution | Full Bore |
Max temperature | +150°C |
Partslist and details

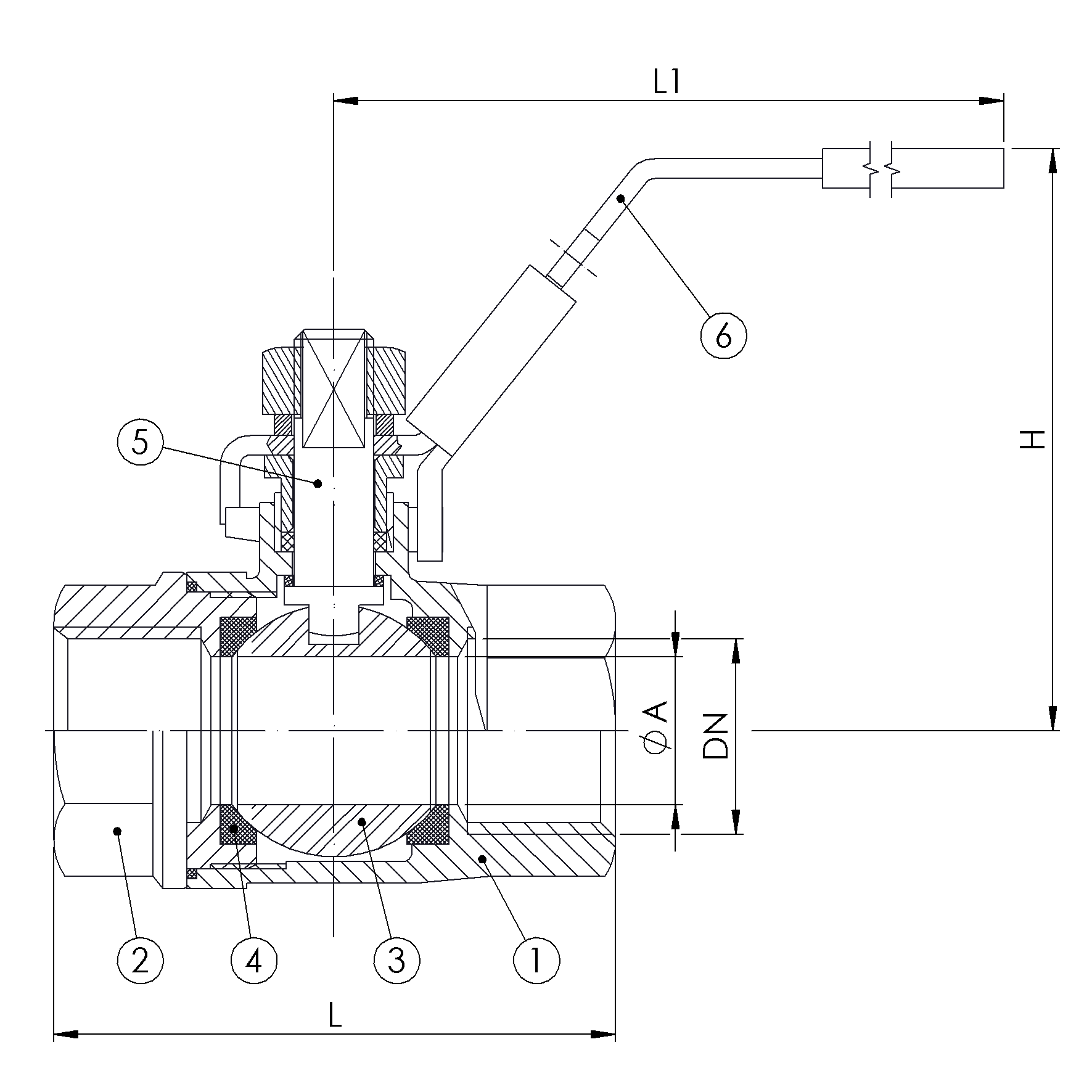

PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Stainless Steel | CF8M |
2 | Cap | Stainless Steel | CF8M |
3 | Ball | Stainless Steel | CF8M |
4 | Seat | PTFE | |
5 | Stem | Stainless Steel | 316 |
6 | Handle | Stainless Steel, Plastic Cover | 304 |
DETAILS
DN | Pressure Rating Id | L | Kg | L1 | Inch | H | Ø A |
---|---|---|---|---|---|---|---|
25 | 1000 | 80 | 0.8 | 128 | 1" | 77 | 25 |
