Air Inlet Valve ½"
Details
Brass body, spring loaded vacuum preveting valve with metallic seal. For prevention of under pressure in piping systems. Male BSPP threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 414212 |
| Material Body | Brass |
| Min temperature | -10°C |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air |
| Size | 15 |
| End Type | Threaded |
| Sub Category | SAFETY |
| Item Number | 220-00000034 |
| Category | Valve |
| Max temperature | +225°C |

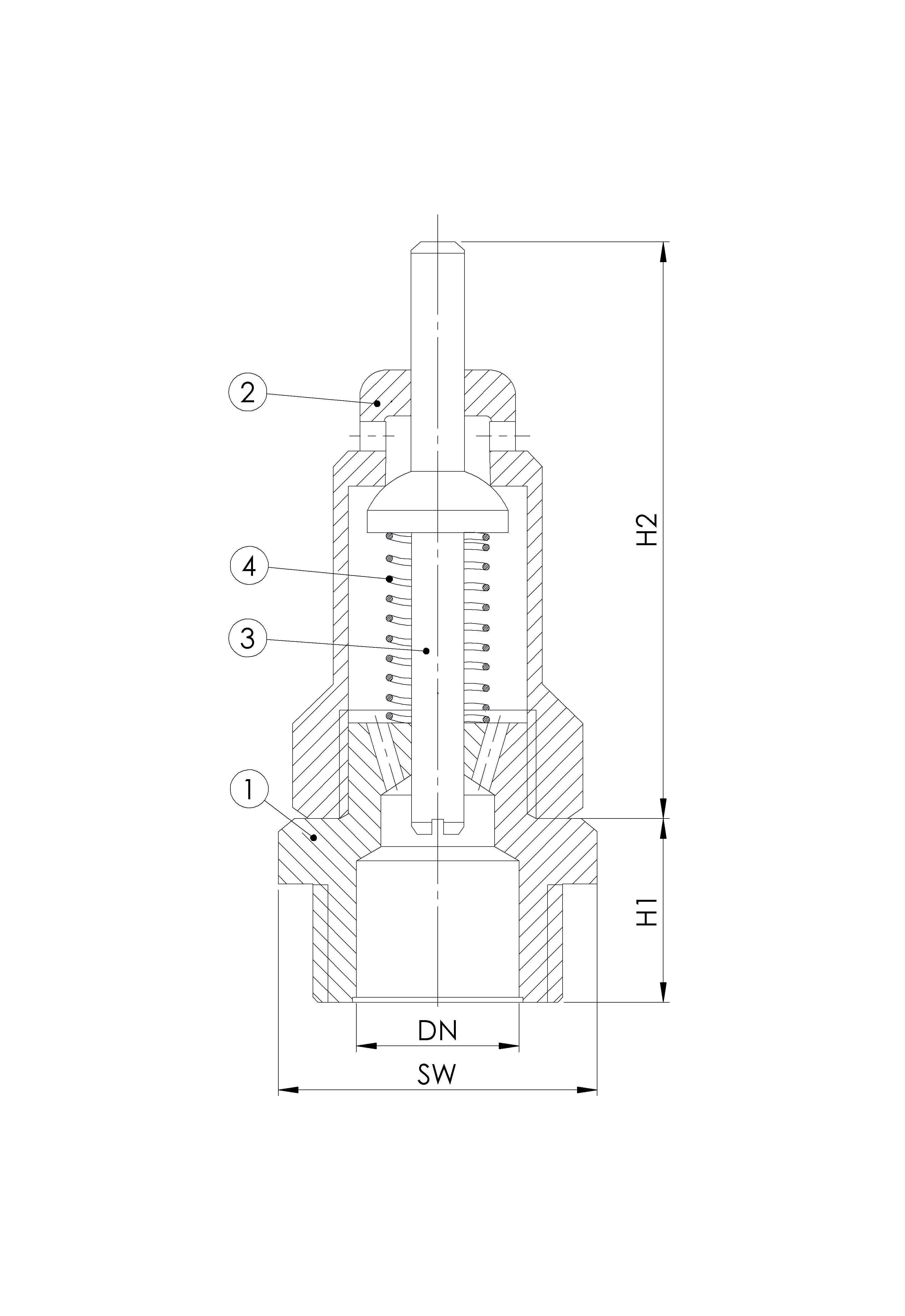

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Brass | CW614N |
| 2 | Cap (with vent holes) | Brass | CW614N |
| 3 | Stem | Brass | CW614N |
| 4 | Spring | Spring Steel | 1.1200 |
DETAILS
| DN | Kg | Inch | H1 | H2 | SW |
|---|---|---|---|---|---|
| 15 | 0.1 | 1/2" | 11 | 55 | 22 |
