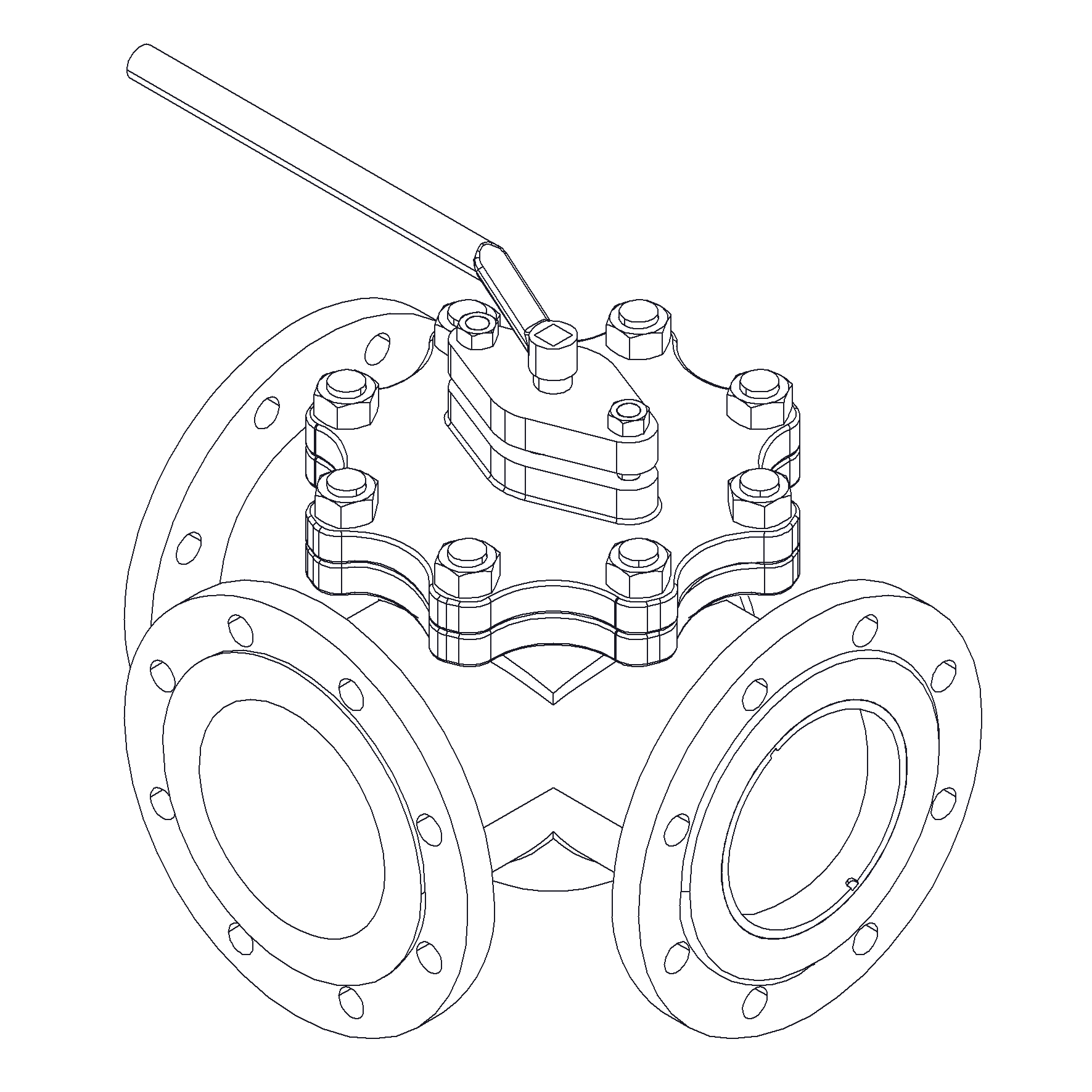

3-way Ball Valve DN15 PN16

3-way type - T-port
Item No.
20-00000795
Details
3-way, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 448162
Material Body Cast Steel
Remark Connection: PN16
Throughput Direction 3-way
End Standard EN 1092-1
Design Code ISO 17292
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 15
Material Seat R-PTFE
Pressure Rating PN16
End Type Flanged
Sub Category BALL
Item Number 20-00000795
Category Valve
Inspection Standard EN 12266
Variant T-port
Execution Full Bore

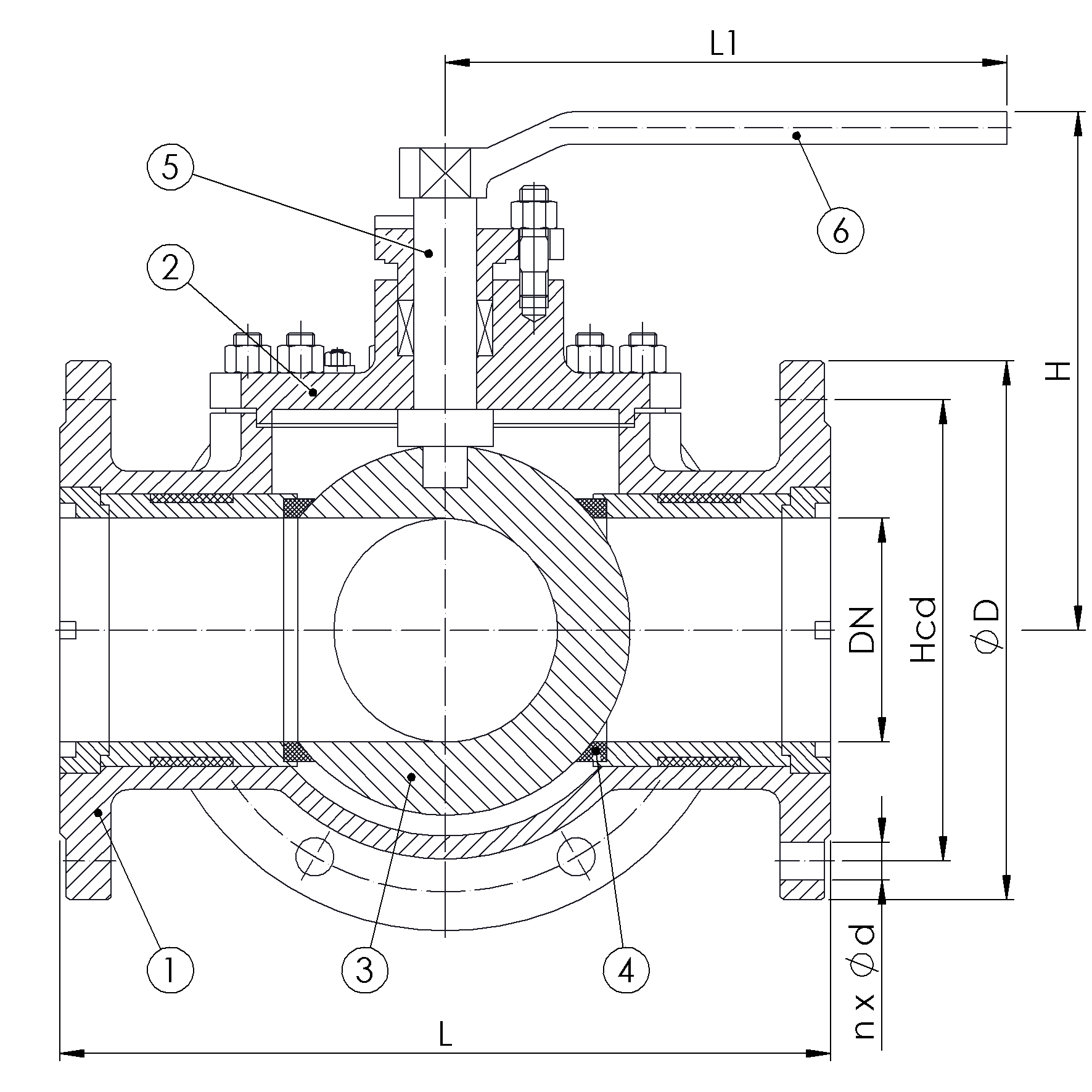

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Bonnet Cast Steel ASTM A216-WCB
3 Ball Stainless Steel ASTM A182-F316
4 Seat RPTFE
5 Stem Stainless Steel ASTM A276-420
6 Handle Carbon Steel


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg L1 H
15 16 4x14 65 95 140 4 140 95
