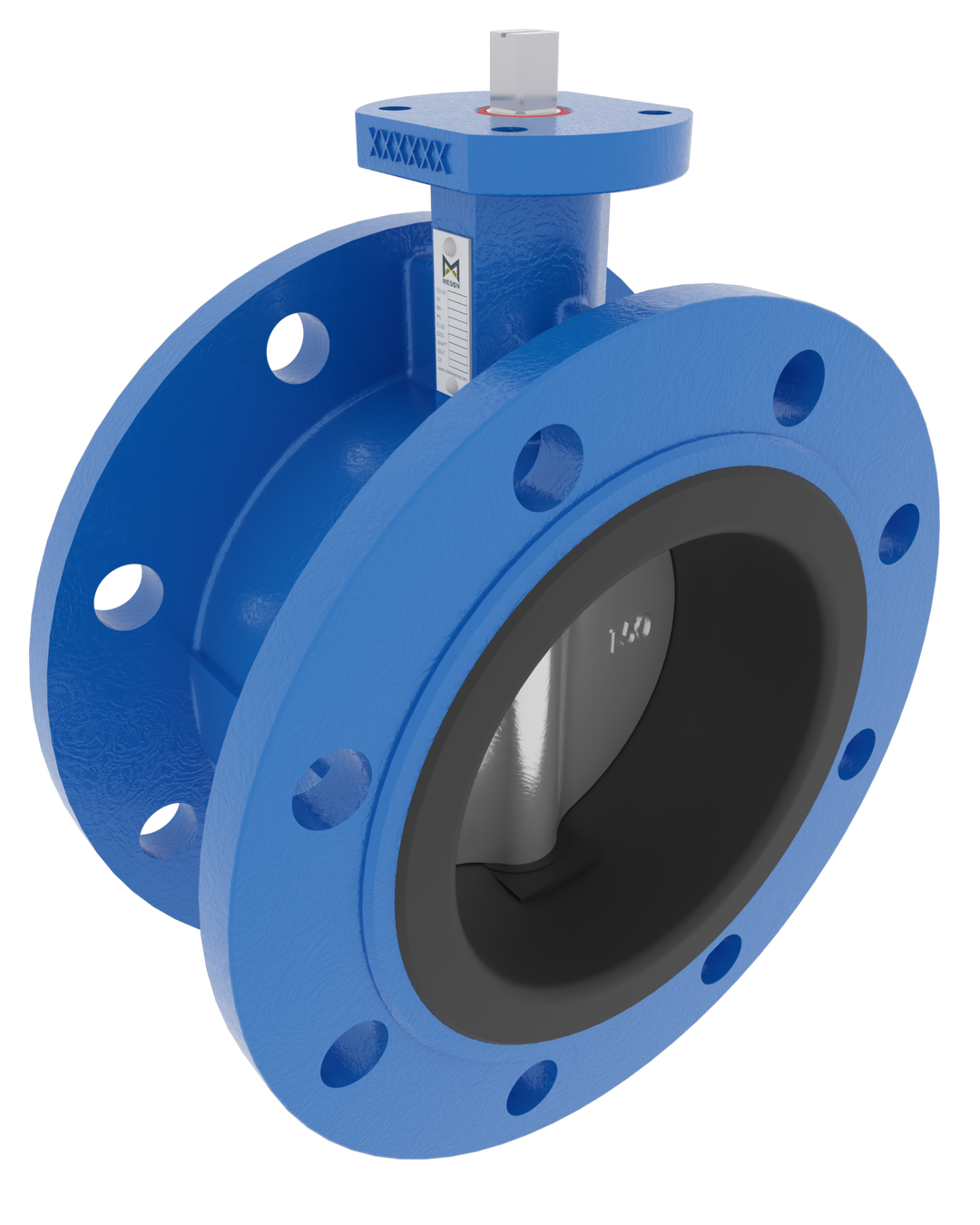

BUTTERFLY VALVE VULCANIZED LINER DOUBLE FLANGED, BARE STEM, DN100, PN16, GGG40.3/1.4469/EPDM
Item No.: 40-00002701Range No.: 703-A5O
Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Material 1
Ductile Iron
Material 2
Stainless Steel
Material 3
EPDM
Actuation
Bare Stem Parallell
Pressure rating
PN16
Connection
PN16
Size
DN100
Standard
DIN
Face to face standard
EN 558, series 13
Min temp Op / peak
-25°C / -35°C
Max temp Op / peak
+100°C / +125°C
Item number
40-00002701
Item number prod
BF03979600
Item ID
703-1157
Model number
731802
