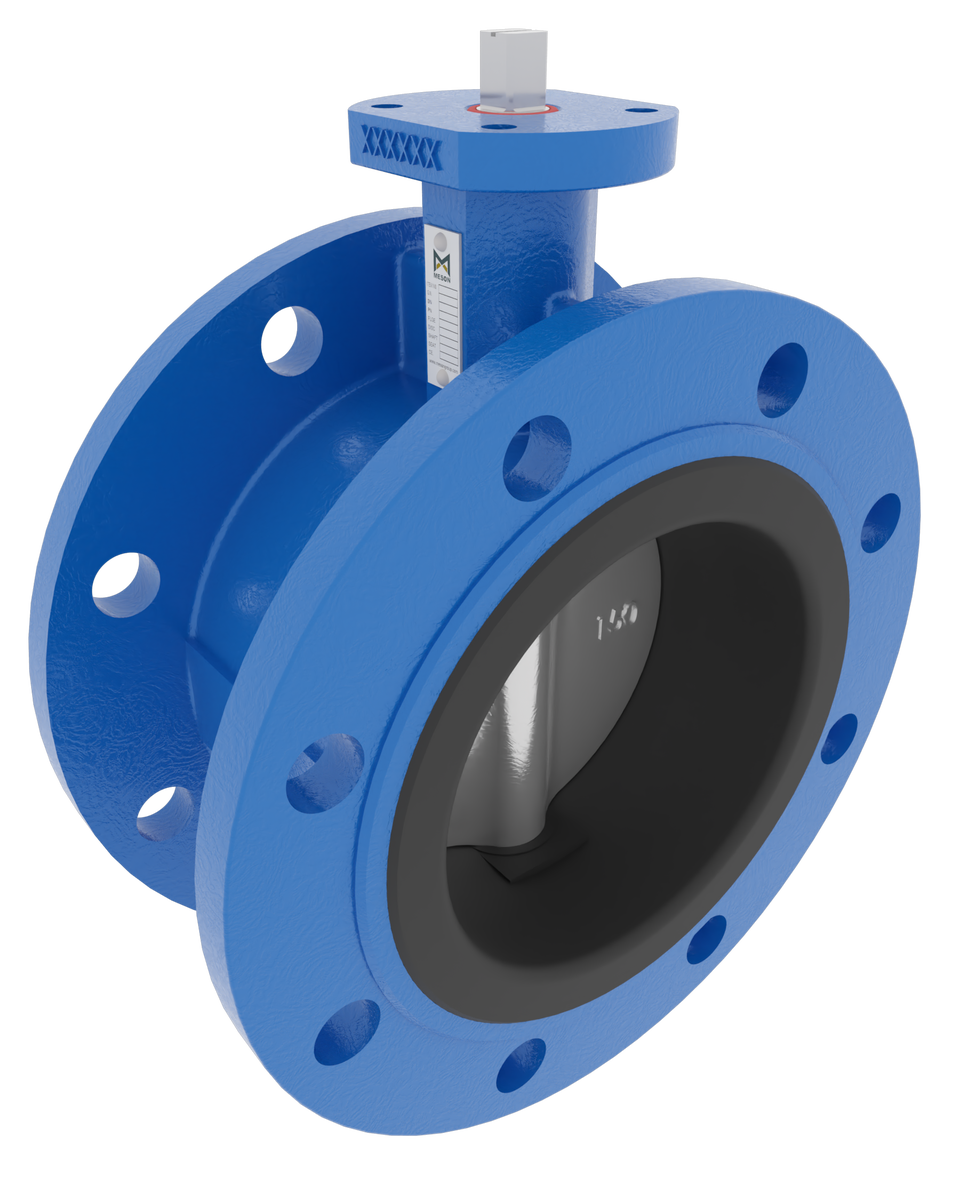

BUTTERFLY VALVE VULCANIZED LINER DOUBLE FLANGED, BARE STEM, GGG40.3/1.4469/EPDM
Range No.: 703-A5O
Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Filter products in
BUTTERFLY VALVE VULCANIZED LINER DOUBLE FLANGED, BARE STEM, GGG40.3/1.4469/EPDM
Pressure rating
Connection
Size
Variants
| Item no. | Size | Pressure rating | Connection | L | |||
|---|---|---|---|---|---|---|---|
| 40-00002698 | DN50 | PN16 | PN16 | 108 | Go to item | ||
| 40-00002699 | DN65 | PN16 | PN16 | 112 | Go to item | ||
| 40-00002700 | DN80 | PN16 | PN16 | 114 | Go to item | ||
| 40-00002701 | DN100 | PN16 | PN16 | 127 | Go to item | ||
| 40-00002702 | DN125 | PN16 | PN16 | 140 | Go to item | ||
| 40-00002703 | DN150 | PN16 | PN16 | 140 | Go to item | ||
| 40-00002704 | DN200 | PN10 | PN10 | 152 | Go to item | ||
| 40-00002705 | DN250 | PN10 | PN10 | 165 | Go to item | ||
| M35156 | DN300 | PN10 | PN10 | 178 | Go to item | ||
| M35153 | DN350 | PN10 | PN10 | 190 | Go to item | ||
| M35154 | DN400 | PN10 | PN10 | 216 | Go to item | ||
| M35155 | DN450 | PN10 | PN10 | 222 | Go to item | ||
| 40-00002706 | DN500 | PN10 | PN10 | 229 | Go to item | ||
| 40-00002707 | DN600 | PN10 | PN10 | 267 | Go to item |
