BUTTERFLY VALVE VULCANIZED LINER LUG, BARE STEM, GGG40.3/C958/NBR
Range No.: 701-A2U

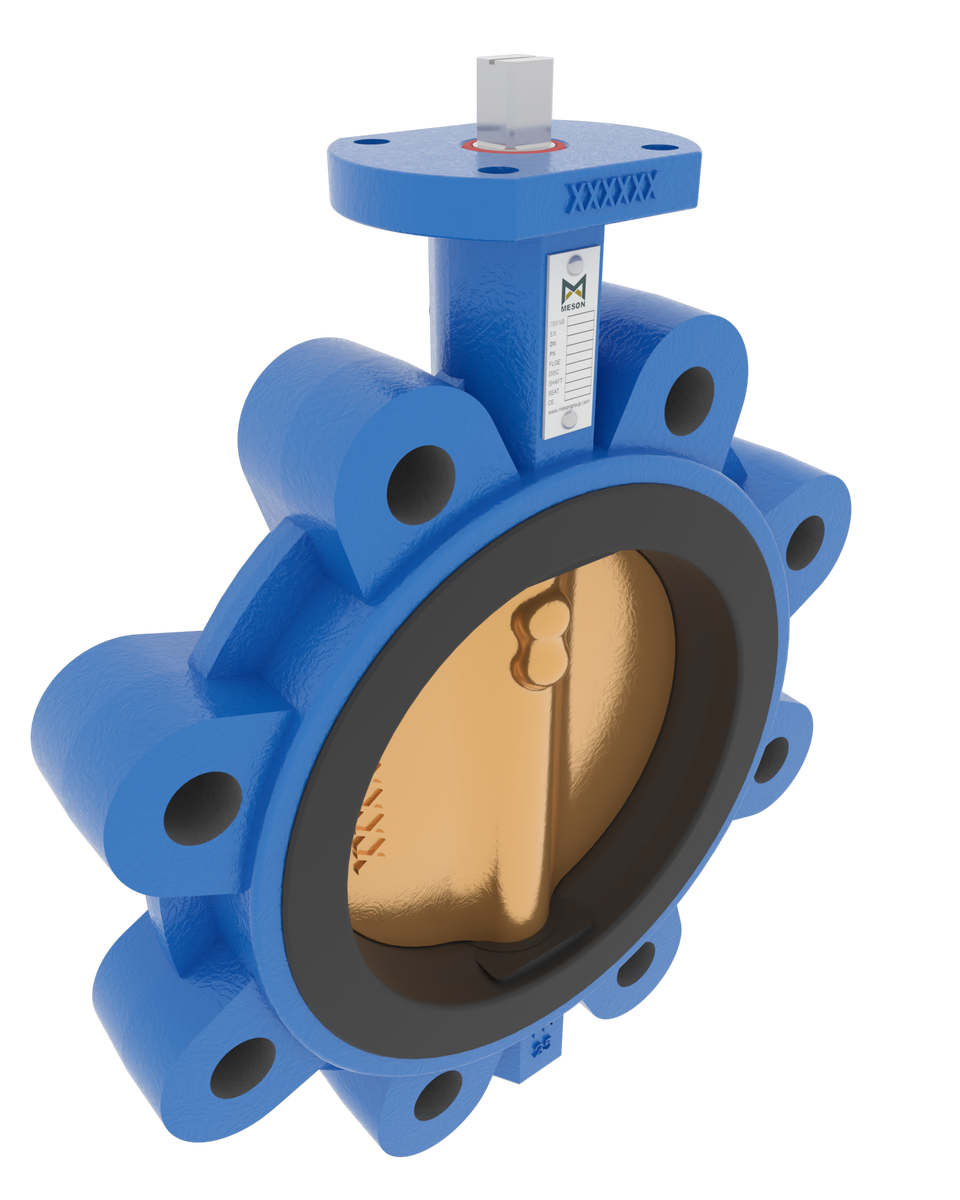

Nodular Cast Iron body, vulcanized liner lugged type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Filter products in
BUTTERFLY VALVE VULCANIZED LINER LUG, BARE STEM, GGG40.3/C958/NBR
Pressure rating
Connection
Size
Variants
| Item no. | Size | Pressure rating | Connection | L | |||
|---|---|---|---|---|---|---|---|
| M34001 | DN40 | PN25 | PN25 | 33 | Go to item | ||
| M34002 | DN50 | PN25 | PN25 | 43 | Go to item | ||
| M34003 | DN65 | PN25 | PN25 | 46 | Go to item | ||
| M34004 | DN80 | PN25 | PN25 | 46 | Go to item | ||
| M34005 | DN100 | PN25 | PN25 | 52 | Go to item | ||
| M34006 | DN125 | PN25 | PN25 | 56 | Go to item | ||
| M34007 | DN150 | PN25 | PN25 | 56 | Go to item | ||
| M34008 | DN200 | PN25 | PN25 | 60 | Go to item | ||
| M34009 | DN250 | PN25 | PN25 | 68 | Go to item | ||
| M33510 | DN40 | PN16 | PN16 | 33 | Go to item | ||
| M33511 | DN50 | PN16 | PN16 | 33 | Go to item | ||
| M33512 | DN65 | PN16 | PN16 | 46 | Go to item | ||
| M33513 | DN80 | PN16 | PN16 | 46 | Go to item | ||
| M33514 | DN100 | PN16 | PN16 | 52 | Go to item | ||
| M33515 | DN125 | PN16 | PN16 | 56 | Go to item | ||
| M33516 | DN150 | PN16 | PN16 | 56 | Go to item | ||
| M34364 | DN200 | PN16 | PN16 | 60 | Go to item | ||
| M33517 | DN200 | PN10 | PN10 | 60 | Go to item | ||
| M33518 | DN250 | PN10 | PN10 | 68 | Go to item | ||
| M33519 | DN300 | PN10 | PN10 | 78 | Go to item | ||
| M33520 | DN350 | PN10 | PN10 | 78 | Go to item | ||
| M33521 | DN400 | PN10 | PN10 | 102 | Go to item | ||
| M33522 | DN450 | PN10 | PN10 | 114 | Go to item | ||
| M33523 | DN500 | PN10 | PN10 | 127 | Go to item | ||
| M33524 | DN600 | PN10 | PN10 | 154 | Go to item | ||
| M33526 | DN800 | PN10 | PN10 | 190 | Go to item |
