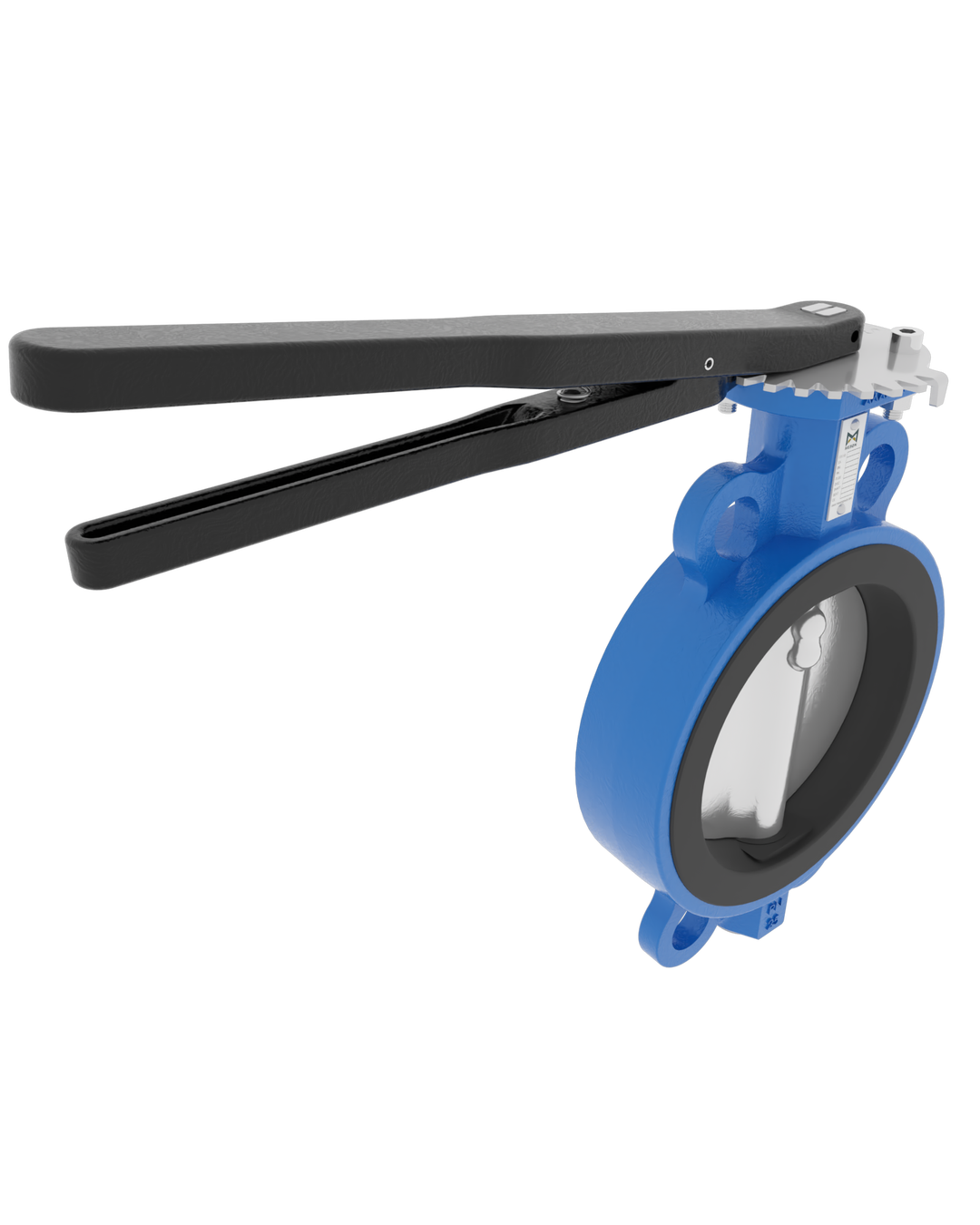

BUTTERFLY VALVE VULCANIZED LINER WAFER, LEVER, DN65, PN16, GGG40.3/AISI316/NBR
Item No.: M34313Range No.: 700-A1B
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Material 1
Ductile Iron
Material 2
Stainless Steel
Material 3
NBR
Actuation
Lever
Pressure rating
PN16
Connection
PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K
Size
DN65
Standard
DIN
Face to face standard
EN 558, series 20
Min temp Op / peak
-15°C / -25°C
Max temp Op / peak
+80°C / +95°C
Item number
M34313
Item number prod
BF03431300
Item ID
700-0027
Model number
700902
