BUTTERFLY VALVE VULCANIZED LINER WAFER, GEARBOX, GGG40.3/C958/EPDM
Range No.: 700-A1X

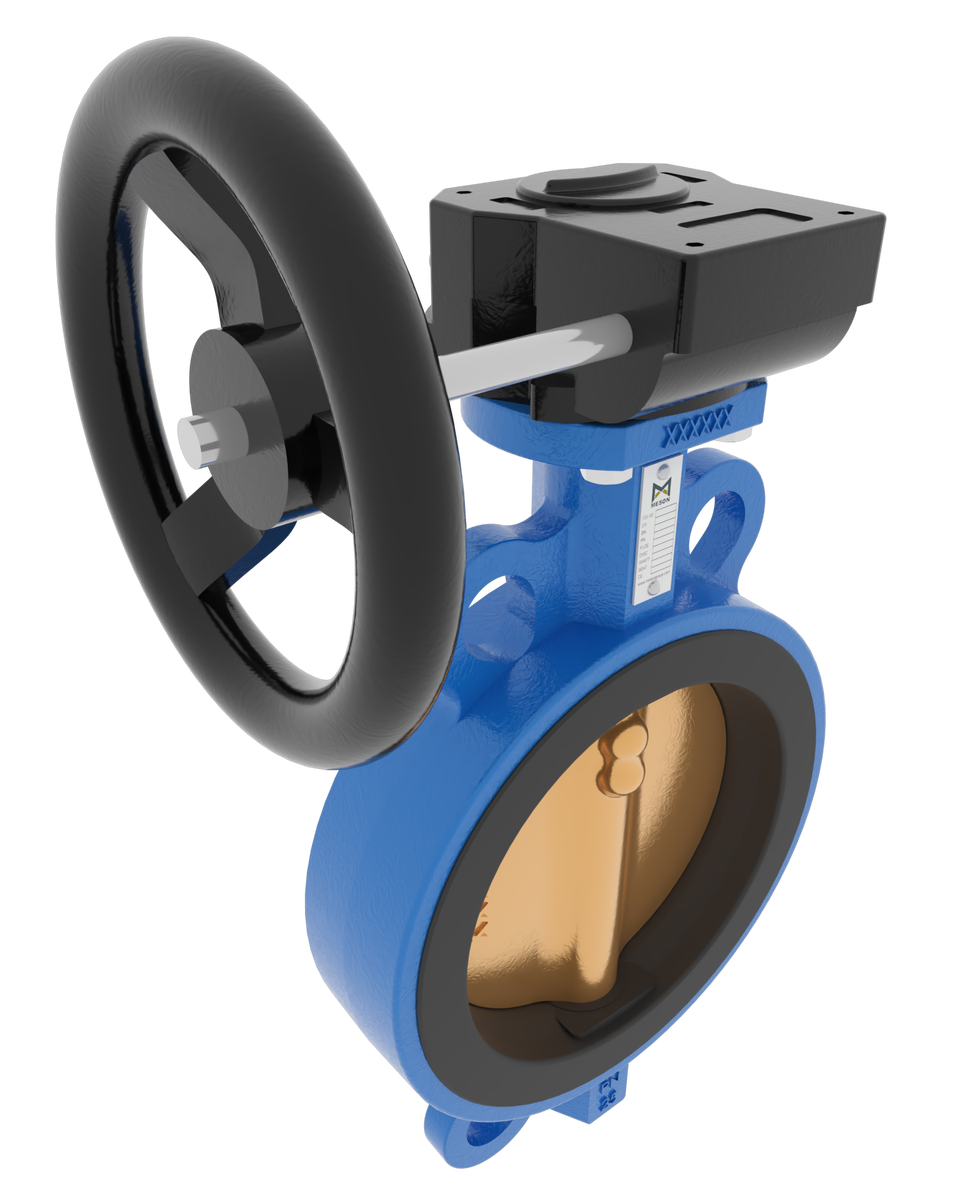

Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Filter products in
BUTTERFLY VALVE VULCANIZED LINER WAFER, GEARBOX, GGG40.3/C958/EPDM
Pressure rating
Connection
Size
Variants
| Item no. | Size | Pressure rating | Connection | L | |||
|---|---|---|---|---|---|---|---|
| M20451 | DN100 | PN16 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 52 | Go to item | ||
| M20454 | DN125 | PN16 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 56 | Go to item | ||
| M34822 | DN200 | PN16 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 60 | Go to item | ||
| M34823 | DN250 | PN16 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 68 | Go to item | ||
| 40-00002296 | DN250 | PN10 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 68 | Go to item | ||
| M34824 | DN300 | PN10 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 78 | Go to item | ||
| M20448 | DN350 | PN10 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 78 | Go to item | ||
| M96347 | DN400 | PN10 | PN6/PN10/PN16/PN25/ANSI150/JIS5K/JIS10K | 102 | Go to item |
