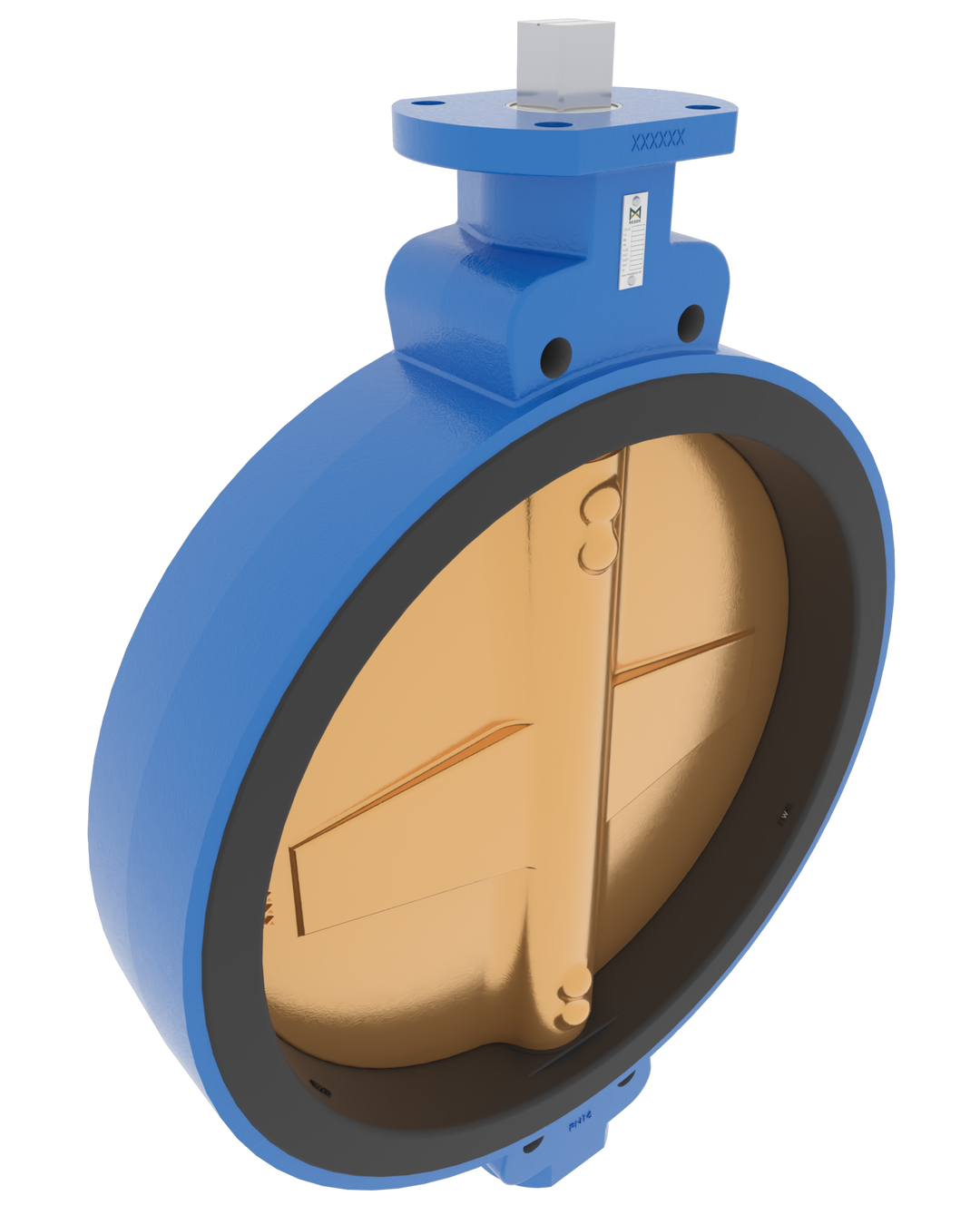

BUTTERFLY VALVE VULCANIZED LINER SEMI LUG, BARE STEM, DN450, PN10, GGG40.3/C958/EPDM
Item No.: M35249Range No.: 704-A8N
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Material 1
Ductile Iron
Material 2
Copper Alloy
Material 3
EPDM
Actuation
Bare Stem Parallell
Pressure rating
PN10
Connection
PN10
Size
DN450
Standard
DIN
Design code
EN 593
Inspection standard
EN 12266
Face to face standard
EN 558, series 20
Min temp Op / peak
-25°C / -35°C
Max temp Op / peak
+100°C / +125°C
Item number
M35249
Item number prod
BF03524900
Item ID
704-1650
Model number
701701
