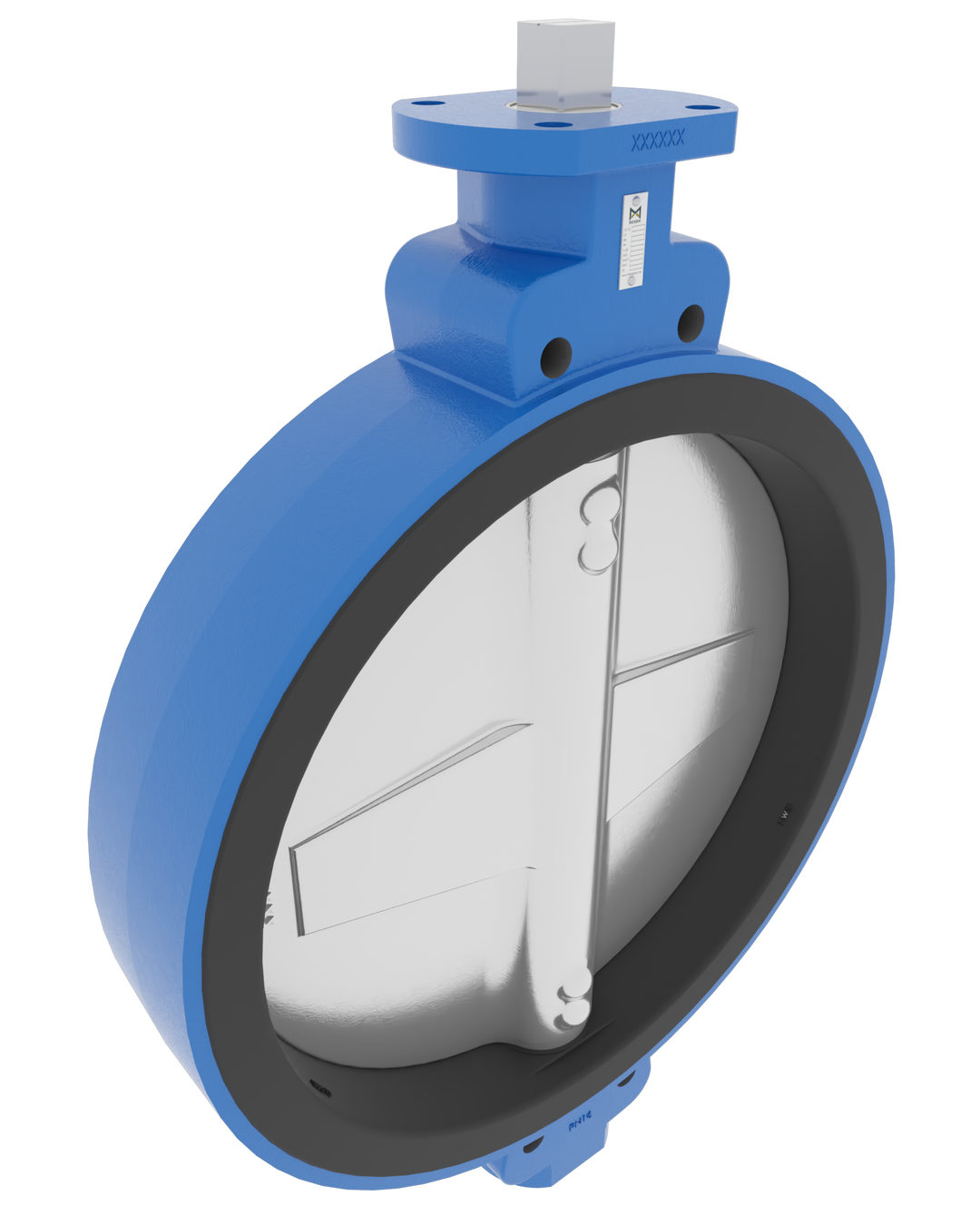

BUTTERFLY VALVE VULCANIZED LINER SEMI LUG, BARE STEM, DN500, PN10, GGG40.3/1.4469/EPDM
Item No.: 40-00002363Range No.: 704-A8H
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Material 1
Ductile Iron
Material 2
Stainless Steel
Material 3
EPDM
Actuation
Bare Stem Parallell
Pressure rating
PN10
Connection
PN10
Size
DN500
Standard
DIN
Face to face standard
EN 558, series 20
Min temp Op / peak
-25°C / -35°C
Max temp Op / peak
+100°C / +125°C
Item number
40-00002363
Item number prod
BF03960500
Item ID
704-1643
Model number
701801
