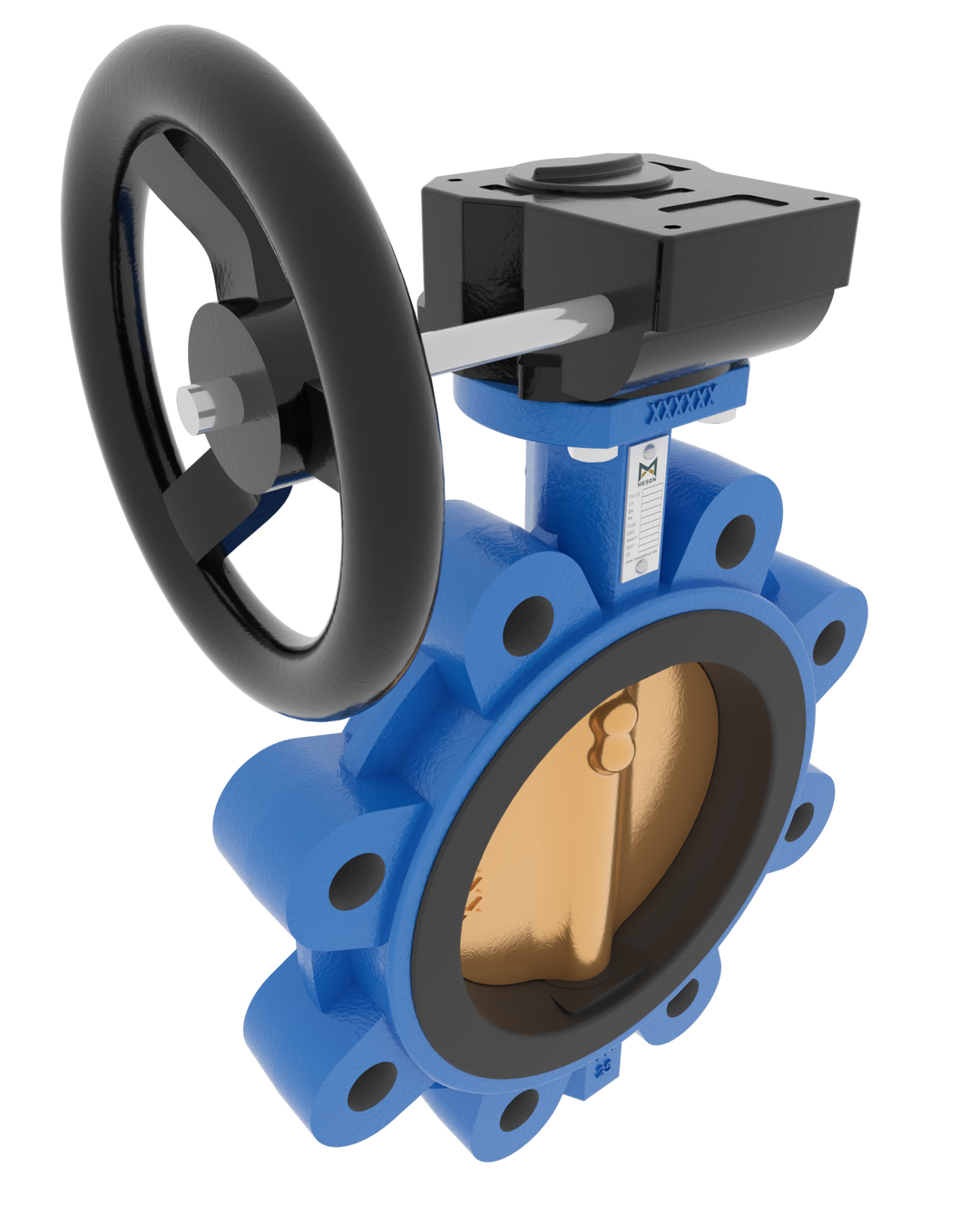

BUTTERFLY VALVE VULCANIZED LINER LUG, GEARBOX, DN400, PN10, GGG40.3/C958/EPDM
Item No.: M34180Range No.: 701-A3A
Nodular Cast Iron body, vulcanized liner lugged type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Material 1
Ductile Iron
Material 2
Copper Alloy
Material 3
EPDM
Actuation
Gearbox
Pressure rating
PN10
Connection
PN10
Size
DN400
Standard
DIN
Face to face standard
EN 558, series 20
Min temp Op / peak
-25°C / -35°C
Max temp Op / peak
+100°C / +125°C
Item number
M34180
Item number prod
BF03418000
Item ID
701-0607
Model number
711701
