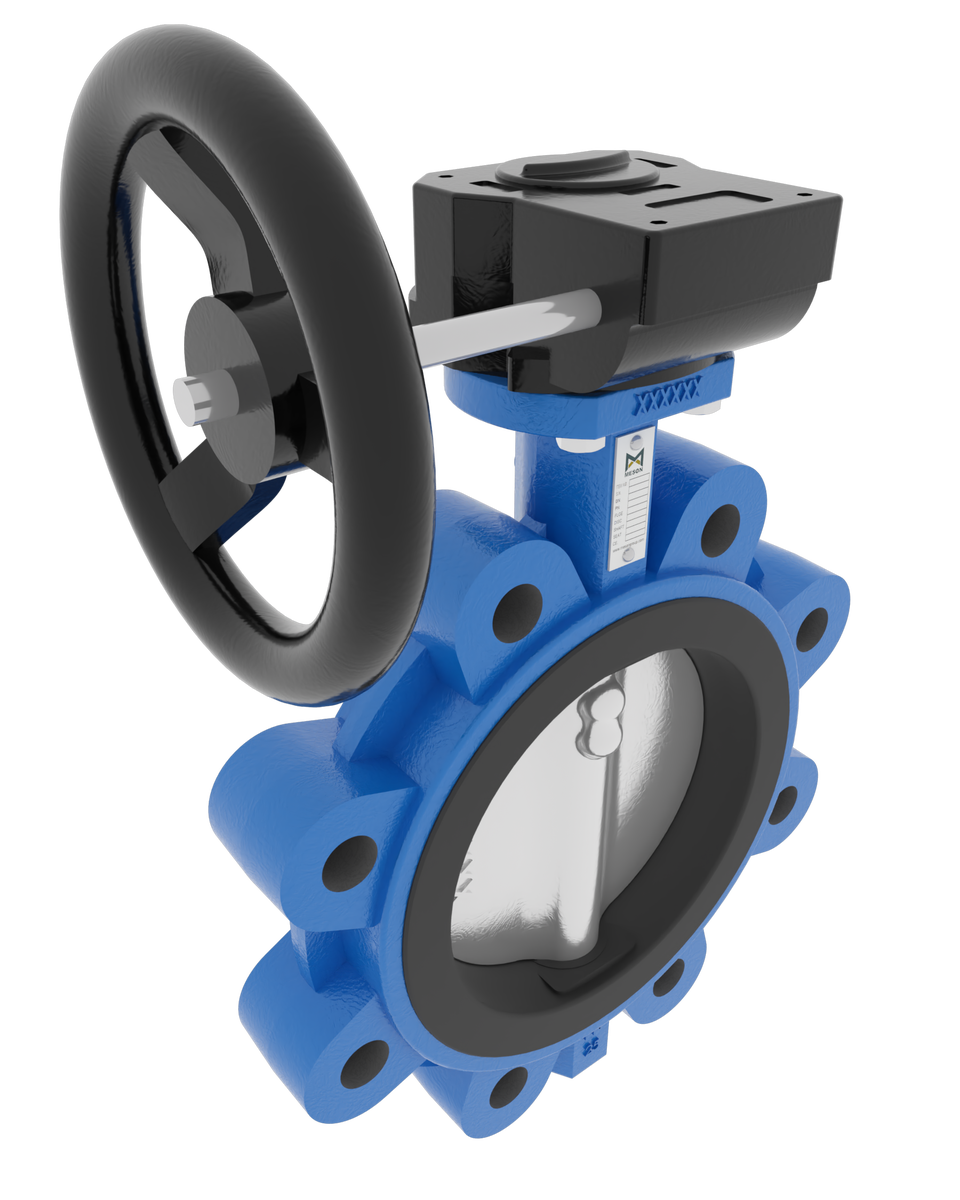

BUTTERFLY VALVE VULCANIZED LINER LUG, GEARBOX, GGG40.3/1.4469/EPDM
Range No.: 701-A2Q
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Filter products in
BUTTERFLY VALVE VULCANIZED LINER LUG, GEARBOX, GGG40.3/1.4469/EPDM
Pressure rating
Connection
Size
Variants
| Item no. | Size | Pressure rating | Connection | L | |||
|---|---|---|---|---|---|---|---|
| M95479 | DN200 | PN10 | PN10 | 60 | Go to item | ||
| M95480 | DN250 | PN10 | PN10 | 68 | Go to item | ||
| M95481 | DN300 | PN10 | PN10 | 78 | Go to item | ||
| M95482 | DN350 | PN10 | PN10 | 78 | Go to item | ||
| M95483 | DN400 | PN10 | PN10 | 102 | Go to item | ||
| M95484 | DN450 | PN10 | PN10 | 114 | Go to item | ||
| M95485 | DN500 | PN10 | PN10 | 127 | Go to item | ||
| M95486 | DN600 | PN10 | PN10 | 154 | Go to item |
