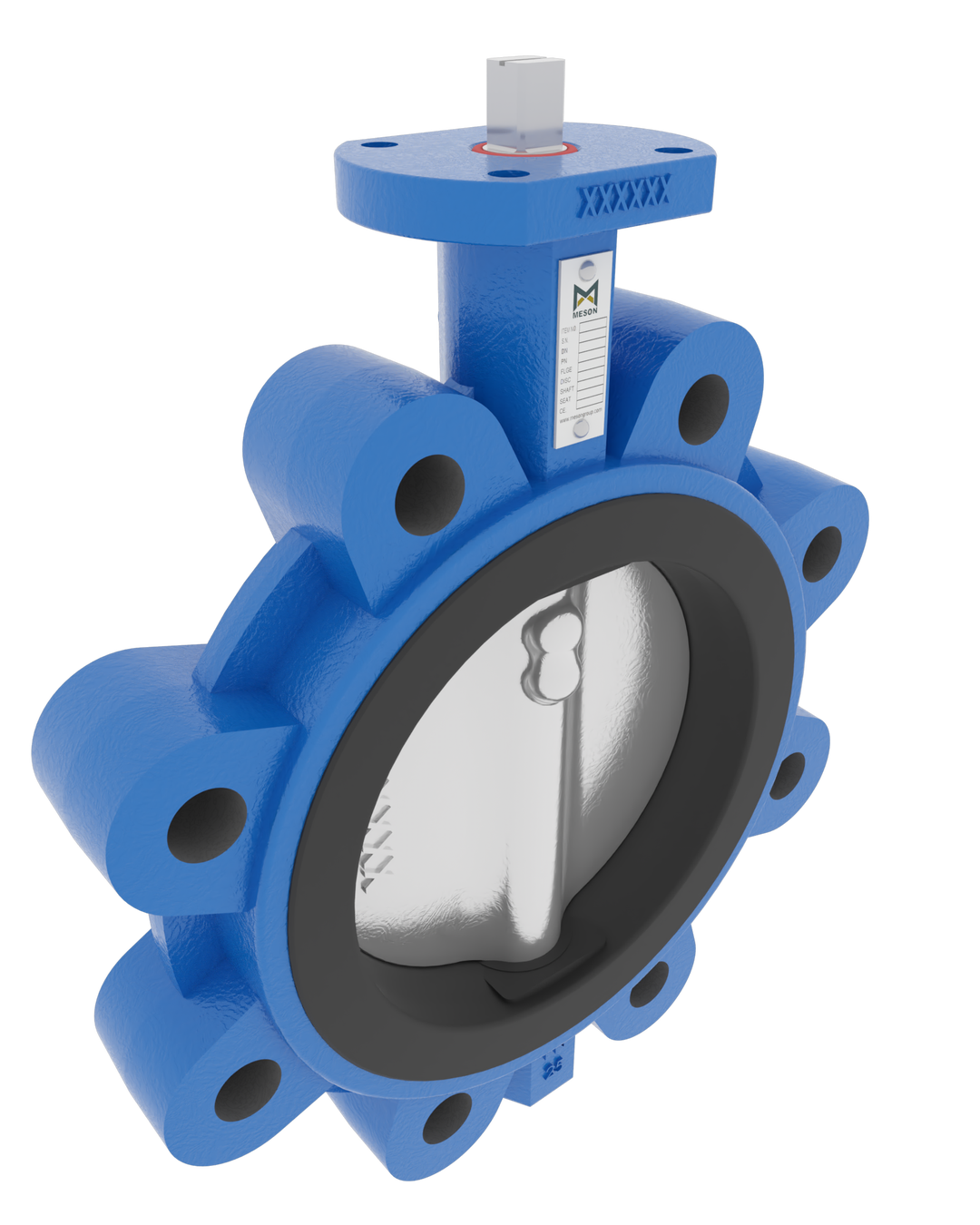

BUTTERFLY VALVE VULCANIZED LINER LUG, BARE STEM, SPEC TOP FL./SPINDLE, DN600, PN10, GGG40.3/1.4469/EPDM
Item No.: 40-00003046Range No.: 701-A2O
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Material 1
Ductile Iron
Material 2
Stainless Steel
Material 3
EPDM
Actuation
Bare Stem Parallell
Item characteristics
Special Top Flange/Spindle
Pressure rating
PN10
Connection
PN10
Size
DN600
Standard
DIN
Face to face standard
EN 558, series 20
Min temp Op / peak
-25°C / -35°C
Max temp Op / peak
+100°C / +125°C
Item number
40-00003046
Item ID
701-3756
Model number
711801
