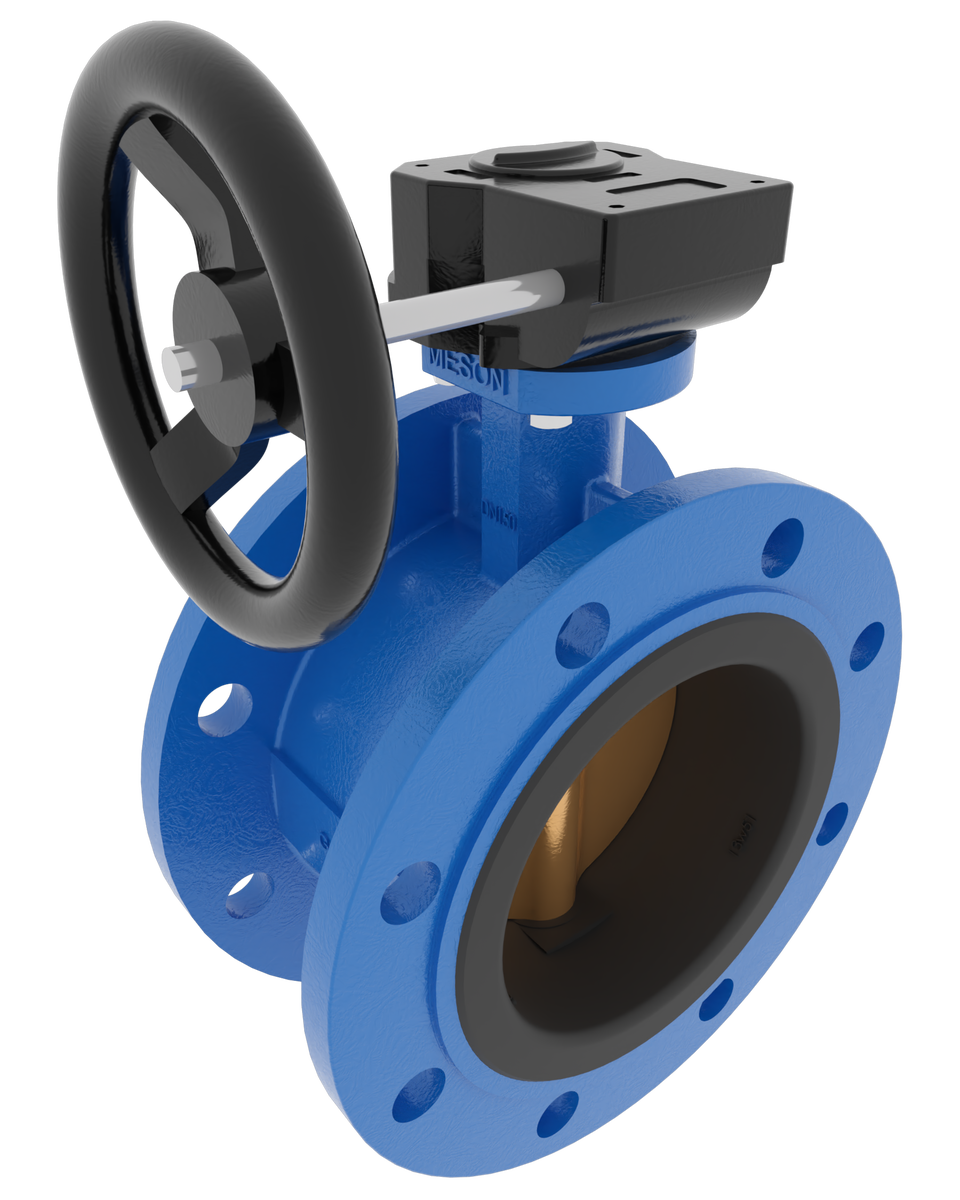

BUTTERFLY VALVE VULCANIZED LINER DOUBLE FLANGED, GEARBOX, GGG40.3/C958/NBR
Range No.: 703-A5W
Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Filter products in
BUTTERFLY VALVE VULCANIZED LINER DOUBLE FLANGED, GEARBOX, GGG40.3/C958/NBR
Pressure rating
Connection
Size
Variants
| Item no. | Size | Pressure rating | Connection | L | |||
|---|---|---|---|---|---|---|---|
| M20133 | DN50 | PN16 | PN16 | Go to item | |||
| M34404 | DN100 | PN16 | PN16 | 127 | Go to item | ||
| M34405 | DN125 | PN16 | PN16 | Go to item | |||
| M36201 | DN150 | PN16 | PN16 | 140 | Go to item | ||
| 40-00003164 | DN250 | PN16 | PN16 | Go to item | |||
| M36202 | DN200 | PN10 | PN10 | 152 | Go to item | ||
| M36203 | DN250 | PN10 | PN10 | 165 | Go to item | ||
| M36204 | DN300 | PN10 | PN10 | 178 | Go to item | ||
| M36205 | DN350 | PN10 | PN10 | 190 | Go to item | ||
| M36206 | DN400 | PN10 | PN10 | 216 | Go to item | ||
| M36207 | DN450 | PN10 | PN10 | 222 | Go to item | ||
| M36208 | DN500 | PN10 | PN10 | 229 | Go to item | ||
| M36209 | DN600 | PN10 | PN10 | 267 | Go to item | ||
| 40-00003163 | DN1000 | PN6 | PN10 | 410 | Go to item |
