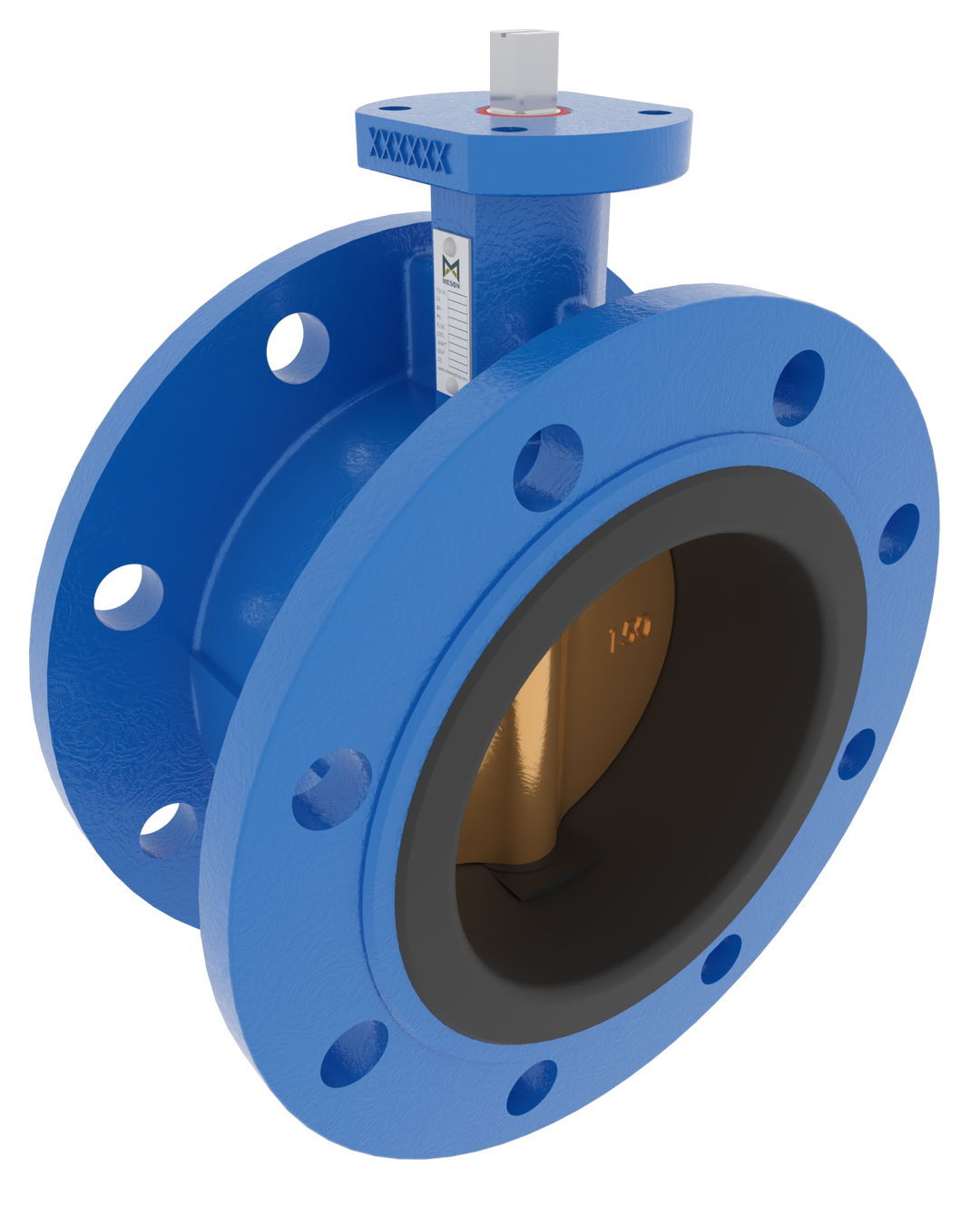

BUTTERFLY VALVE VULCANIZED LINER DOUBLE FLANGED, BARE STEM, DN65, PN16, GGG40.3/C958/NBR
Item No.: M34674Range No.: 703-A5U
Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
Material 1
Ductile Iron
Material 2
Copper Alloy
Material 3
NBR
Actuation
Bare Stem Parallell
Pressure rating
PN16
Connection
PN16
Size
DN65
Standard
DIN
Face to face standard
EN 558, series 13
Min temp Op / peak
-15°C / -25°C
Max temp Op / peak
+80°C / +95°C
Item number
M34674
Item number prod
BF03467400
Item ID
703-1180
IMPA Number
756302
Model number
730702
