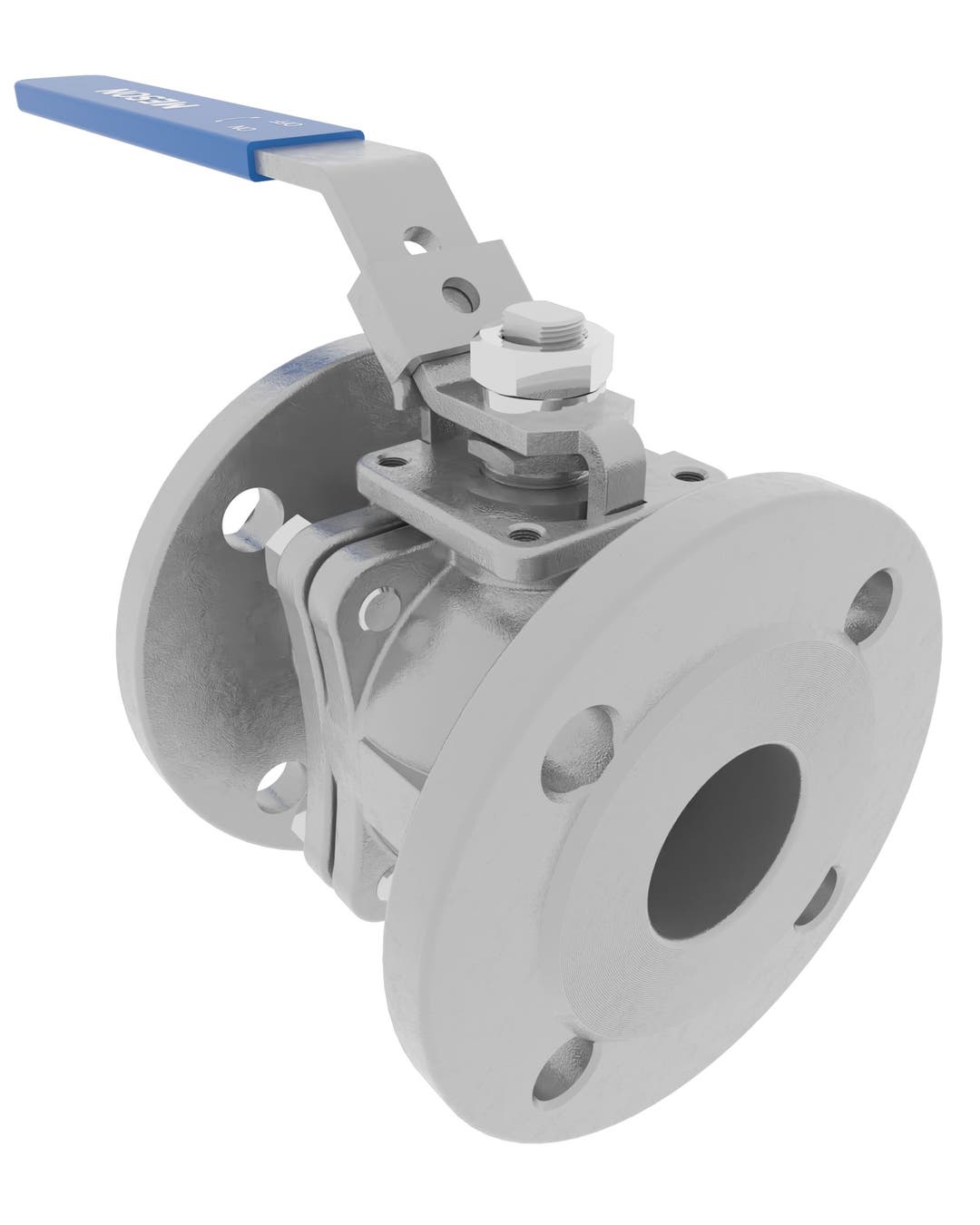

BALL VALVE 2-PCE FLANGED, NON-DIRECT, LEVER, DN100, PN16, GS-C25/AISI304/PTFE
Item No.: 20-00000321Range No.: 500-L1C
Two piece, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
Material 1
Cast Steel
Material 2
Stainless Steel
Material 3
Polymer Based
Execution
Non-Direct
Actuation
Lever
Pressure rating
PN16
Connection
PN16
Size
DN100
Standard
DIN
Design code
ASME B16.34
Inspection standard
EN 12266
Face to face standard
EN 558, series 14
Item number
20-00000321
Item ID
500-3260
Model number
445164
