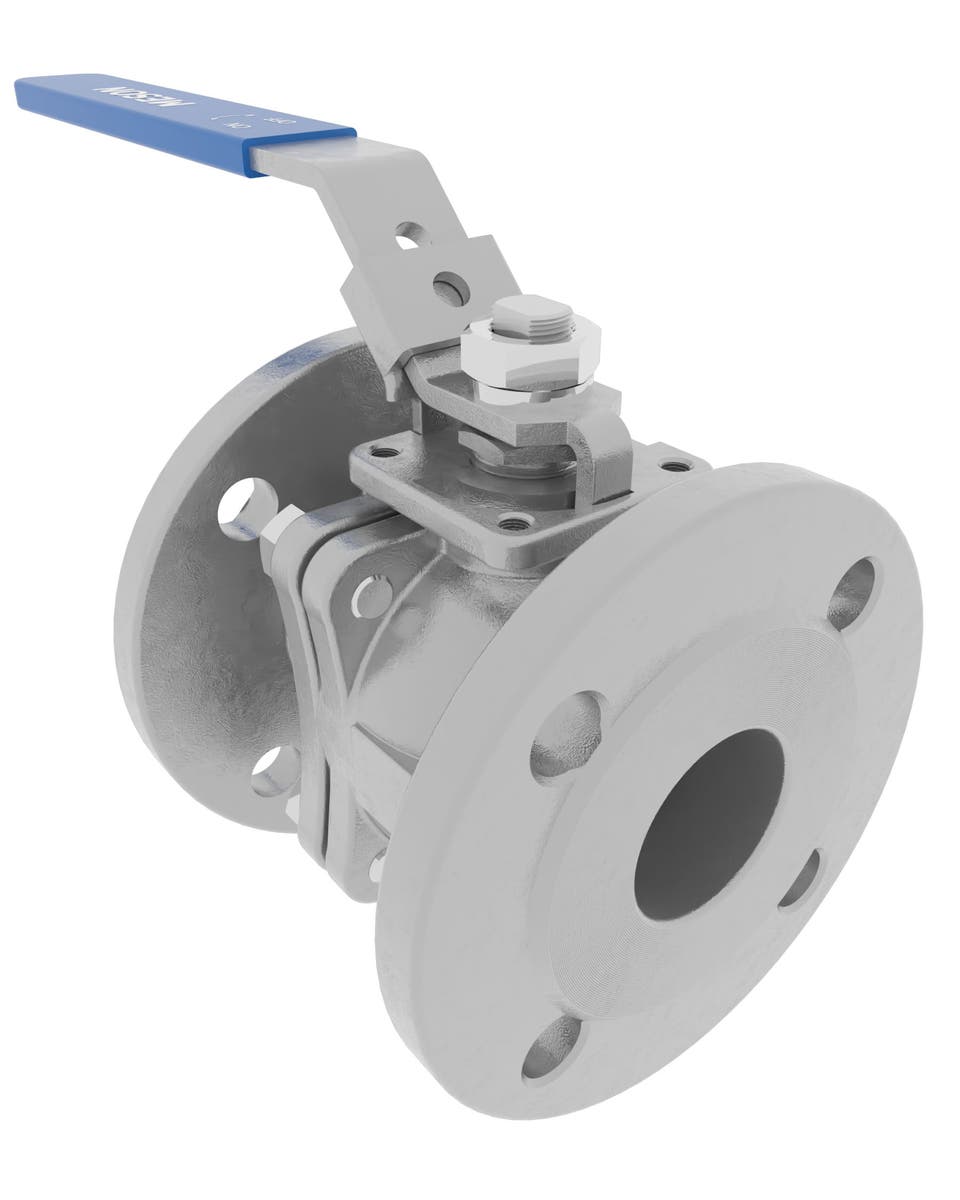

BALL VALVE 2-PCE FLANGED, DIRECT, LEVER, AISI316/AISI316/PTFE
Range No.: 500-L1H
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
Filter products in
BALL VALVE 2-PCE FLANGED, DIRECT, LEVER, AISI316/AISI316/PTFE
Pressure rating
Connection
Size
Variants
| Item no. | Size | Pressure rating | Connection | L | |||
|---|---|---|---|---|---|---|---|
| 20-00000965 | DN15 | PN40 | PN40 | 115 | Go to item | ||
| 20-00000967 | DN20 | PN40 | PN40 | 120 | Go to item | ||
| 20-00000934 | DN25 | PN40 | PN40 | 125 | Go to item | ||
| 20-00000969 | DN32 | PN40 | PN40 | 130 | Go to item | ||
| 20-00000936 | DN40 | PN40 | PN40 | 140 | Go to item | ||
| 20-00000937 | DN50 | PN40 | PN40 | 150 | Go to item | ||
| 20-00000972 | DN65 | PN40 | PN40 | 170 | Go to item | ||
| 20-00000939 | DN80 | PN40 | PN40 | 180 | Go to item | ||
| 20-00001051 | DN100 | PN40 | PN40 | 190 | Go to item | ||
| 20-00000973 | DN125 | PN40 | PN40 | 325 | Go to item | ||
| 20-00000940 | DN150 | PN40 | PN40 | 350 | Go to item | ||
| 20-00000929 | DN65 | PN16 | PN16 | 170 | Go to item | ||
| 20-00001050 | DN80 | PN16 | PN16 | 180 | Go to item | ||
| 20-00000930 | DN100 | PN16 | PN16 | 190 | Go to item | ||
| 20-00000932 | DN125 | PN16 | PN16 | 325 | Go to item | ||
| 20-00000933 | DN150 | PN16 | PN16 | 350 | Go to item | ||
| 20-00000962 | DN200 | PN16 | PN16 | 400 | Go to item |
