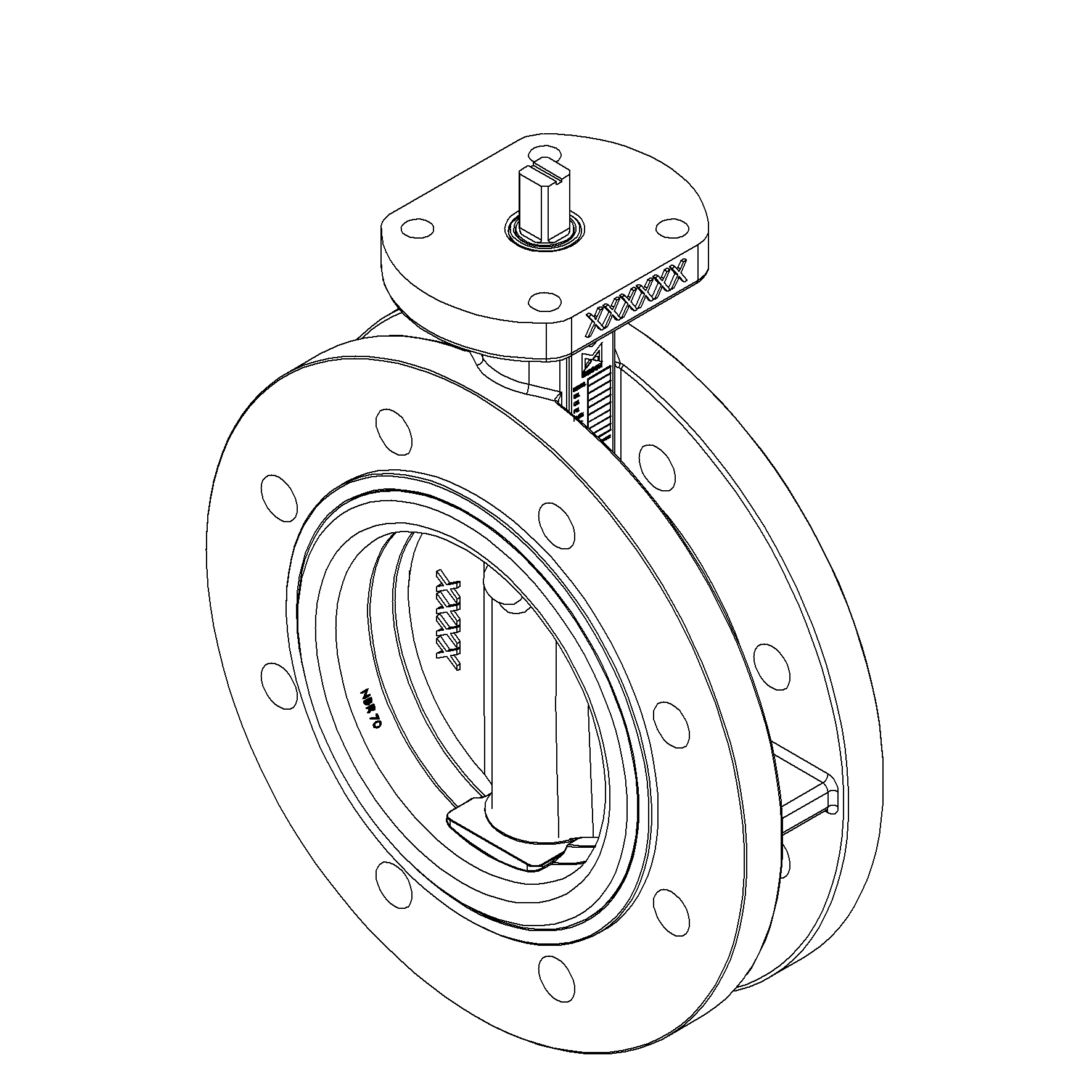

BUTTERFLY VALVE VULCANIZED LINER U-TYPE, GEARBOX, DN450, JIS5K, GGG40.3/C958/NBR
Item No.: 40-00003244Range No.: 705-A8T
Nodular cast iron body, vulcanized liner double flanged butterfly valve with AlBr disc. Centric free stem with standardized pattern for actuator mounting.
Material 1
Ductile Iron
Material 2
Copper Alloy
Material 3
NBR
Actuation
Gearbox
Pressure rating
JIS5K
Connection
JIS5K
Size
DN450
Standard
JIS
Design code
JIS F7408
Inspection standard
JIS F7400
Face to face standard
JIS B2002
Min temp Op / peak
-15°C / -25°C
Max temp Op / peak
+80°C / +95°C
Item number
40-00003244
Item ID
705-1741
Model number
750709
